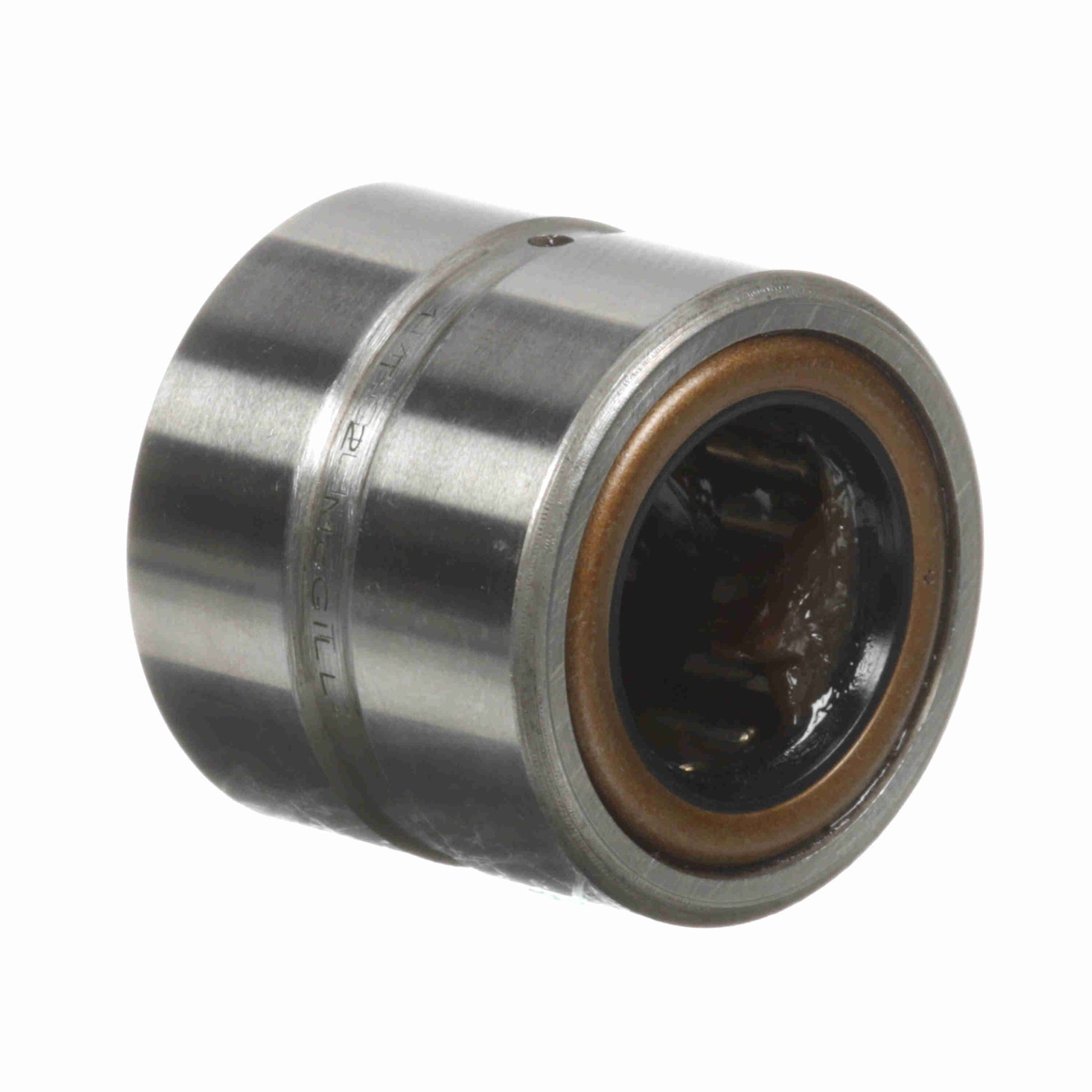

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 10 SS
General Specifications
| UPC: | 726166061203 | Weight: | 0.15 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 0.6250 in |
| Outside Diameter - Inch: | 1.125 in | Hole Diameter: | 0.079 |
| Housing & Shaft Fillet (in): | 0.025 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Bore Type: | Straight | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Static Load Rating (lb): | 6,400 lb | Dynamic Load Rating: | 3,400 |
| Sealed: | Sealed - Both Sides | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Duplexing: | No |
| Speed (Max) Grease: | 6,100 | Related Inner Ring: | MI 6 |
| Flanges: | No Flanges | Standard Met: | ABMA, ISO |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
