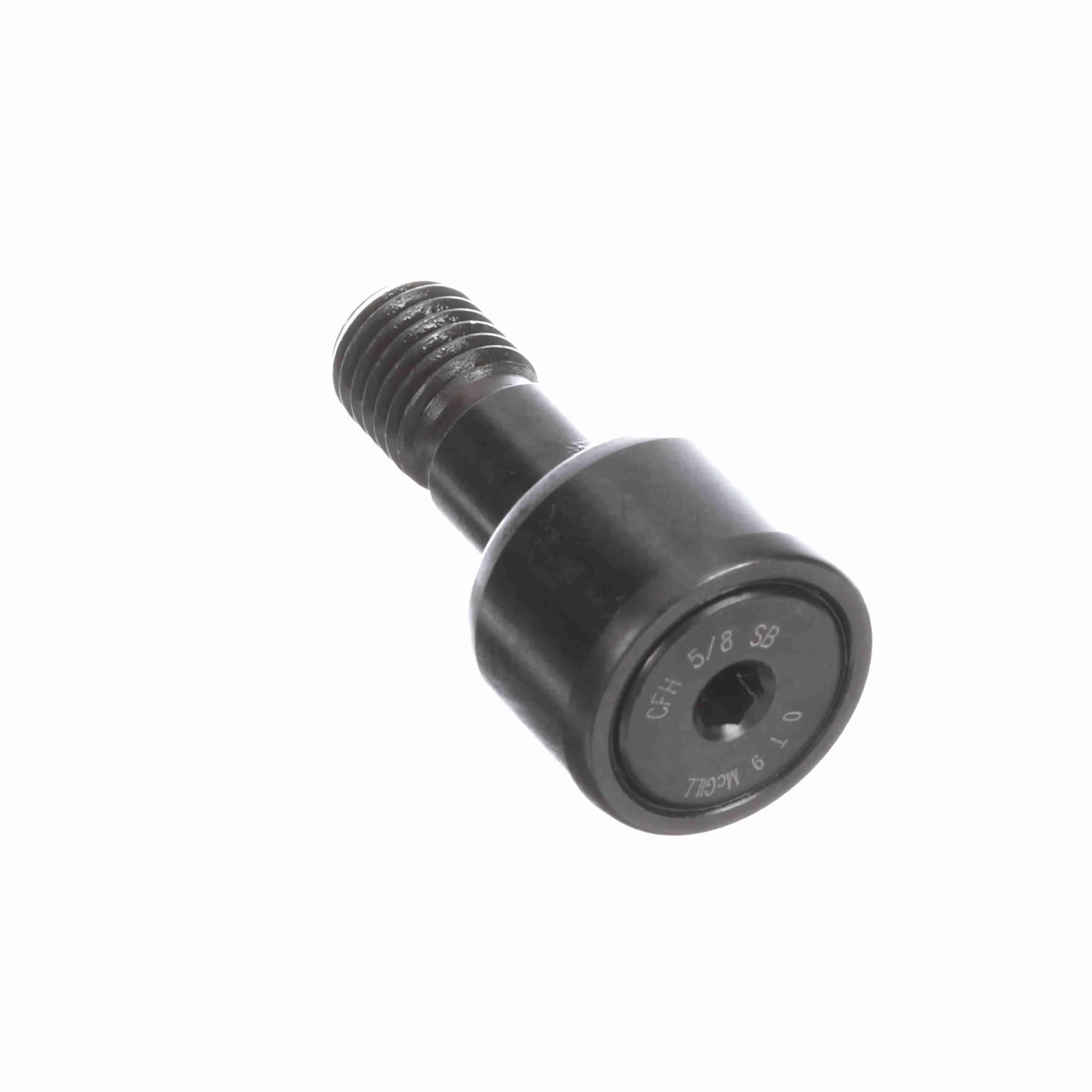

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CFH 5/8 SB
General Specifications
| UPC: | 726166031145 | Weight: | 0.06 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 5/16-24 | Roller Width - Inch: | 0.4375 |
| Minimum Thread Length - Inch: | 0.3125 | Stud Diameter - Inch: | 0.3125 |
| Roller Diameter - Inch: | 0.625 | Stud Length - Inch: | 0.75 |
Technical Specifications
| Limiting Speed: | 9,200 | Adjustment: | None |
| Sealing: | Sealed | O.D. Configuration: | Cylindrical |
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Heavy Stud | Dynamic Load Rating - lb: | 955 |
| Clamping Torque - in-lbf: | 90 | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Roller Shape: | Cylindrical |
| Static Load Rating: | 2,480 | Lubrication Hole Location: | Stud side |
