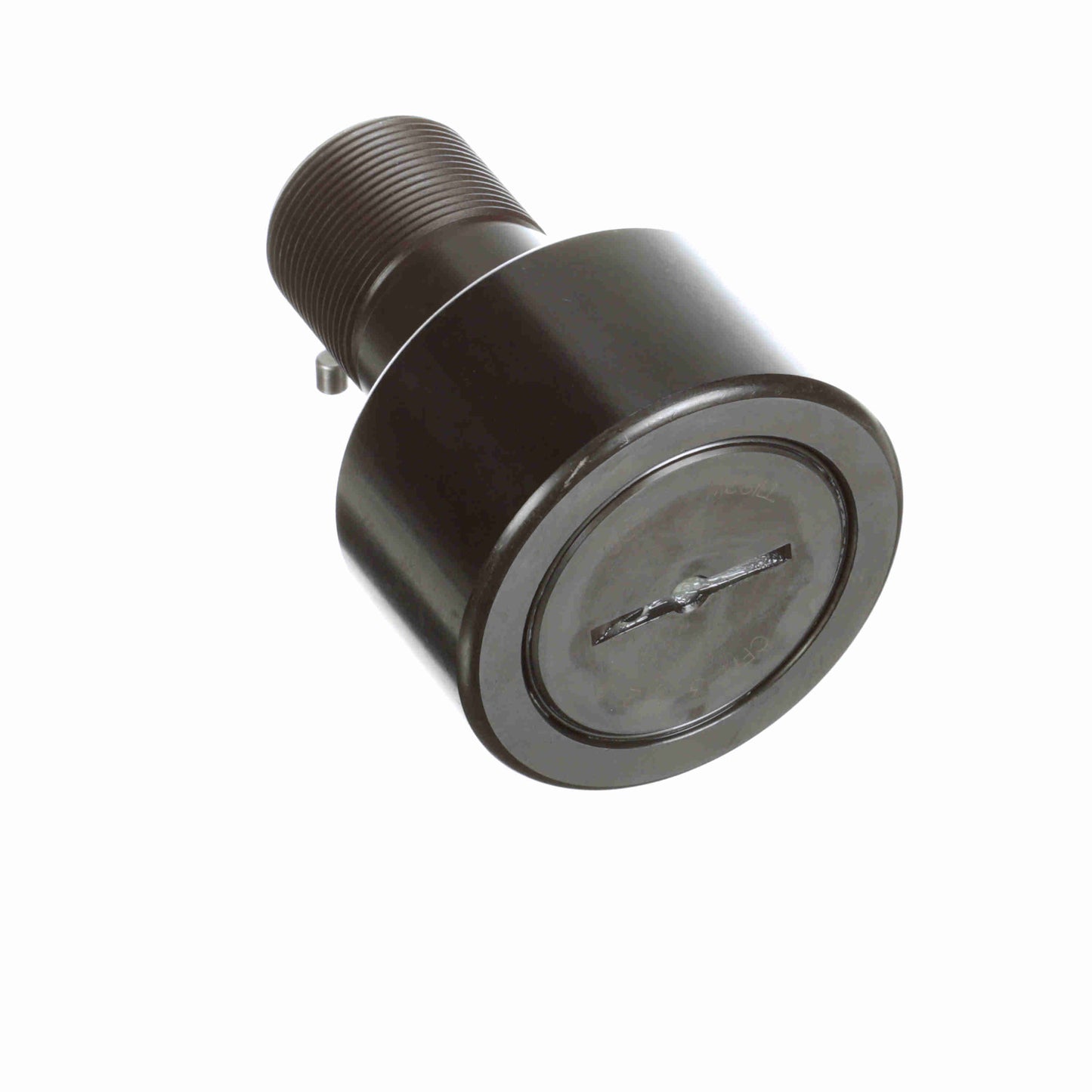

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CFH 3 1/2 S
General Specifications
| UPC: | 726166039974 | Weight: | 6.83 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 3.5 Inches |
| Packaged Height: | 5.06 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1 3/4-12 | Minimum Thread Length - Inch: | 1.375 |
| Roller Diameter - Inch: | 3.5 | Stud Diameter - Inch: | 1.75 |
| Lubrication Fitting Size - Metric: | 1/4 | Stud Length - Inch: | 2.75 |
| Oil Hole Center - Inch: | 0.688 | Roller Width - Inch: | 2 |
| Lubrication Fitting Size - Inch: | 1/4 | Oil Hole Diameter - Inch: | 0.125 |
Technical Specifications
| Sealing: | Sealed | Adjustment: | None |
| Hex/Slot: | Screwdriver Slot | O.D. Configuration: | Cylindrical |
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 820 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating - lb: | 22,800 | Stud Type: | Heavy Stud |
| Clamping Torque - in-lbf: | 5,000 | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 45,700 |
| Roller Shape: | Cylindrical |
