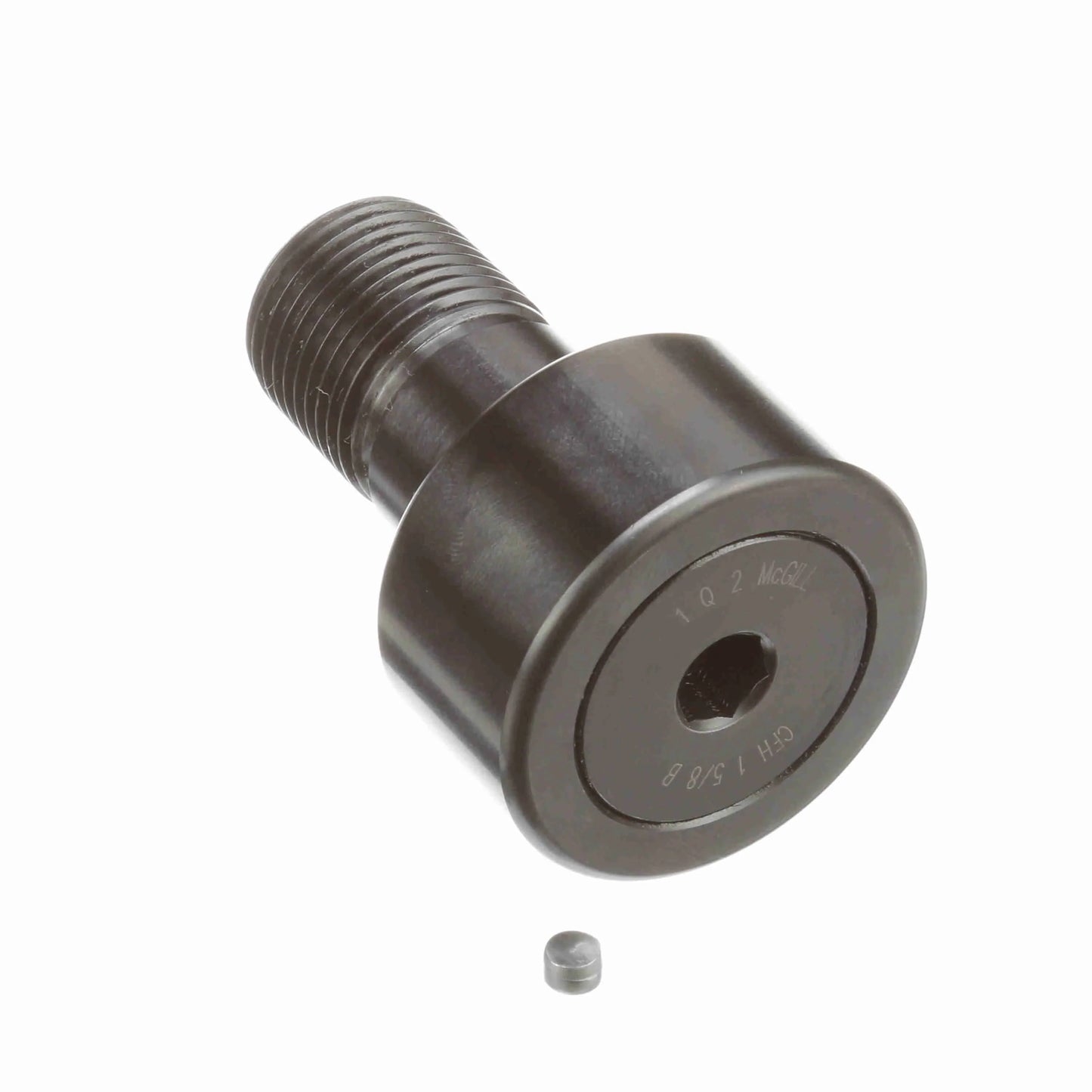

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - CFH 1 5/8 B
General Specifications
| UPC: | 726166036201 | Weight: | 0.75 LB |
| Packaged Length: | 1.68 Inches | Packaged Width: | 1.68 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 7/8-14 | Oil Hole Center - Inch: | 0.375 |
| Minimum Thread Length - Inch: | 0.75 | Lubrication Fitting Size - Inch: | 3/16 |
| Stud Diameter - Inch: | 0.875 | Lubrication Fitting Size - Metric: | 3/16 |
| Stud Length - Inch: | 1.5 | Roller Diameter - Inch: | 1.625 |
| Oil Hole Diameter - Inch: | 0.094 | Roller Width - Inch: | 0.875 |
Technical Specifications
| Sealing: | Unsealed | Rolling Element: | Needle Roller - Full Complement |
| Hex/Slot: | Hex Hole | Limiting Speed: | 2,350 |
| O.D. Configuration: | Cylindrical | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating - lb: | 4,840 | Clamping Torque - in-lbf: | 1,500 |
| Tolerance Class: | P0 Equivalent | Stud Type: | Heavy Stud |
| Roller Shape: | Cylindrical | Platform: | CAMROL® |
| Static Load Rating: | 11,200 |
