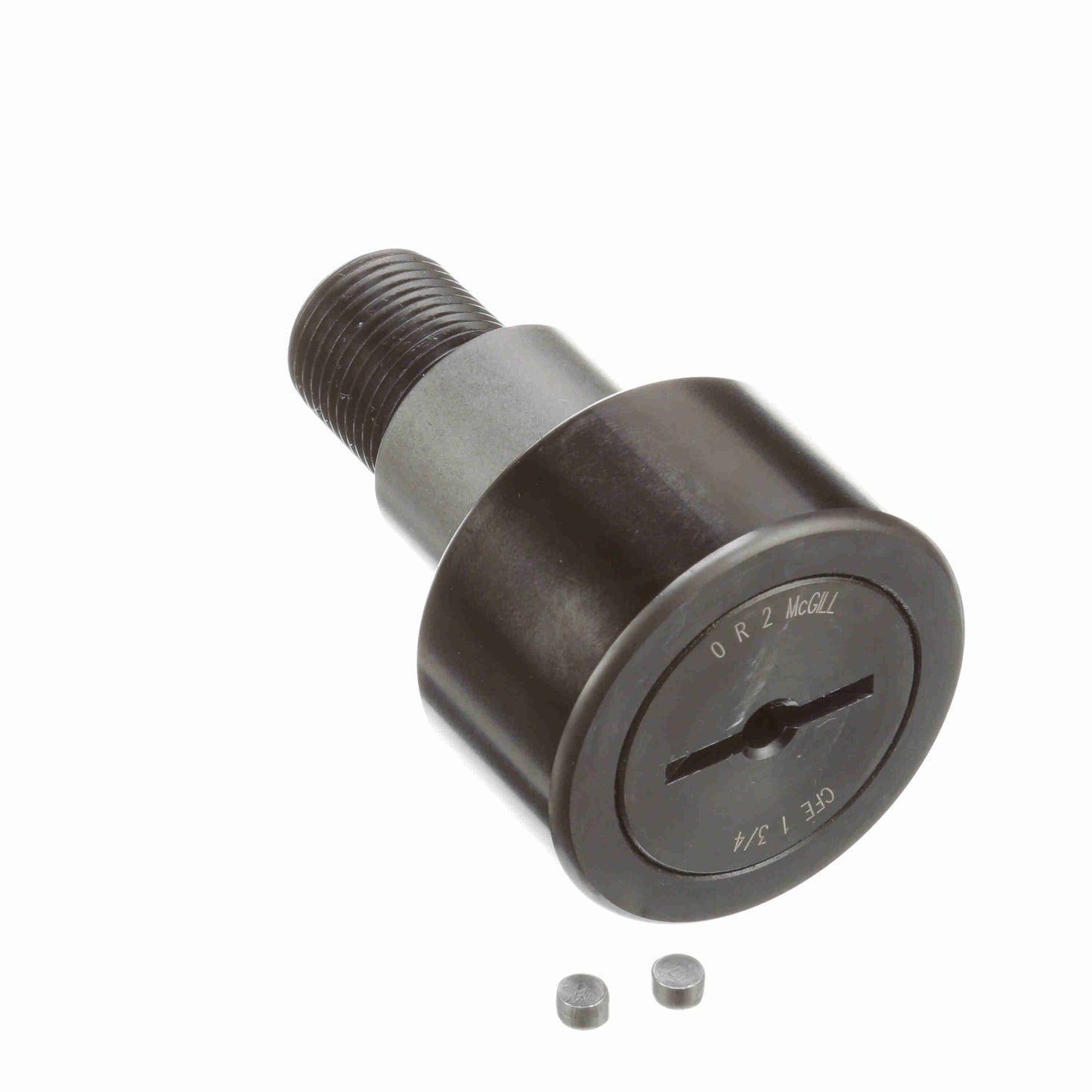

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - CFE 1 3/4
General Specifications
| UPC: | 726166081164 | Weight: | 0.93 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3/4-16 | Stud Length - Inch: | 1.75 |
| Lubrication Fitting Size - Inch: | 0.1875 | Lubrication Fitting Size - Metric: | 0.1875 |
| Bushing Diameter - Inch: | 1 | Roller Width - Inch: | 1 |
| Stud Diameter - Inch: | 0.75 | Eccentricity - Inch: | 0.03 |
| Roller Diameter - Inch: | 1.75 | Minimum Thread Length: | 0.875 |
Technical Specifications
| O.D. Configuration: | Cylindrical | Hex/Slot: | Screwdriver Slot |
| Sealing: | Unsealed | Adjustment: | Eccentric Bushing |
| Limiting Speed: | 2,200 | Dynamic Radial Rating: | 6,385 |
| Rolling Element: | Needle Roller - Full Complement | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 7,920 |
| Tolerance Class: | P0 Equivalent | Clamping Torque - in-lbf: | 1,250 |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud with Eccentric Bushing |
| Platform: | CAMROL® | Dynamic Load Rating - lb: | 6,385 |
| Lubrication Hole Location: | Stud side |
