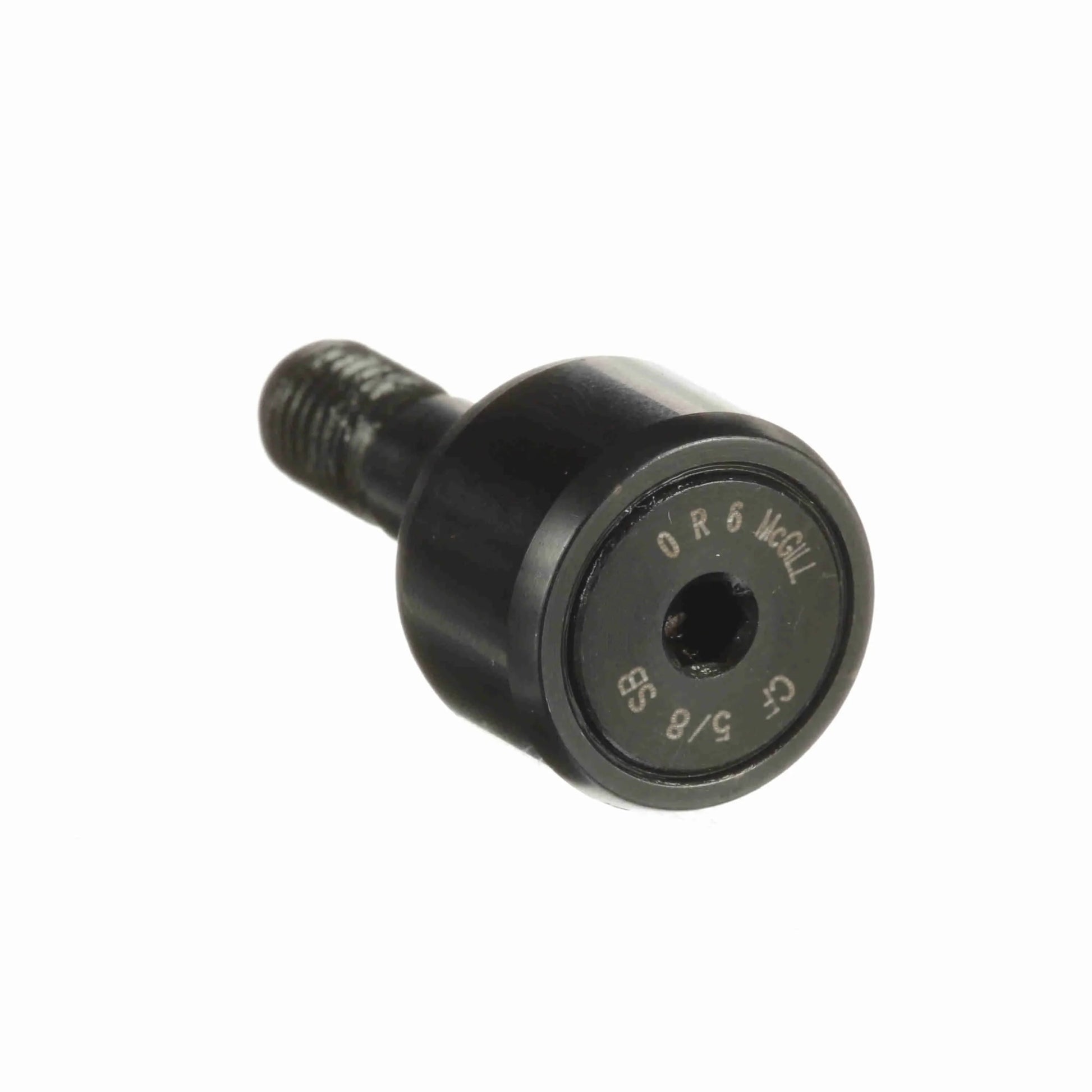

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 5/8 SB
General Specifications
| UPC: | 726166030797 | Weight: | 0.06 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1/4-28 | Stud Length - Inch: | 0.75 |
| Roller Width - Inch: | 0.4375 | Roller Diameter - Inch: | 0.625 |
| Minimum Thread Length: | 0.313 | Stud Diameter - Inch: | 0.25 |
| Hex Socket - Inch: | 0.125 |
Technical Specifications
| Dynamic Radial Rating: | 955 | Hex/Slot: | Hex Hole |
| Limiting Speed: | 9,200 | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Full Complement | Adjustment: | None |
| O.D. Configuration: | Cylindrical | Relubricatable: | No |
| Material: | Bearing Steel, Black Oxide Finish | Clamping Torque - in-lbf: | 35 |
| Stud Type: | Standard Stud | Dynamic Load Rating - lb: | 955 |
| Platform: | CAMROL® | Static Load Rating: | 600 |
| Roller Shape: | Cylindrical | Tolerance Class: | P0 Equivalent |
