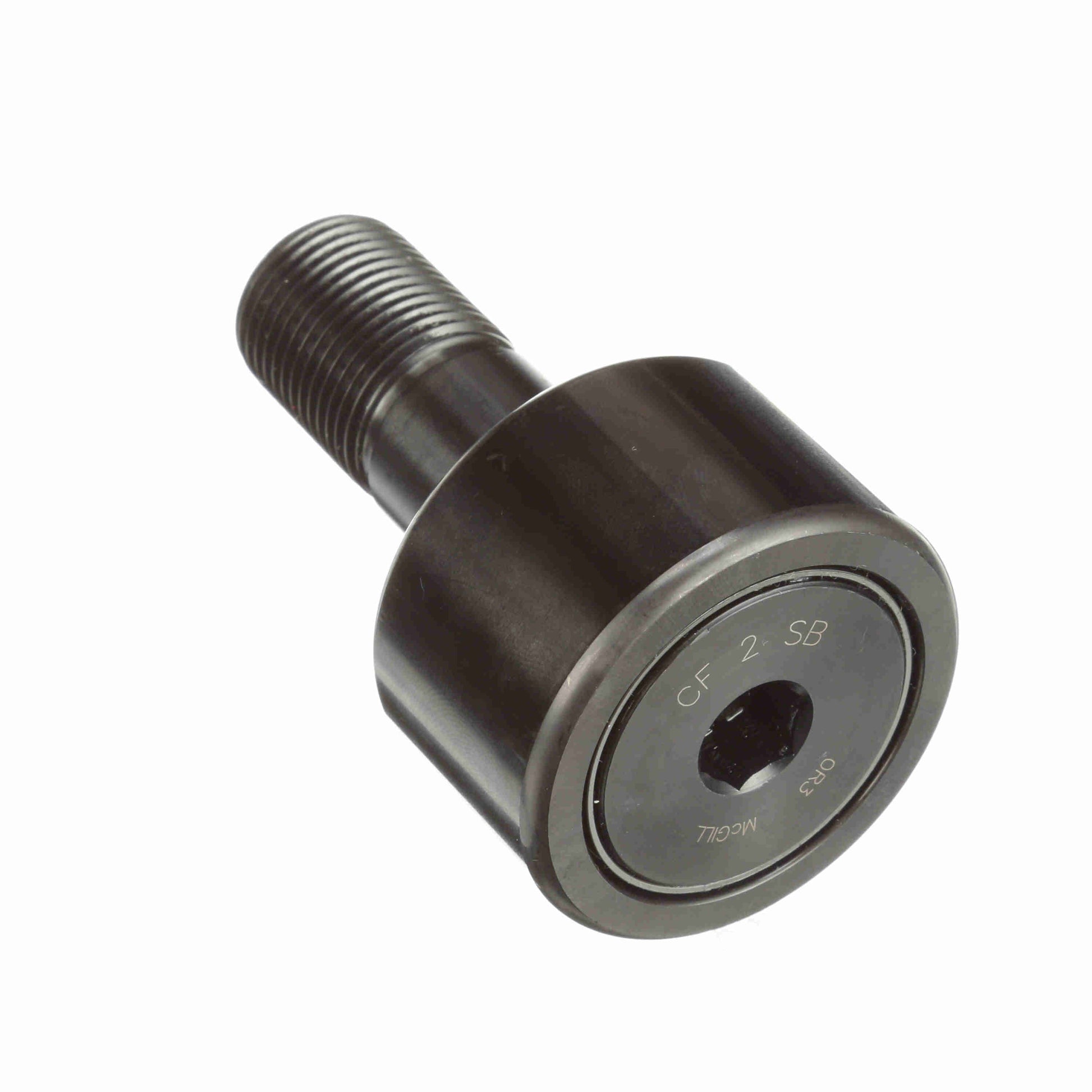

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 2 SB
General Specifications
| UPC: | 726166037338 | Weight: | 1.34 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 3.43 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 7/8-14 | Lubrication Fitting Size - Inch: | 0.1875 |
| Minimum Thread Length: | 1 | Lubrication Fitting Size - Metric: | 0.1875 |
| Hex Socket - Inch: | 0.4375 | Stud Diameter - Inch: | 0.875 |
| Roller Diameter - Inch: | 2 | Roller Width - Inch: | 1.25 |
| Stud Length - Inch: | 2 |
Technical Specifications
| Sealing: | Sealed | O.D. Configuration: | Cylindrical |
| Rolling Element: | Needle Roller - Full Complement | Adjustment: | None |
| Dynamic Radial Rating: | 8,090 | Hex/Slot: | Hex Hole |
| Limiting Speed: | 1,400 | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Dynamic Load Rating - lb: | 8,090 |
| Clamping Torque - in-lbf: | 1,500 | Roller Shape: | Cylindrical |
| Stud Type: | Standard Stud | Platform: | CAMROL® |
| Static Load Rating: | 8,200 | Tolerance Class: | P0 Equivalent |
