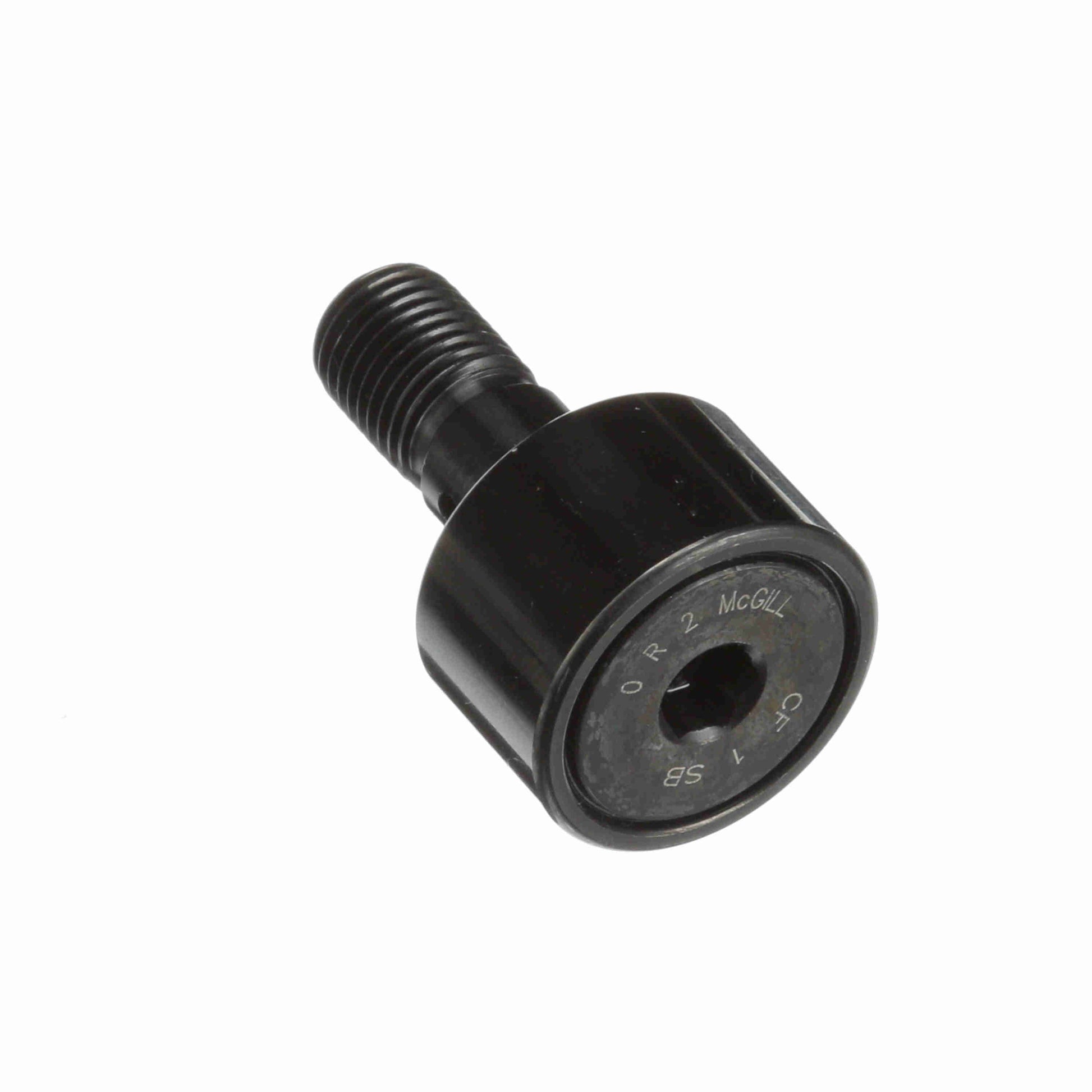

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 1 SB
General Specifications
| UPC: | 726166033187 | Weight: | 0.17 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 7/16-20 | Stud Length - Inch: | 1 |
| Roller Diameter - Inch: | 1 | Lubrication Fitting Size - Inch: | 0.1875 |
| Oil Hole Center - Inch: | 0.25 | Lubrication Fitting Size - Metric: | 0.1875 |
| Minimum Thread Length: | 0.5 | Hex Socket - Inch: | 0.25 |
| Oil Hole Diameter - Inch: | 0.094 | Stud Diameter - Inch: | 0.4375 |
| Roller Width - Inch: | 0.625 |
Technical Specifications
| Hex/Slot: | Hex Hole | O.D. Configuration: | Cylindrical |
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 4,800 |
| Adjustment: | None | Dynamic Radial Rating: | 2,225 |
| Sealing: | Sealed | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Cylindrical | Clamping Torque - in-lbf: | 250 |
| Static Load Rating: | 1,800 | Stud Type: | Standard Stud |
| Dynamic Load Rating - lb: | 2,225 | Platform: | CAMROL® |
