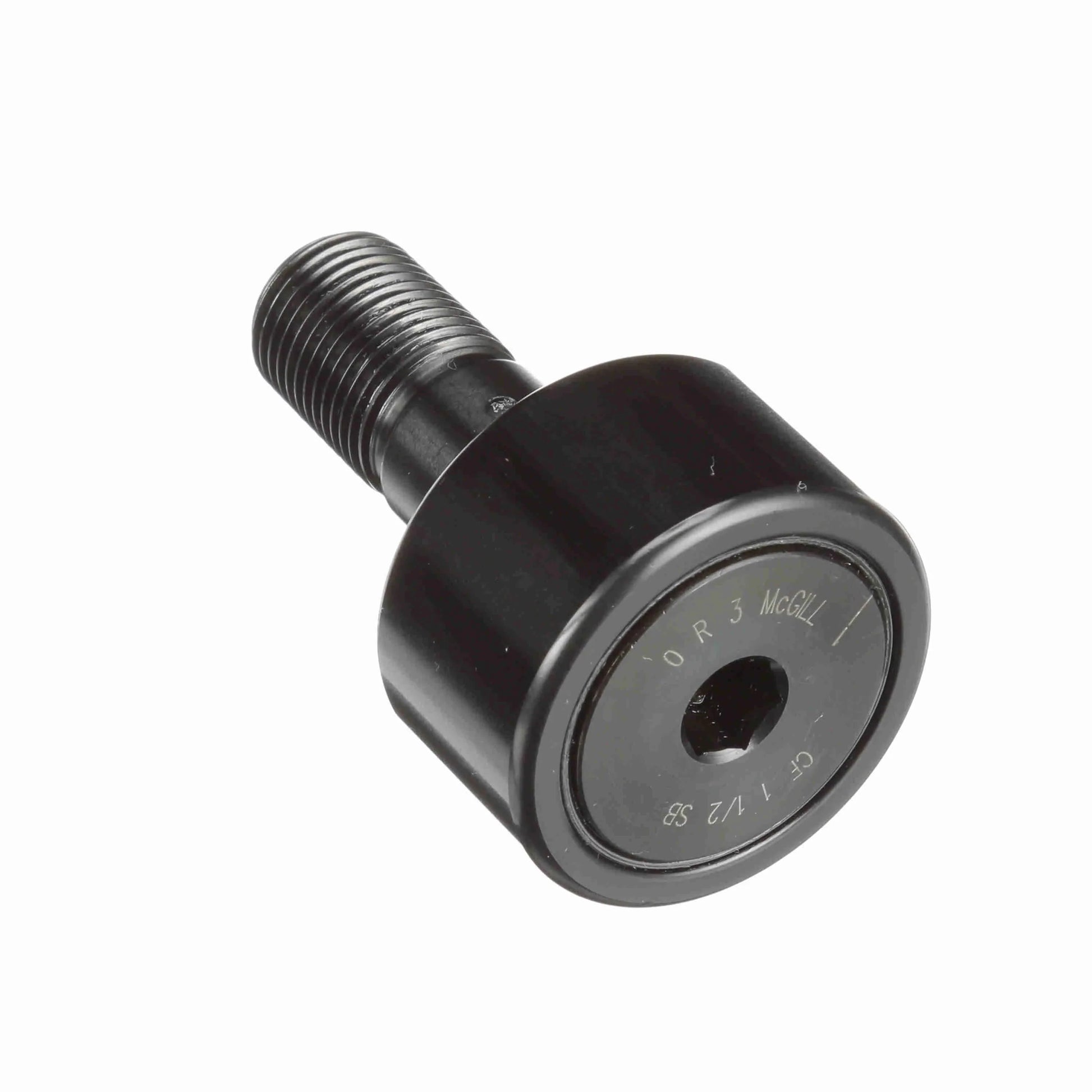

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 1 1/2 SB
General Specifications
| UPC: | 726166035471 | Weight: | 0.53 LB |
| Packaged Length: | 1.68 Inches | Packaged Width: | 1.68 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 5/8-18 | Lubrication Fitting Size - Metric: | 0.1875 |
| Lubrication Fitting Size - Inch: | 0.1875 | Oil Hole Diameter - Inch: | 0.094 |
| Roller Width - Inch: | 0.875 | Minimum Thread Length: | 0.75 |
| Hex Socket - Inch: | 0.3125 | Stud Length - Inch: | 1.5 |
| Oil Hole Center - Inch: | 0.375 | Stud Diameter - Inch: | 0.625 |
| Roller Diameter - Inch: | 1.5 |
Technical Specifications
| Dynamic Radial Rating: | 4,840 | Limiting Speed: | 2,500 |
| Adjustment: | None | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Roller Shape: | Cylindrical |
| Clamping Torque - in-lbf: | 650 | Dynamic Load Rating - lb: | 4,840 |
| Stud Type: | Standard Stud | Static Load Rating: | 4,000 |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
