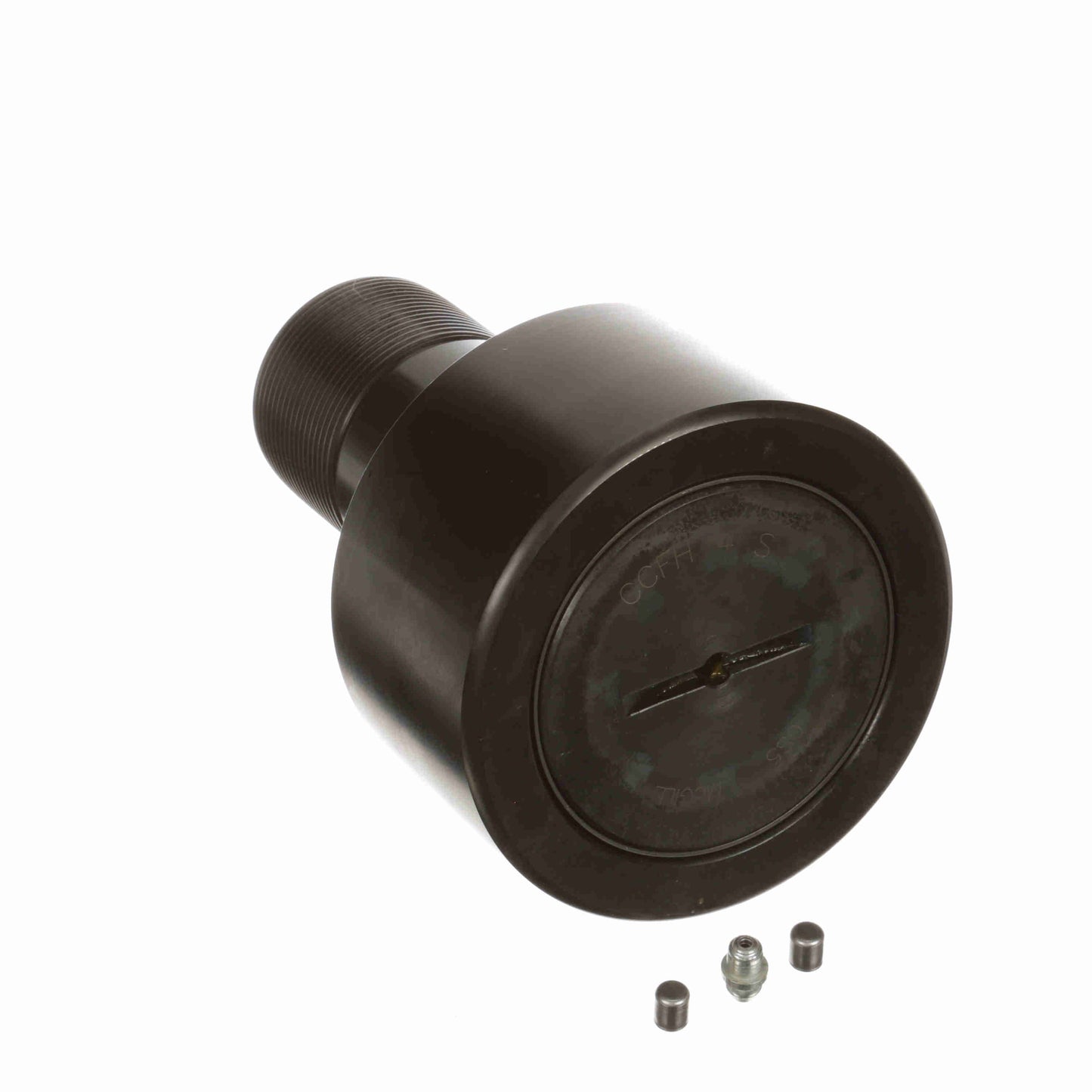

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CCFH 4 S
General Specifications
| UPC: | 726166040406 | Weight: | 10.45 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 4 Inches |
| Packaged Height: | 6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 2-12 | Lubrication Fitting Size - Inch: | 1/4 |
| Oil Hole Center - Inch: | 0.75 | Stud Diameter - Inch: | 2 |
| Lubrication Fitting Size - Metric: | 1/4 | Roller Width - Inch: | 2.25 |
| Oil Hole Diameter - Inch: | 0.125 | Roller Diameter - Inch: | 4 |
| Minimum Thread Length - Inch: | 1.5 | Stud Length - Inch: | 3.5 |
Technical Specifications
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Crowned |
| Limiting Speed: | 700 | Hex/Slot: | Screwdriver Slot |
| Adjustment: | None | Sealing: | Sealed |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Roller Shape: | Crowned | Clamping Torque - in-lbf: | 5,000 |
| Platform: | CAMROL® | Dynamic Load Rating - lb: | 29,985 |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 89,540 |
| Stud Type: | Heavy Stud | Lubrication Hole Location: | Stud side |
