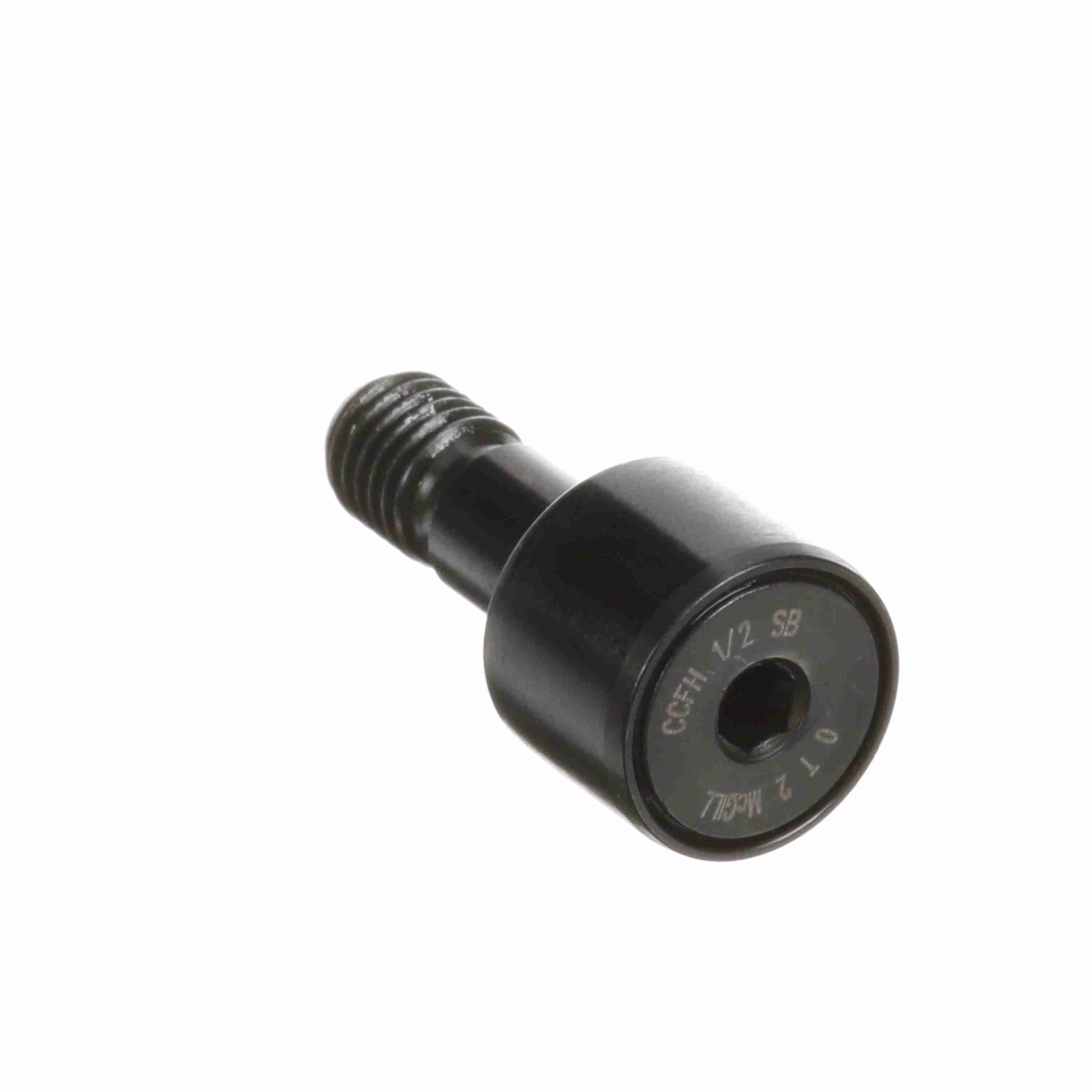

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CCFH 1/2 SB
General Specifications
| UPC: | 726166030339 | Weight: | 0.04 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1/4-28 | Stud Diameter - Inch: | 0.25 |
| Roller Width - Inch: | 0.375 | Minimum Thread Length - Inch: | 0.25 |
| Stud Length - Inch: | 0.625 | Roller Diameter - Inch: | 0.5 |
Technical Specifications
| Adjustment: | None | Sealing: | Sealed |
| Limiting Speed: | 11,500 | O.D. Configuration: | Crowned |
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Roller Shape: | Crowned |
| Static Load Rating: | 1,580 | Stud Type: | Heavy Stud |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - lb: | 680 |
| Clamping Torque - in-lbf: | 35 | Lubrication Hole Location: | Stud side |
