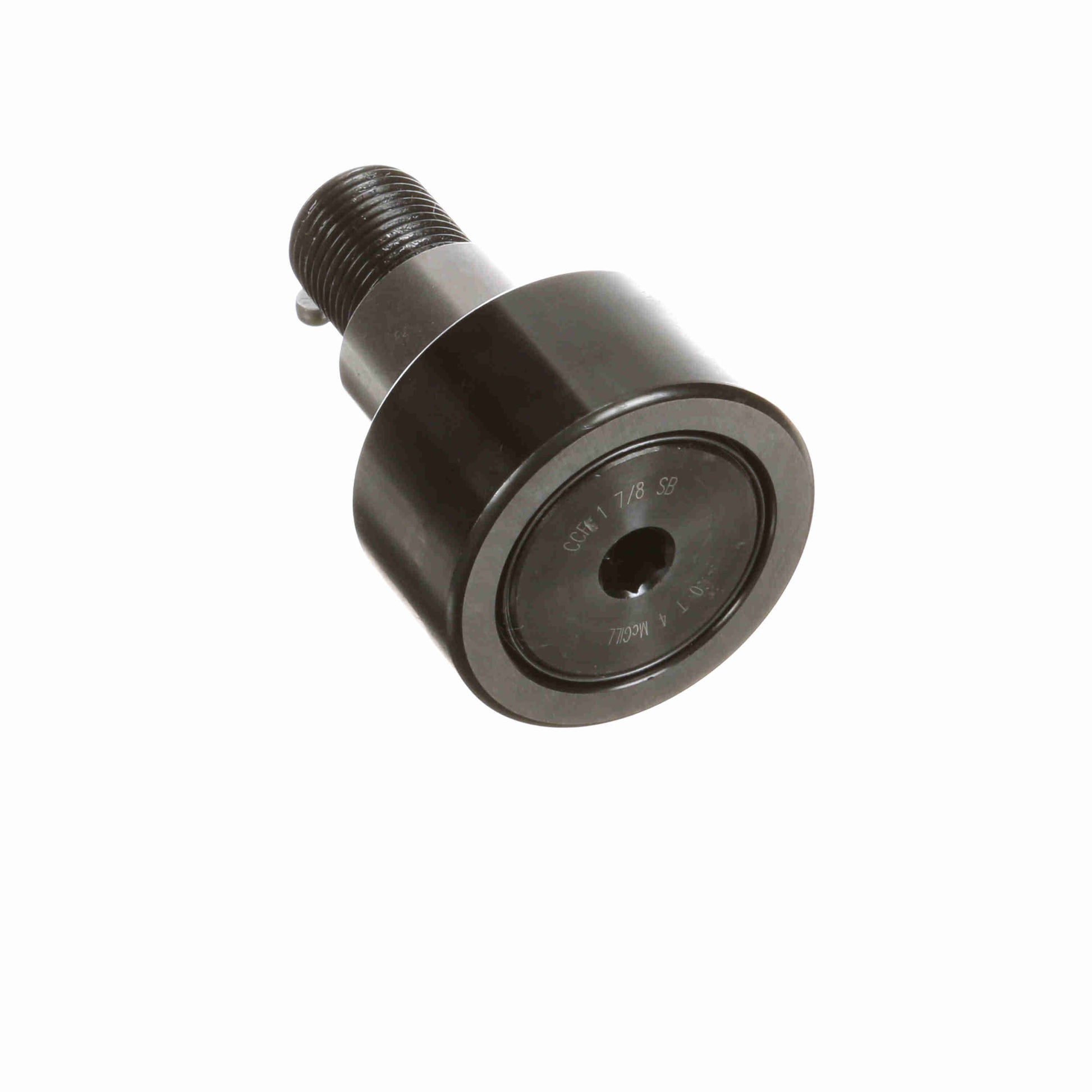

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CCFE 1 7/8 SB
General Specifications
| UPC: | 726166037109 | Weight: | 0.96 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3/4-16 | Crown Radius: | 20 |
| Eccentricity - Inch: | 0.03 | Stud Diameter - Inch: | 0.75 |
| Lubrication Fitting Size - Metric: | 0.1875 | Hex Socket - Inch: | 0.3125 |
| Roller Width - Inch: | 1 | Lubrication Fitting Size - Inch: | 0.1875 |
| Stud Length - Inch: | 1.75 | Minimum Thread Length: | 0.875 |
| Roller Diameter - Inch: | 1.875 | Bushing Diameter - Inch: | 1 |
Technical Specifications
| Adjustment: | Eccentric Bushing | Dynamic Radial Rating: | 6,385 |
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| O.D. Configuration: | Crowned | Sealing: | Sealed |
| Limiting Speed: | 2,000 | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Roller Shape: | Crowned |
| Dynamic Load Rating - lb: | 6,385 | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud with Eccentric Bushing | Clamping Torque - in-lbf: | 1,250 |
| Platform: | CAMROL® | Static Load Rating: | 6,000 |
