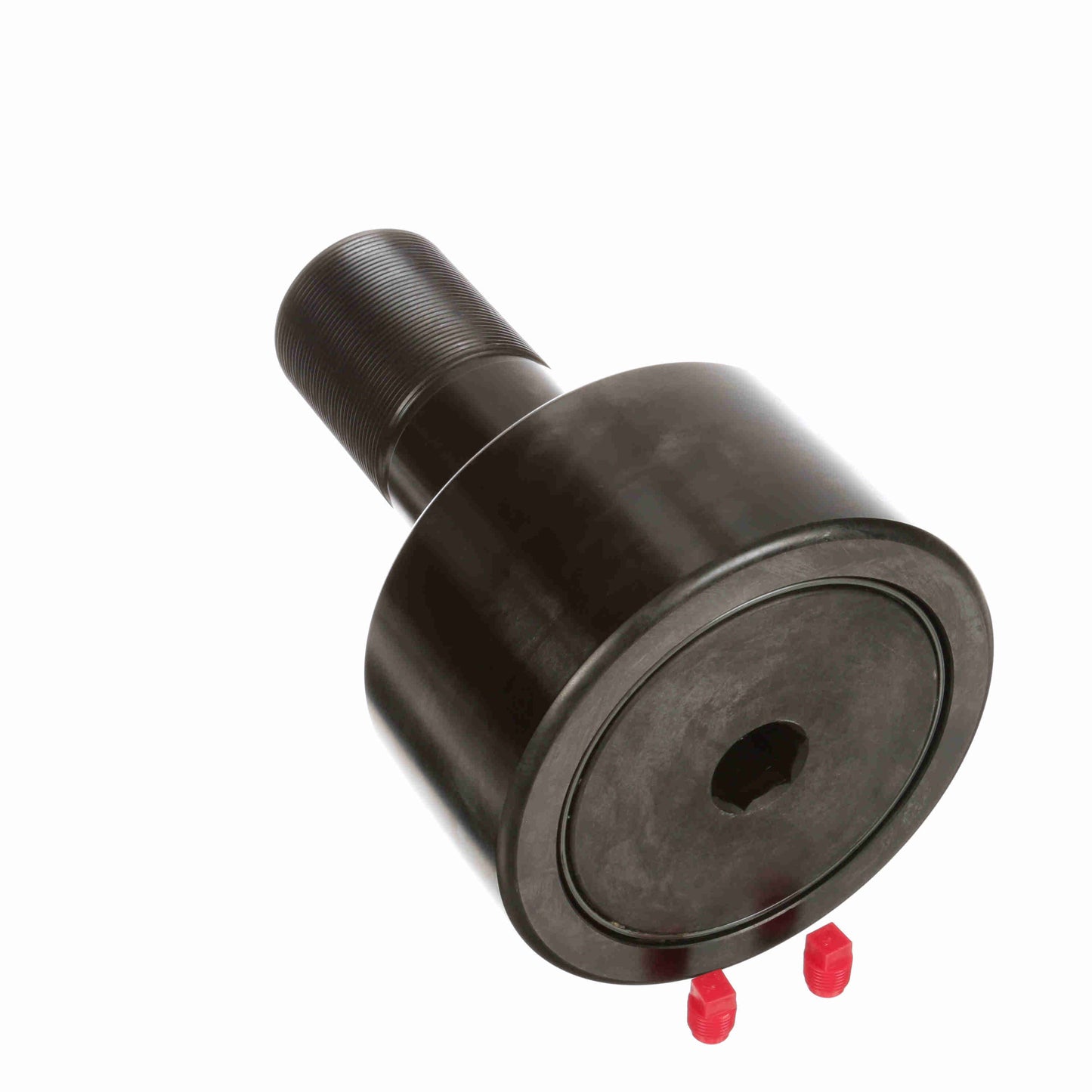

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CCF 6 S
General Specifications
| UPC: | 726166042332 | Weight: | 32.88 LB |
| Packaged Length: | 6 Inches | Packaged Width: | 10 Inches |
| Packaged Height: | 6 Inches | HTC: | 8482.50.0000 |
| Country of Origin: | Mexico |
Dimensions
| Crown Radius: | 56 | Threads: | 2 1/2-12 |
| Lubrication Fitting Size - Metric: | 1/4 N.P.T. | Roller Width - Inch: | 3.25 |
| Lubrication Fitting Size - Inch: | 1/4 N.P.T. | Roller Diameter - Inch: | 6 |
| Stud Diameter - Inch: | 2.5 | Minimum Thread Length: | 3 |
| Stud Length - Inch: | 6 |
Technical Specifications
| Hex/Slot: | Hex Hole | Adjustment: | None |
| Rolling Element: | Needle Roller - Full Complement | Sealing: | Sealed |
| Limiting Speed: | 475 | Dynamic Radial Rating: | 60,000 |
| O.D. Configuration: | Crowned | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Roller Shape: | Crowned |
| Platform: | CAMROL® | Static Load Rating: | 85,900 |
| Clamping Torque - in-lbf: | 5,000 | Dynamic Load Rating - lb: | 60,000 |
