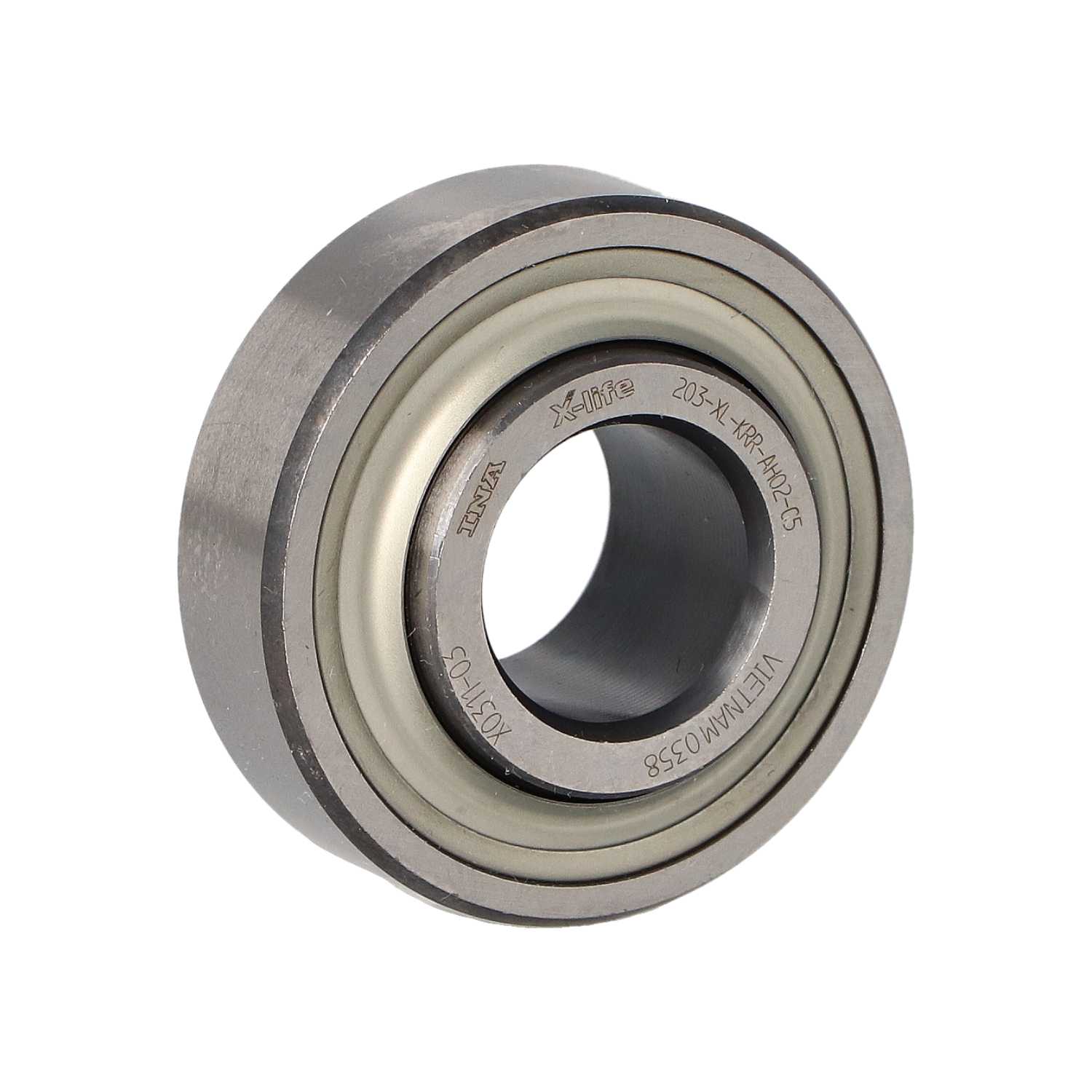

ตลับลูกปืน INA 203-XL-KRR-AH02

ตลับลูกปืน INA 203-XL-KRR-AH02

INA

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
903.00 ฿
903.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด ตลับลูกปืน INA 203-XL-KRR-AH02

Deep Groove Ball Bearing with Extended Inner

INA from Schaeffler bearings have a cylindrical outer ring and are fitted in cylindrical bores. The inner ring is extended on both sides and is on the shaft using a location fit. Due to the extended inner ring, extra axial spacer rings are not required.

The concentric seat allows for speeds equivalent to standard ball bearings, while the load can be either constant or alternating. Smooth running is also achieved.

R seals have two zinc-coated sheet steel washers extended outwards and angled downwards with intermediate NBR part and radially preloaded seal lip. They deliver better protection against mechanical damage.

Substantial grease reservoir due to the space between the extended and angled sheet steel washers. Used in radial insert ball bearings with inner ring extended on both sides.

Features and Benefits

• Sealed on both sides using R type seals

• The sheet steel washers extended outwards and angled downwards form a large grease reservoir

คุณสมบัติ / Specifications

คุณสมบัติ Value
Inside Diameter 16.2mm
Outside Diameter 40mm
Ball Bearing Type Radial
Race Width 18.3mm
End Type Sealed
Number of Rows 1
Static Load Rating 4750N
Material Steel
Race Type Plain
Dynamic Load Rating 10100N
Bore Type Parallel
