• ตลับลูกปืน FAG 6211-2RSR-C3
1 1

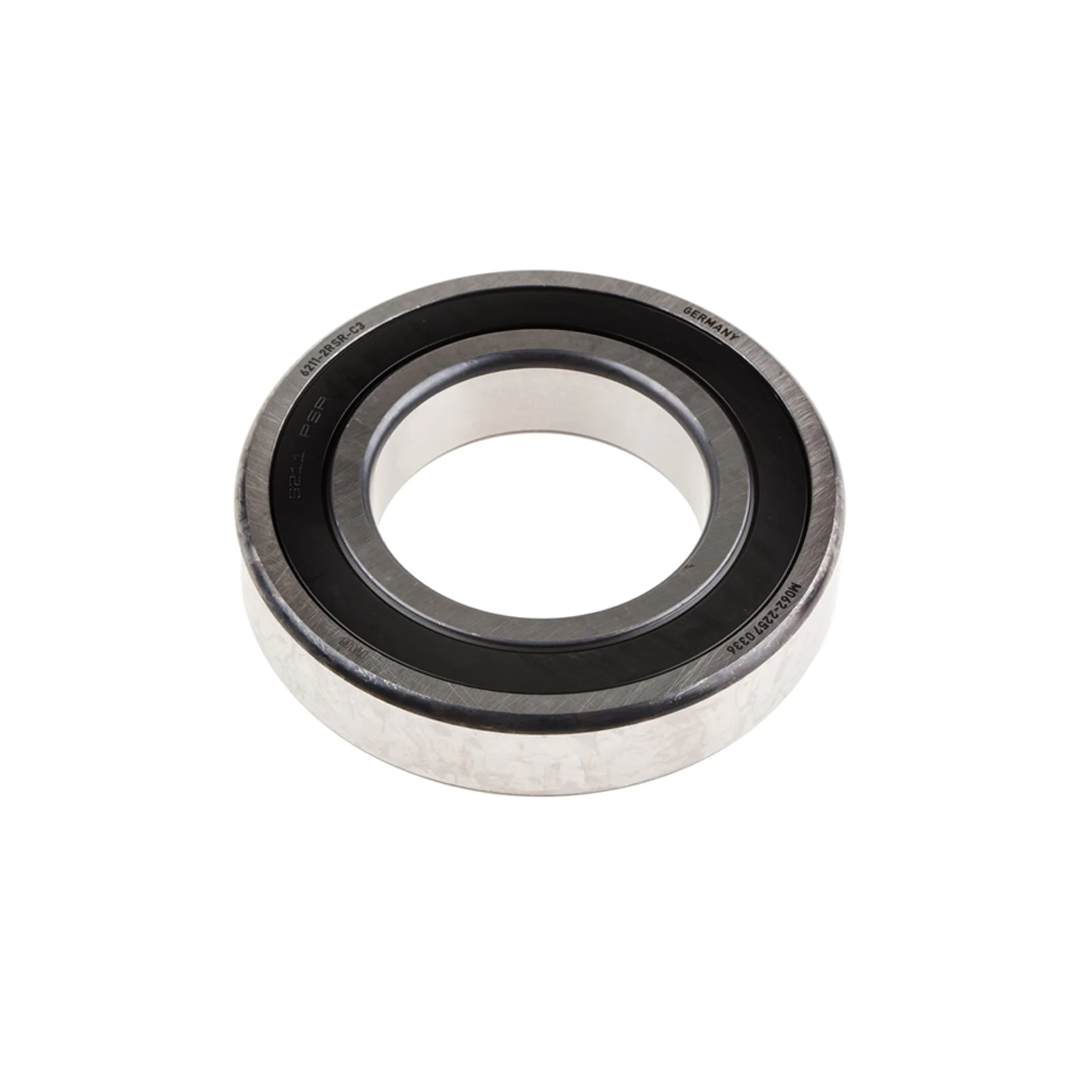

ตลับลูกปืน FAG 6211-2RSR-C3

ตลับลูกปืน FAG 6211-2RSR-C3

FAG

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,683.00 ฿
1,683.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด ตลับลูกปืน FAG 6211-2RSR-C3

Deep Groove Ball Bearings

FAG from Schaeffler deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain. They are available in single and double row designs and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.

คุณสมบัติ

• Low noise levels

• Improved sealing

• Lower friction

• Cost-effective

Product Application Information

Open bearings are suitable for high speeds. Due to the manufacturing process, they have turned recesses for sealing washers and sealing shields.

รหัสต่อท้าย

2Z - Gap seals on both sides. These bearings are greased using a high-quality grease, lubricated for life and suitable for high speeds

2HRS - Lip seals on both sides made from nitrile butadiene rubber. These bearings have an improved sealing function and retention in the outer ring. They are greased using a high-quality grease, lubricated for life and suitable for moderate speeds

2BRS - Non-contact seals on both sides. Their friction level is as low as with the gap seals. In addition, they offer better protection against the ingress of dust and the escape of lubricant

2RSR - Lip seals on both sides made from nitrile butadiene rubber NBR and are suitable for moderate speeds

C - Modified internal construction in Generation C

Specifications

คุณสมบัติ Value
Inside Diameter 55mm
Outside Diameter 100mm
Ball Bearing Type Deep Groove
Race Width 21mm
End Type Sealed
Number of Rows 1
Static Load Rating 29000N
Material Steel
Cage Material Steel
Race Type Plain
Dynamic Load Rating 46000N
Bore Type Parallel
