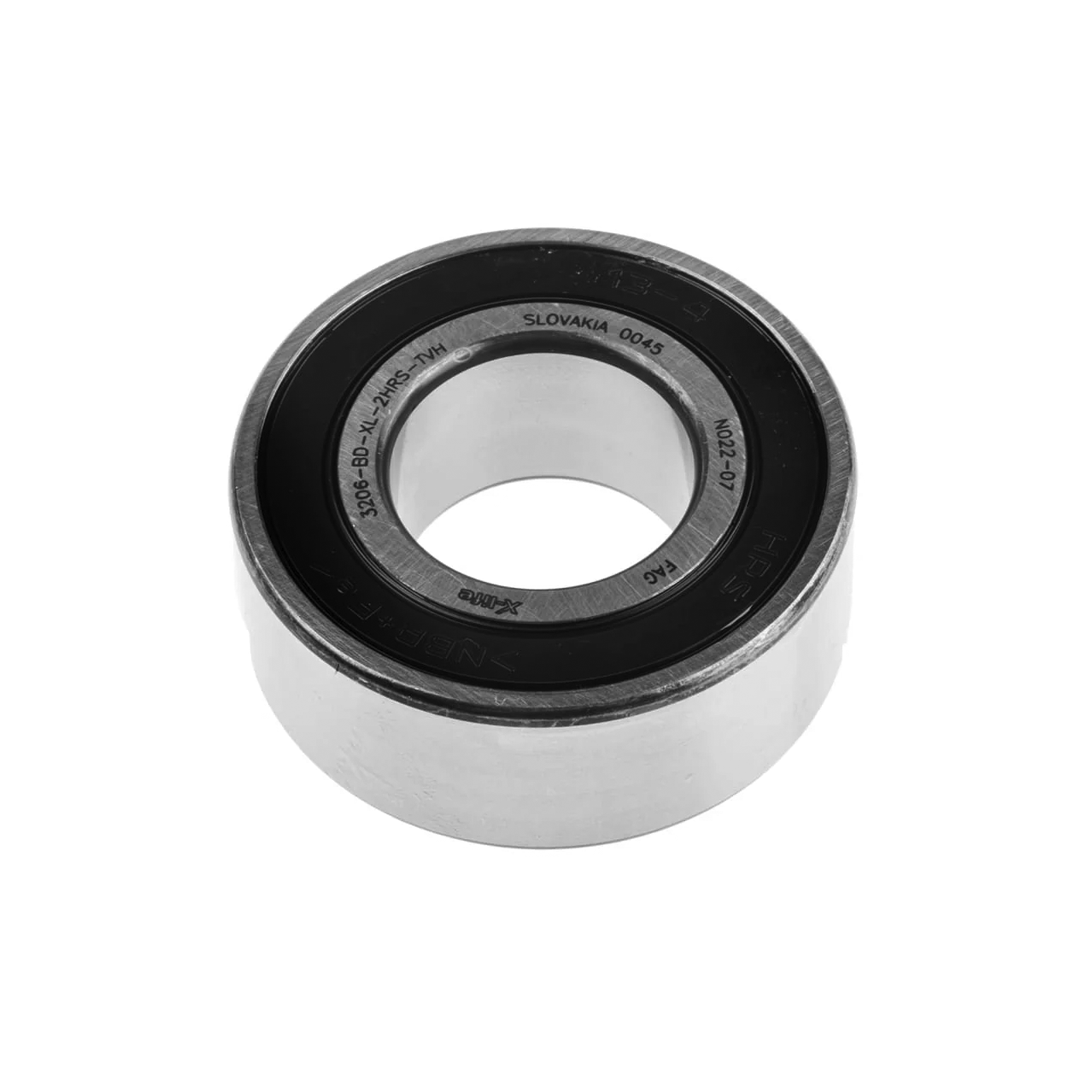

ตลับลูกปืน FAG 3206-BD-2HRS-TVH

ตลับลูกปืน FAG 3206-BD-2HRS-TVH

FAG

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
2,554.00 ฿
2,554.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด ตลับลูกปืน FAG 3206-BD-2HRS-TVH

Double Row Angular Contact Ball Bearings

FAG from Schaeffler double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. They correspond in design to single row angular contact ball bearings in pairs in an O arrangement but give a narrower design. They differ in the size of their contact angle and the design of the bearing rings.

The bearings are available in open and sealed versions. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields. Sealed bearings are maintenance free and, as a result, allow economical bearing arrangements. The self-alignment capacity of angular contact ball bearings is small.

คุณสมบัติ

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

Product Application Information

These bearings have improved running accuracy and optimised surfaces giving them an increase in fatigue limit load. In terms of the expanded adjusted rating life, values up to 50% are achieved. In certain applications, a smaller bearing arrangement can be designed.

รหัสต่อท้าย

BD - Modified internal construction

2HRS - Lip seals on both sides

TVH - Solid polyamide snap cage, ball-guided

Specifications

คุณสมบัติ Value
Inside Diameter 30mm
Outside Diameter 62mm
Ball Bearing Type Angular Contact
Race Width 23.8mm
End Type Sealed
Number of Rows 2
Static Load Rating 22200N
Material Steel
Race Type Plain
Dynamic Load Rating 31000N
Bore Type Parallel
