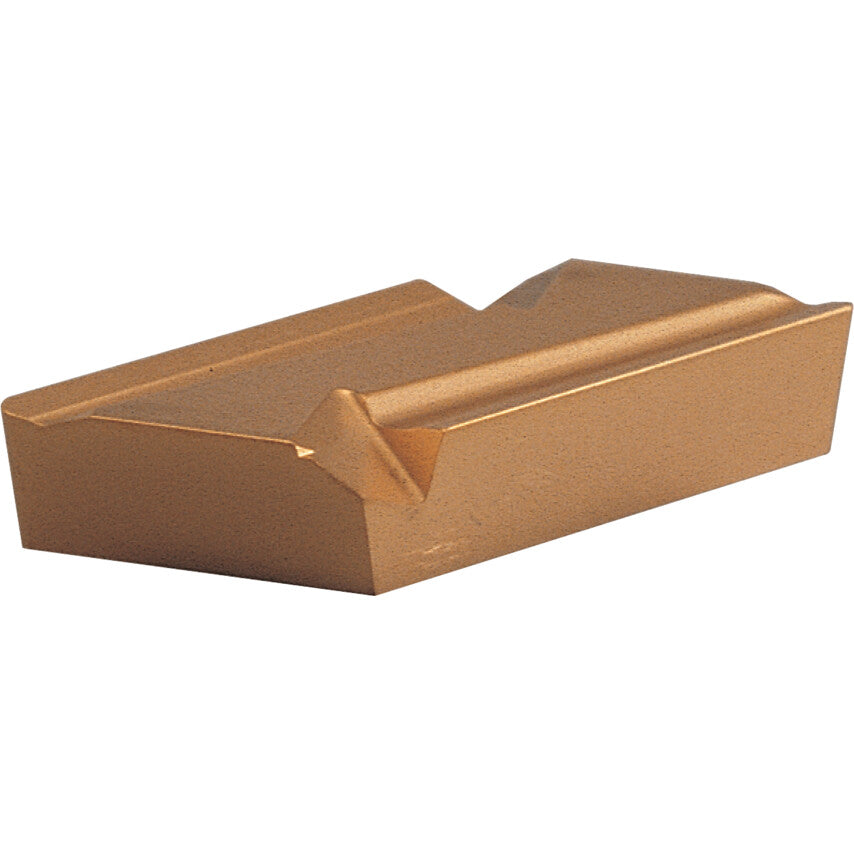

KNUX 160405-R11 INSERT GRADE QX520 รหัส YML1202213D

Chipbreaker : R11

Clearance Angle : 0 °

Corner Radius : 0.5

Cutting Direction : Right Hand

Cutting Edge Length : 16 mm

Finish/Coating : Al2O3/TiCN

ISO Category Grade : K

ISO Category Grade : M

ISO Category Grade : P

ISO Cut : K10 to K30

ISO Cut : M10 to M30

ISO Cut : P10 to P35

ISO Designation : KNUX 160405-R11

Inscribed Circle : 9.525 mm

Insert Size : 1604

Insert Style : KNUX

Manufacturer Grade : QX520

Material : Carbide

Material Application : Cast Iron

Material Application : Stainless Steel

Material Application : Steel

Pack Quantity : 10

Shape : 55° Parallelogram

Thickness : 4.76 mm
