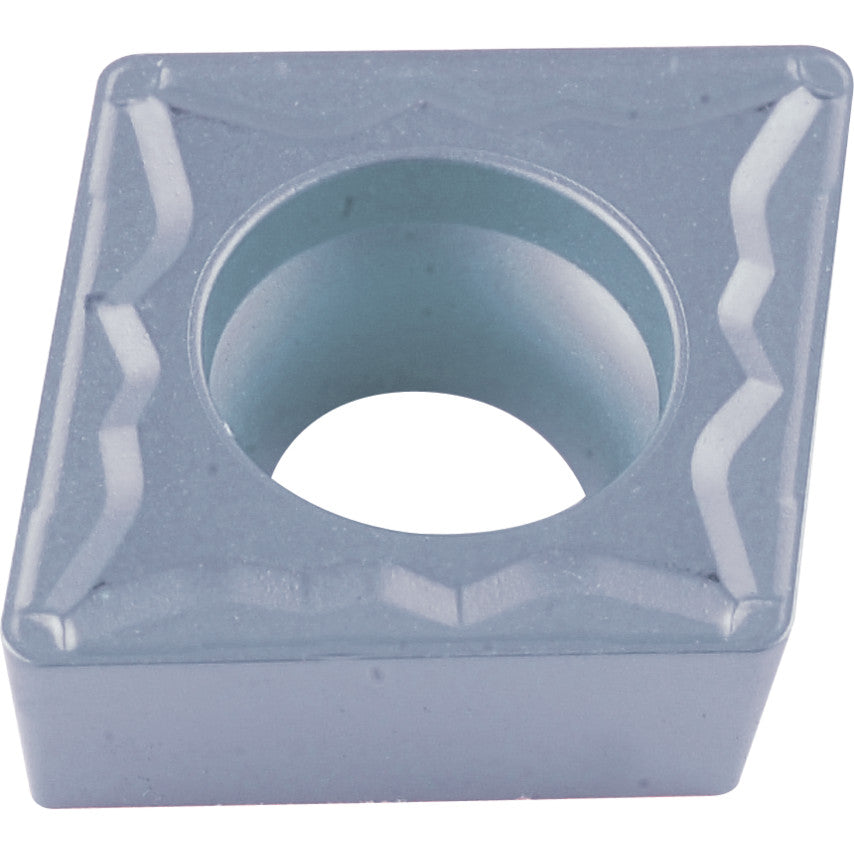

CCMT 09T308-PM INSERT GRADEQX5020 รหัส YML1200406G

Chipbreaker : PM

Clearance Angle : 7 °

Corner Radius : 0.8

Cutting Direction : Neutral

Cutting Edge Length : 9 mm

Finish/Coating : TiN-MT-TiCN-Al2O3

ISO Category Grade : K

ISO Category Grade : M

ISO Category Grade : P

ISO Cut : K10 to K30

ISO Cut : M10 to M30

ISO Cut : P10 to P35

ISO Designation : CCMT 09T308-PM

Inscribed Circle : 9.525 mm

Insert Size : 09T3

Insert Style : CCMT

Manufacturer Grade : QX5020

Material : Carbide

Material Application : Cast Iron

Material Application : Stainless Steel

Material Application : Steel

Pack Quantity : 10

Shape : 80° Rhombic

Thickness : 3.97 mm
