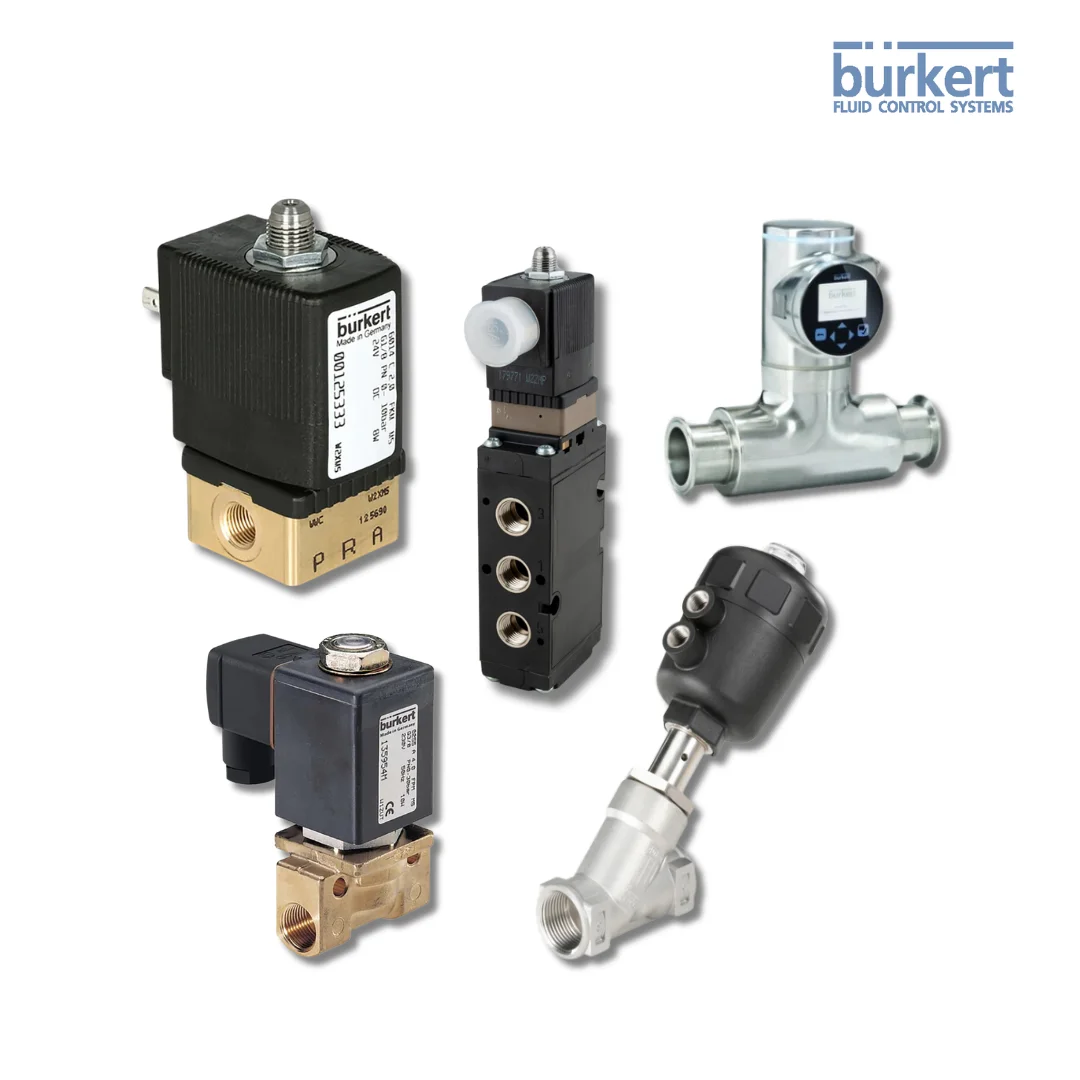

Burkert Solenoid Valve 141246, 2 port(s) , NC, 230 V ac, 1inRS Stock No.:468-015หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:141246

The valve can be mounted in any position, but mounting with coil uppermost is preferred.

Normally closed solenoid valves suitable for use with oil, fat without additives, water and neutral fluids
BSP parallel ports suitable for use with compression fittings
Epoxy encapsulated coils
Three-pin DIN connector rated to IP65 can be positioned through 360° in 90° increments
0-10 bar pressure range
Nominal coil power 8W
Maximum operating temperature 55°C
Power consumption 21VA (Inrush, AC); 12 VA/8 W (Constant, AC); 8W (DC)
Protection to IP65

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
