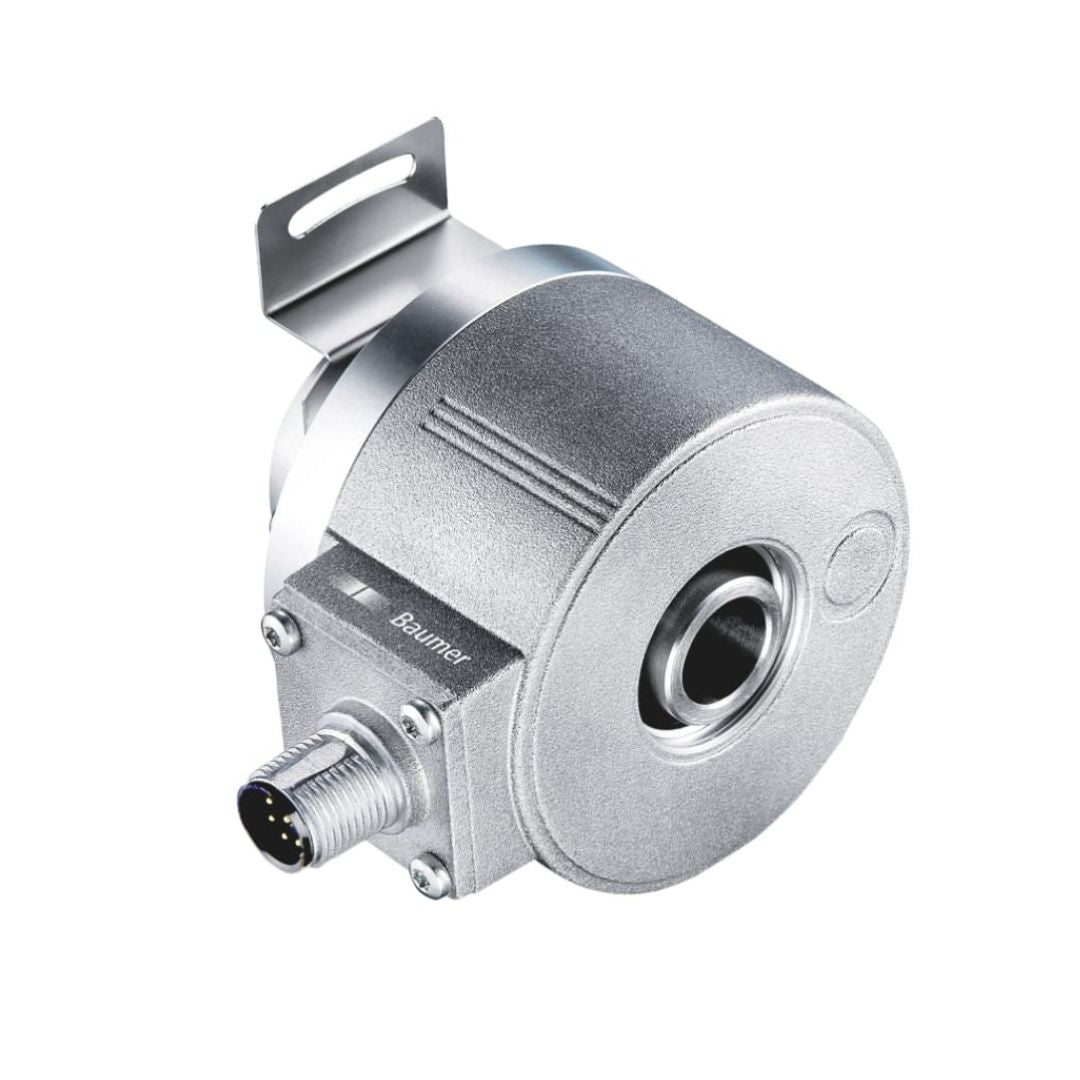

รายละเอียด Baumer BDK Series Optical Incremental Encoder Code BHG 16.25W.1024-B2-5
Features
- Simple Mouning
- End Shaft Mounting (BHF)
- Through Shaft Mounting (BHG)
- Various Hollow Shaft Adapter
- Small Mounting Depth
| General Data | |
|---|---|
| Voltage supply | 5 VDC ±10% (05A) 4,5 - 30 VDC (25W) 10 - 30 VDC (24K) |
| max. supply current no load | typ. 80 mA (at 5 VDC) (05A) typ. 180 mA (at 4,5 VDC) (25W) typ. 60 mA (at 24 VDC) (24K) |
| max. measuring steps | 40'000 steps at 10'000 ppr (05A/24K) |
| pulse range | see order designation |
| pulse tolerance | ± 10% |
| max. switching frequency | 200 kHz (24K) 300 kHz (05A/25W) 750 kHz (05A > 5000 ppr) |
| Mechanical Data | |
|---|---|
| max. revolutions | 12'000 rpm |
| moment of inertia | BHF/BHG with clamp ring typ. 18,5 x 10-7 kgm2 BHF without clamp ring typ. 13,6 x 10-7 kgm2 |
| torque BHF | typ. 0,9 cNm IP 42 typ. 3,7 cNm IP 64 |
| torque BHG | typ. 1,75 cNm IP 42 typ. 4,7 cNm IP 64 (3'000 rpm / 20 °C) |
| product life | depending on ambient conditions (typ. 109 revolutions) |
| max. protection class | shaft: IP 64 housing: IP 65 |
| material | housing: aluminum BHF with connection ref. -5: steel flange: aluminum |
| weight | approx. 300 g |
