• ตลับลูกปืน TIMKEN LL319349/LL319310
1 1

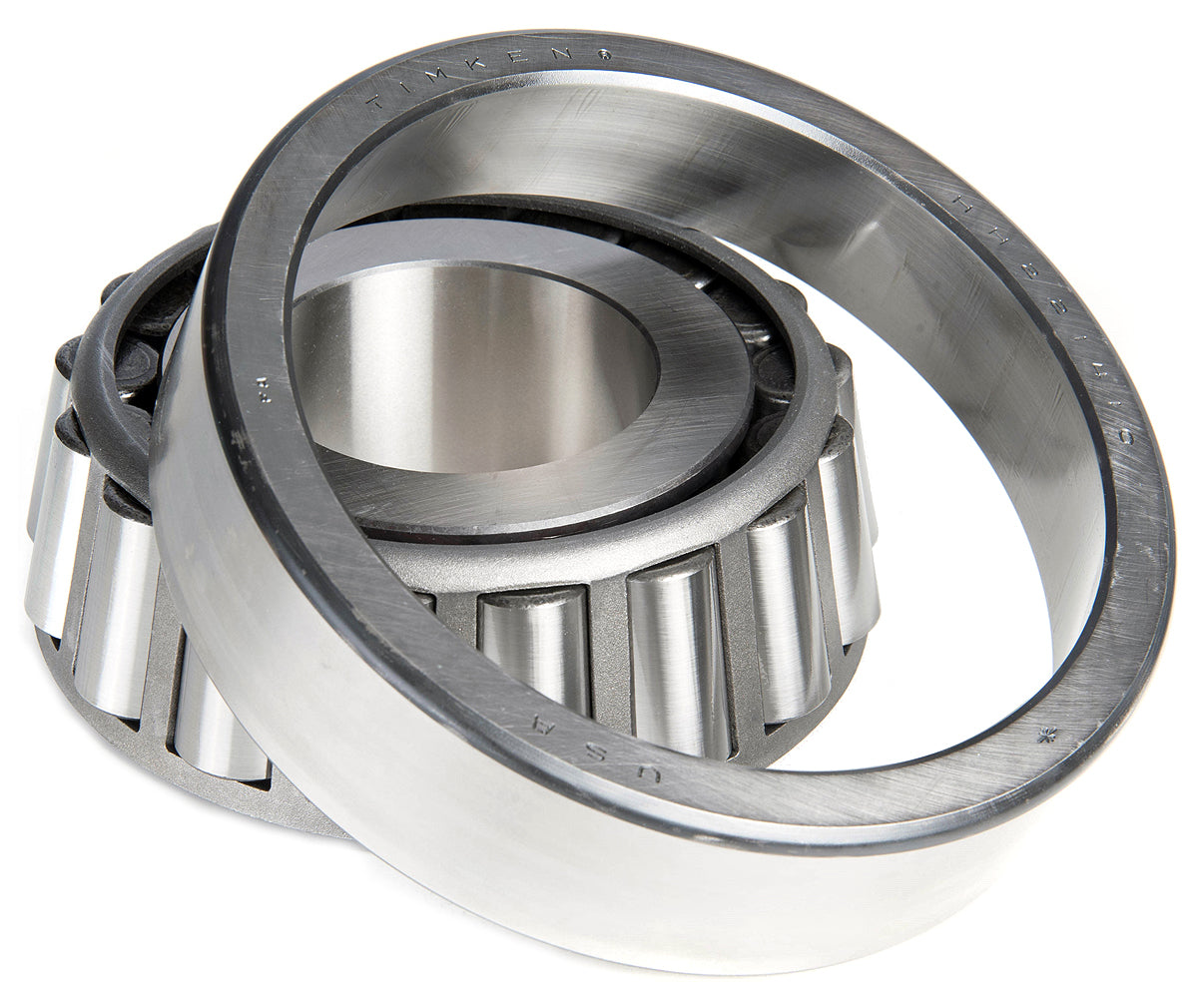

ตลับลูกปืน TIMKEN LL319349/LL319310

ตลับลูกปืน TIMKEN LL319349/LL319310

TIMKEN

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
6,334.00 ฿
6,334.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด ตลับลูกปืน TIMKEN LL319349/LL319310

Tapered Roller Bearings - TS (Tapered Single) Imperial/Metric

These bearings are the most basic and most widely used type of tapered roller bearings. They consist of two main separable parts, the cone (inner ring) assembly and the cup (outer ring). They are typically mounted in opposing pairs on a shaft.

Features and Benefits
• Imperial / Metric

• One piece stamped steel cage retains rollers on the cone

• Inner diameter range 7.937 mm to 863.600 mm

• Outer diameter range 31.991 mm to 1060.000 mm

• Single cone and cup

Product Application Information
Typical applications include, vehicle front wheels, differential and pinion configurations, conveyor rolls, machine tool spindles and trailer wheels.

คุณสมบัติ / Specifications

คุณสมบัติ Value
Inside Diameter 95.25mm
Outside Diameter 128.59mm
Roller Bearing Type Taper
Race Width 11.9mm
Bore Type Parallel
Material Metal
Static Load Rating 99400N
Cage Material Steel
Number of Rows 1
Roller Material Steel
Dynamic Load Rating 16500 (90 Million) N, 63500 (1 Million) N, 9910 (90 Million Thrust) N
End Type Open
