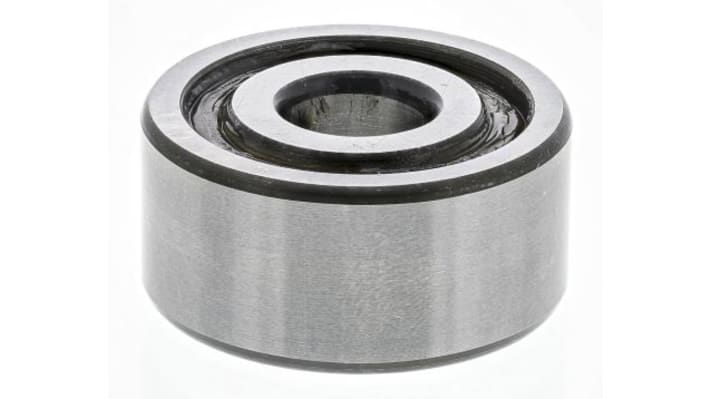

ตลับลูกปืน NSK 3201BTNG
ตลับลูกปืน NSK 3201BTNG
ราคาปกติ
1,254.55 ฿
ราคาปกติ
ราคาโปรโมชัน
1,254.55 ฿
ราคาต่อหน่วย
/
ต่อ
NSK
รายละเอียด ตลับลูกปืน NSK 3201BTNG
Double Row Ball Bearings
Designed for greater dynamic and static load rating capacity than the single row version, and are very often used instead of a pair of single row angular contact bearings where assembly of the latter could be difficult and where there is a need to minimise tilt 25° contact angle
Supplied with
Instruction leaflet
Double Row Angular Contact Ball Bearings are similar to Single Row Axial Ball Bearings (when used as a pair, back to back), however, unlike Single Row Axial Ball Bearings, they can accept radial and axial loads simutaneously.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
Inside Diameter | 12mm |
Outside Diameter | 32mm |
Ball Bearing Type | Angular Contact |
Race Width | 15.9mm |
End Type | Open |
Number of Rows | 2 |
Static Load Rating | 5.85kN |
Material | Steel |
Cage Material | Polyamide |
Race Type | Plain |
Dynamic Load Rating | 10.6kN |
Bore Type | Parallel |
