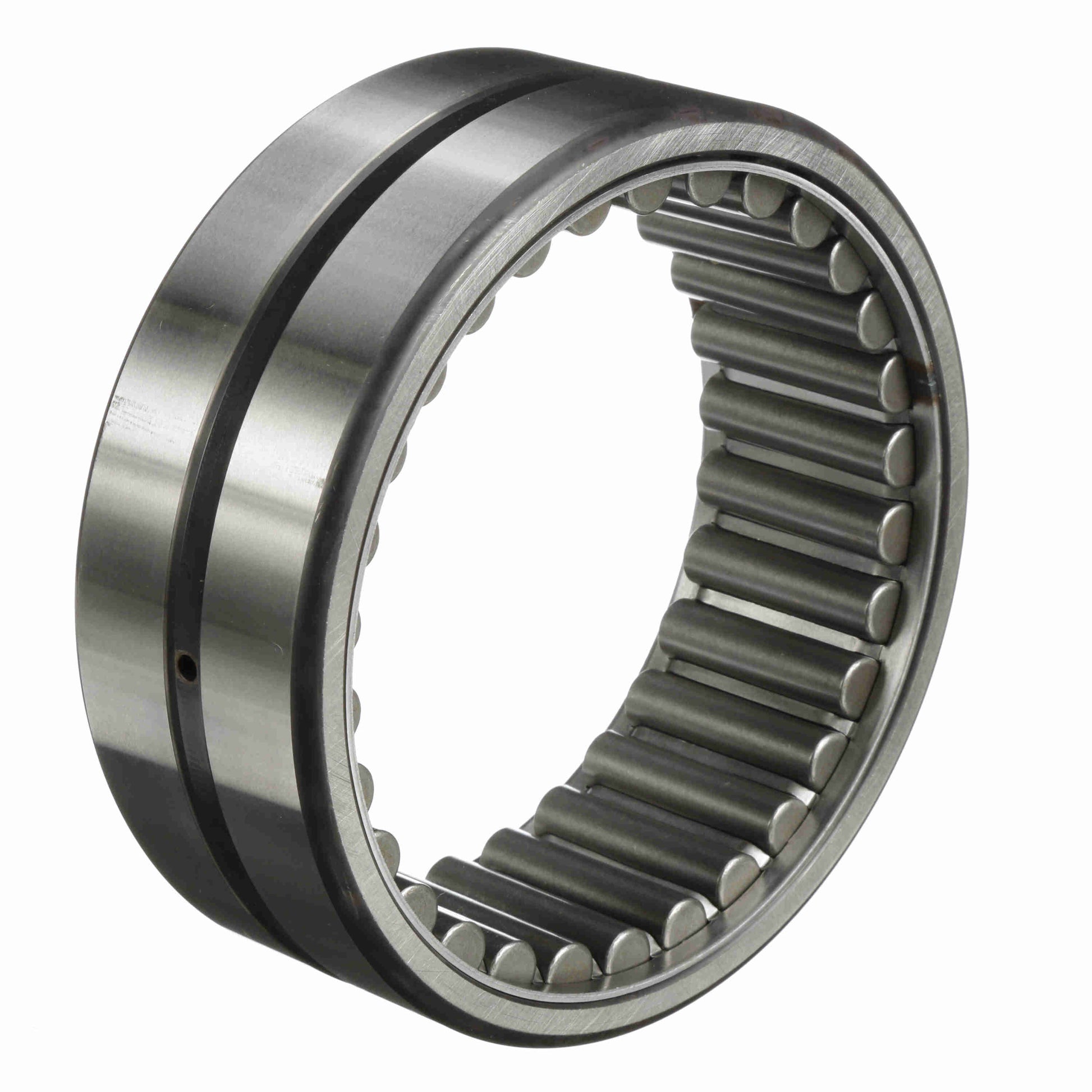

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 88 N
General Specifications
| UPC: | 726166064662 | Weight: | 7.82 LB |
| Packaged Length: | 7.4 Inches | Packaged Width: | 7.4 Inches |
| Packaged Height: | 3.1 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2.5 | Outside Diameter - Inch: | 7 in |
| Bore Size - Inch: | 5.5000 in | Housing & Shaft Fillet (in): | 0.1 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Speed (Max) Grease: | 1,100 | Dynamic Load Rating: | 70,200 |
| Full Complement/Caged: | Caged | Speed (Max) Oil: | 2,180 |
| Static Load Rating (lb): | 169,800 lb | Platform: | Cagerol Bearing |
| Sealed: | None | Duplexing: | No |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Related Inner Ring: | MI 72 N |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | Yes |
