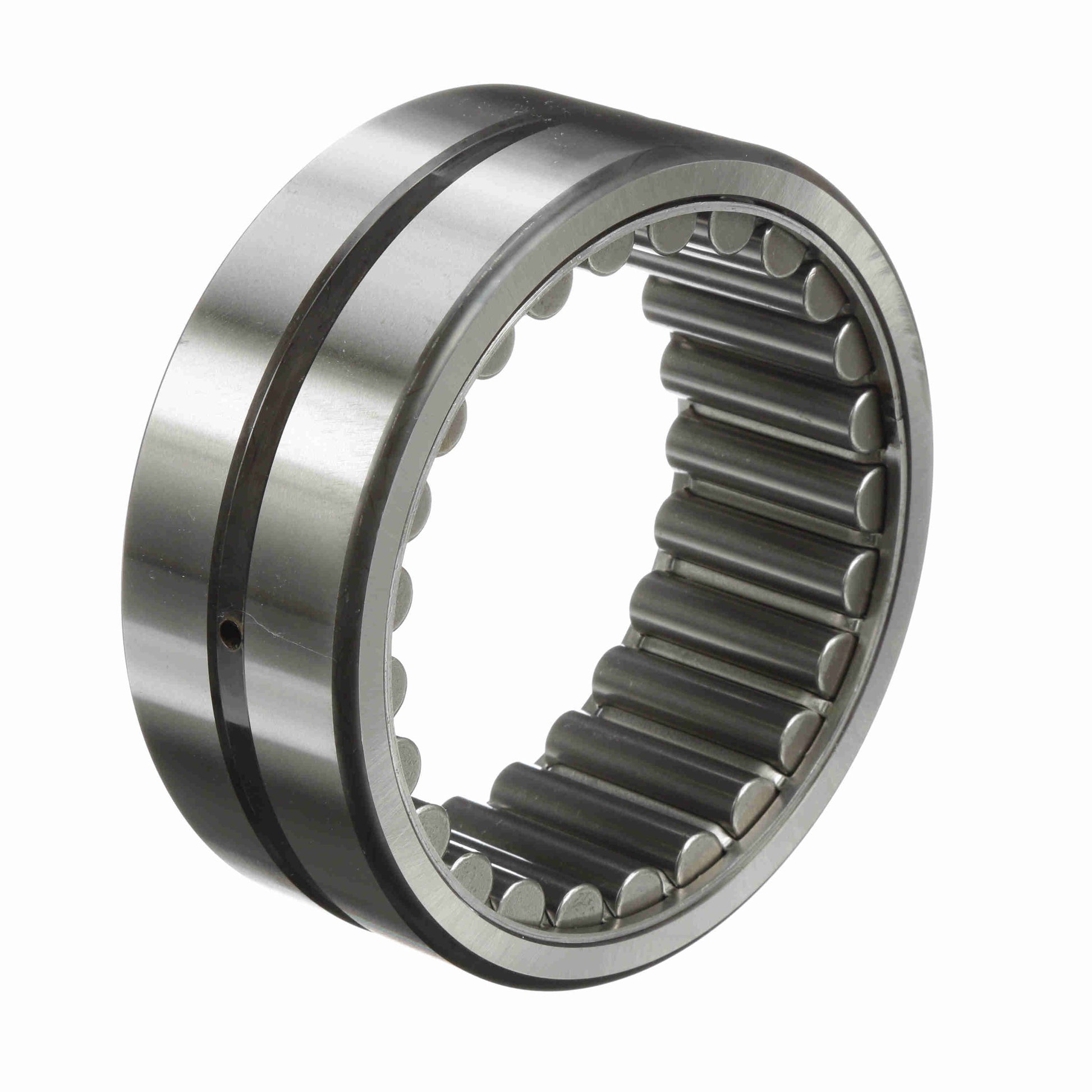

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 72
General Specifications
| UPC: | 726166064532 | Weight: | 5.95 LB |
| Packaged Length: | 7.5 Inches | Packaged Width: | 7.5 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2.25 | Hole Diameter: | 0.188 |
| Housing & Shaft Fillet (in): | 0.1 in | Bore Size - Inch: | 4.5000 in |
| Outside Diameter - Inch: | 6 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Misalignment: | No |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Duplexing: | No | Static Load Rating (lb): | 130,000 lb |
| Full Complement/Caged: | Caged | Speed (Max) Oil: | 2,660 |
| Platform: | Cagerol Bearing | Speed (Max) Grease: | 1,330 |
| Dynamic Load Rating: | 60,300 | Sealed: | None |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 62 |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | Yes |
