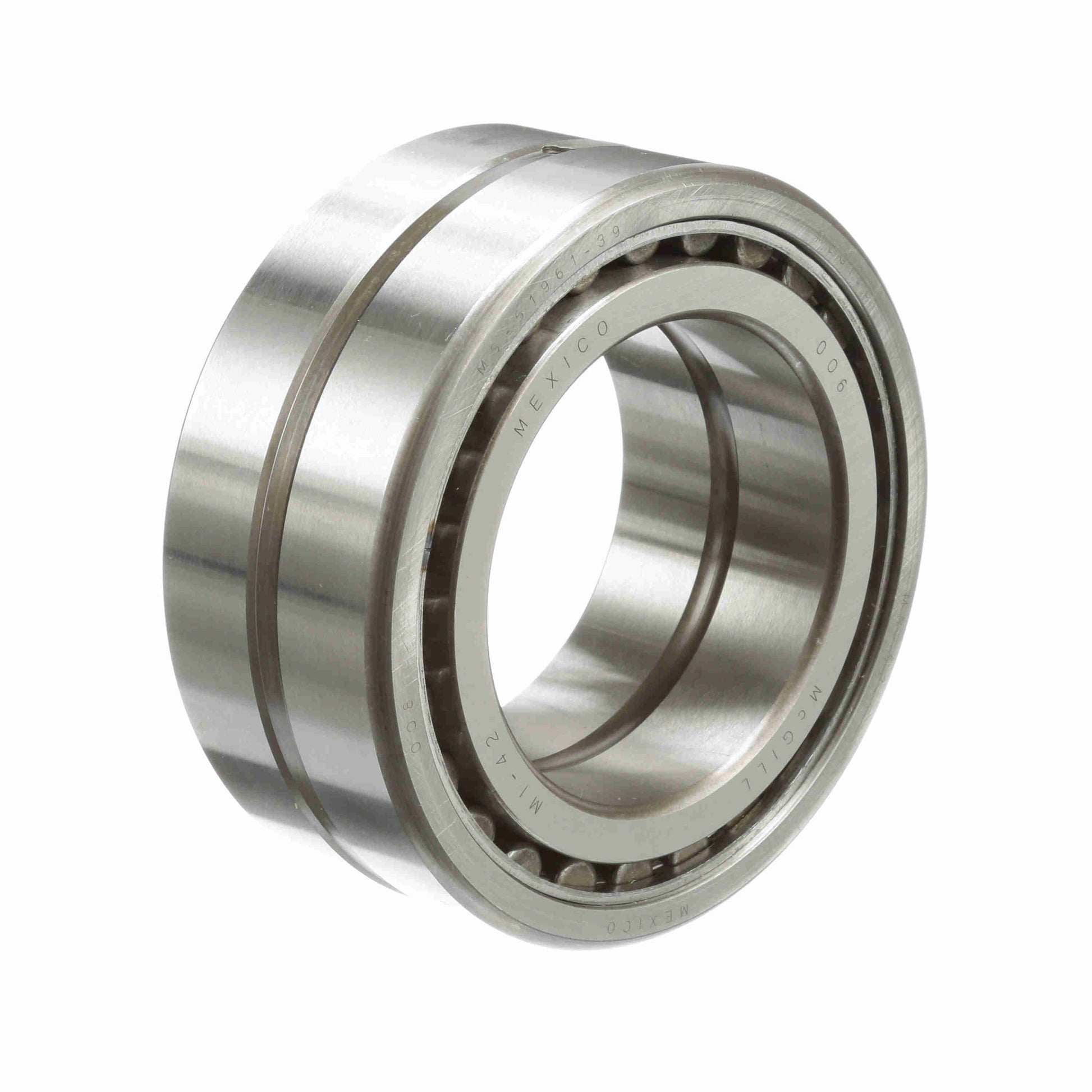

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (with inner) - MR 52/MI 42
General Specifications
| UPC: | 726166064136 | Weight: | 3.59 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Inner Width: | 1.76 | Outer Width: | 1.75 |
| Hole Diameter: | 0.188 | Outside Diameter - Inch: | 4.25 in |
| Bore Size - Inch: | 2.6250 in | Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | Yes |
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Number of Rows: | 1 |
| Misalignment: | No | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Rolling Element: | Needle Roller |
| Platform: | Cagerol Bearing | Sealed: | None |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Dynamic Load Rating: | 29,900 | Speed (Max) Oil: | 3,700 |
| Static Load Rating (lb): | 64,400 lb | Speed (Max) Grease: | 1,850 |
| Operating Temperature Range: | -20F to 250 °F | Standard Met: | ABMA;ISO;MS 51961-39 |
| Precision Rating: | Not Rated | Lubrication Hole Type: | Lubrication Groove & Hole |
| Separable: | Inner ring - both sides | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
