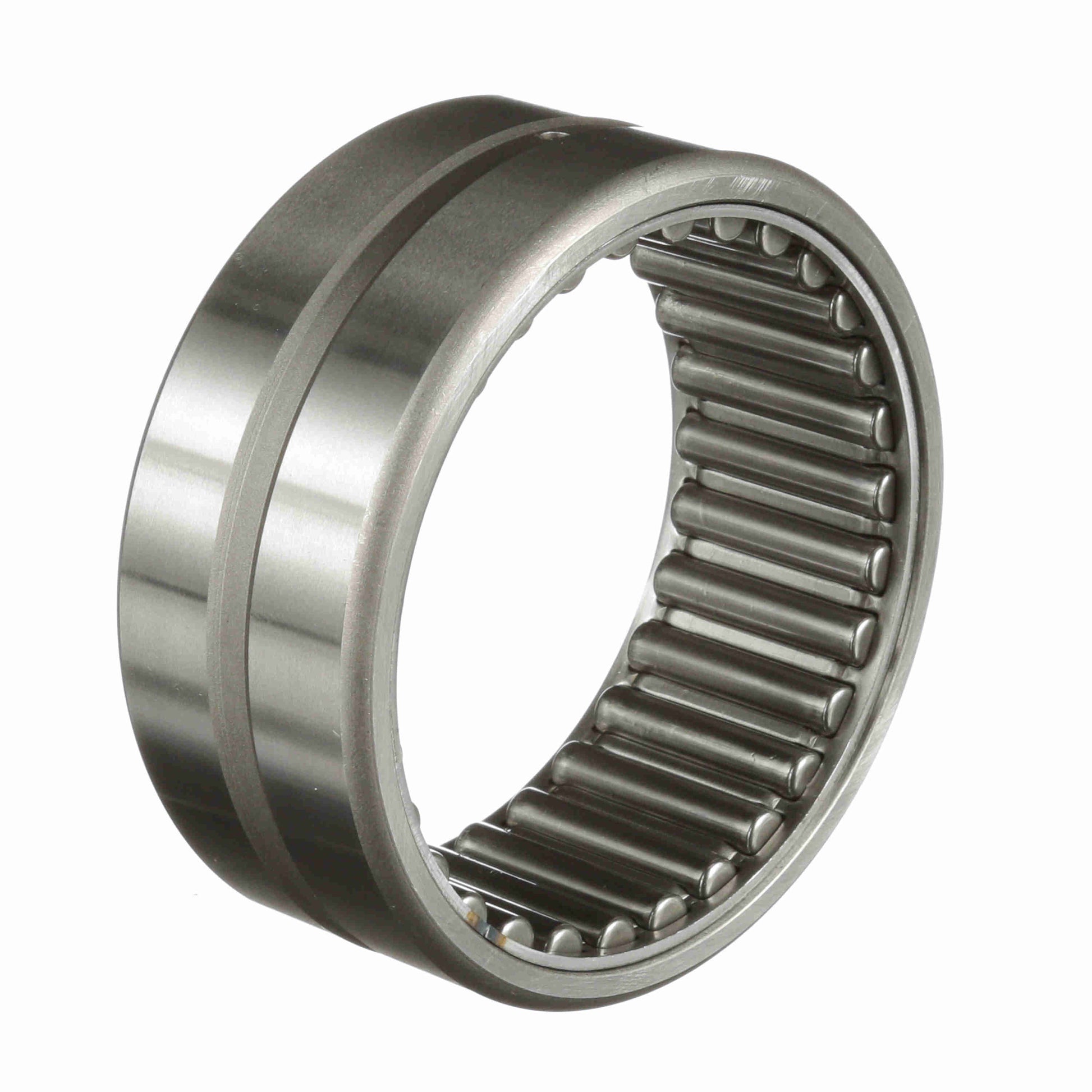

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 48 N
General Specifications
| UPC: | 726166068110 | Weight: | 1.27 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.5 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 3.75 in | Hole Diameter: | 0.125 |
| Bore Size - Inch: | 3 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Seal Type: | Unsealed | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Static Load Rating (lb): | 52,300 lb | Platform: | Cagerol Bearing |
| Speed (Max) Oil: | 4,000 | Speed (Max) Grease: | 2,000 |
| Sealed: | None | Dynamic Load Rating: | 26,100 |
| Precision Rating: | RBEC-1 | Flanges: | No Flanges |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 40 N |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
