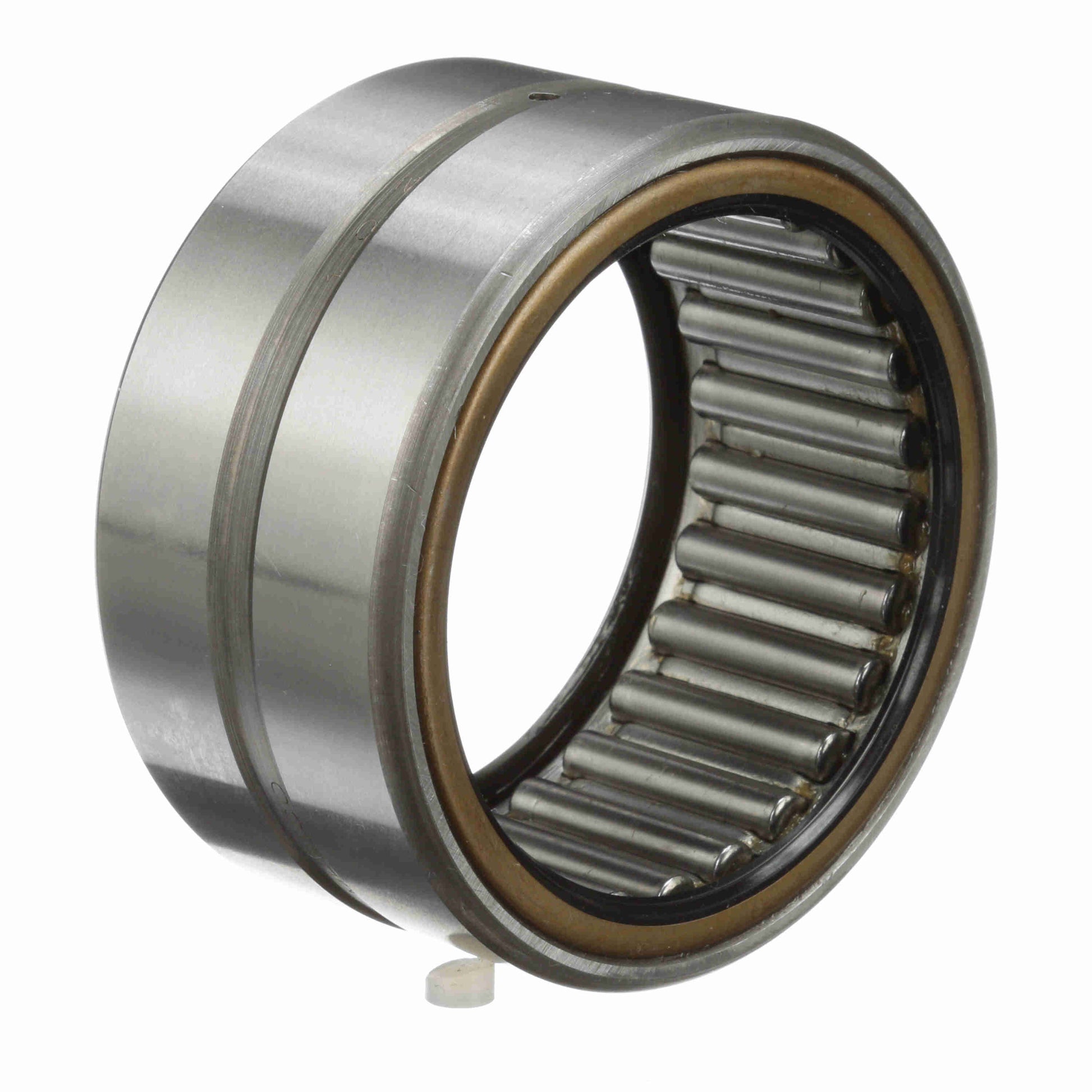

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 44 SS
General Specifications
| UPC: | 726166067878 | Weight: | 1.36 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.5 in |
| Bore Size - Inch: | 2.7500 in | Hole Diameter: | 0.125 |
| Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | Steel |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Misalignment: | No | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Duplexing: | No | Static Load Rating (lb): | 46,700 lb |
| Speed (Max) Oil: | 1,390 | Full Complement/Caged: | Caged |
| Speed (Max) Grease: | 700 | Dynamic Load Rating: | 24,500 |
| Platform: | Cagerol Bearing | Sealed: | Sealed - Both Sides |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 31, MI 32, MI 34 |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Enclosure: | Sealed Both Sides |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes |
