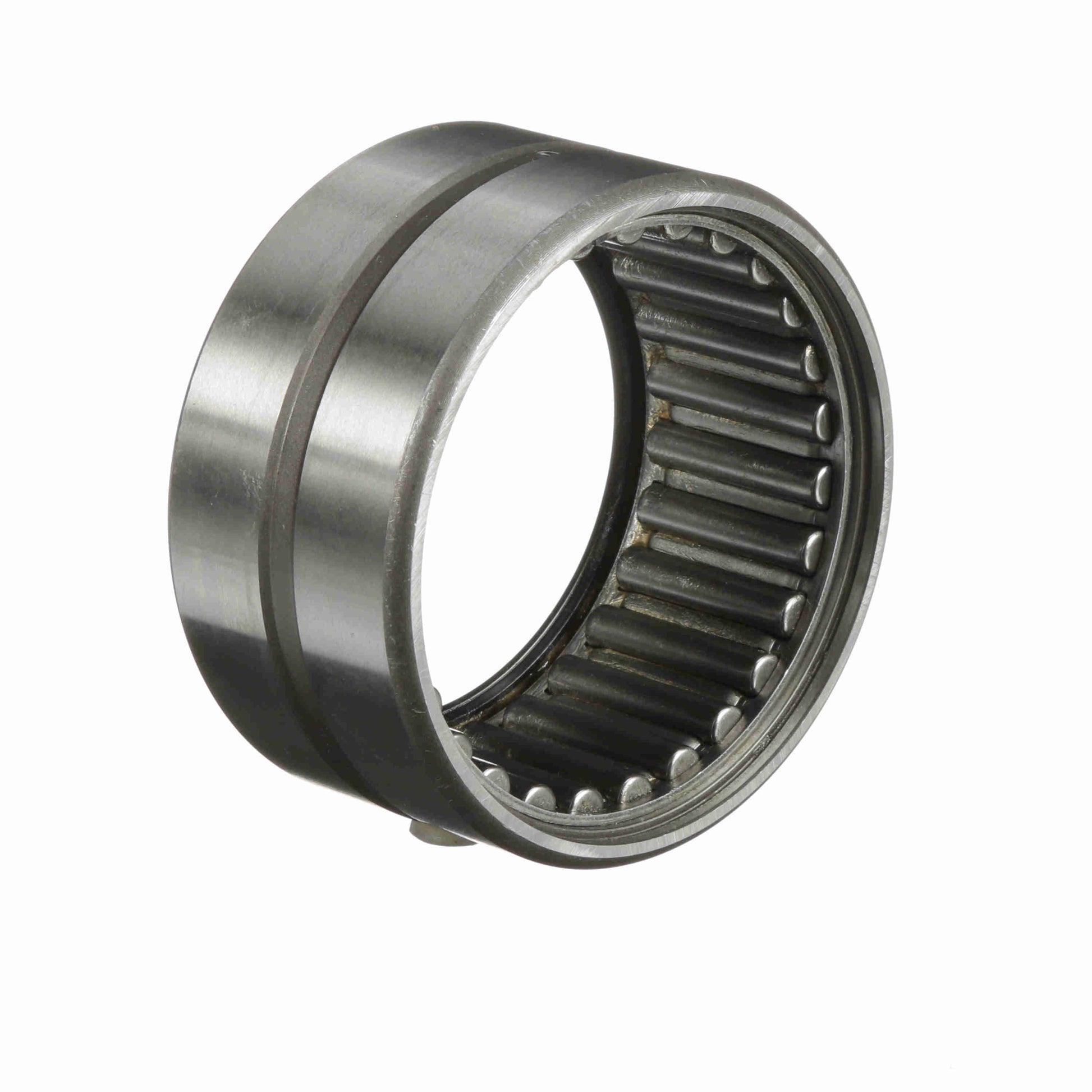

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 44 RS
General Specifications
| UPC: | 726166067892 | Weight: | 1.59 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.5 in |
| Hole Diameter: | 0.125 | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.7500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Static Load Rating (lb): | 46,700 lb | Full Complement/Caged: | Caged |
| Platform: | Cagerol Bearing | Dynamic Load Rating: | 24,500 |
| Sealed: | Sealed - One Side | Speed (Max) Grease: | 1,390 |
| Duplexing: | No | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 35, MI 36 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Separable: | Nonseparable |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Retainer: | Yes |
