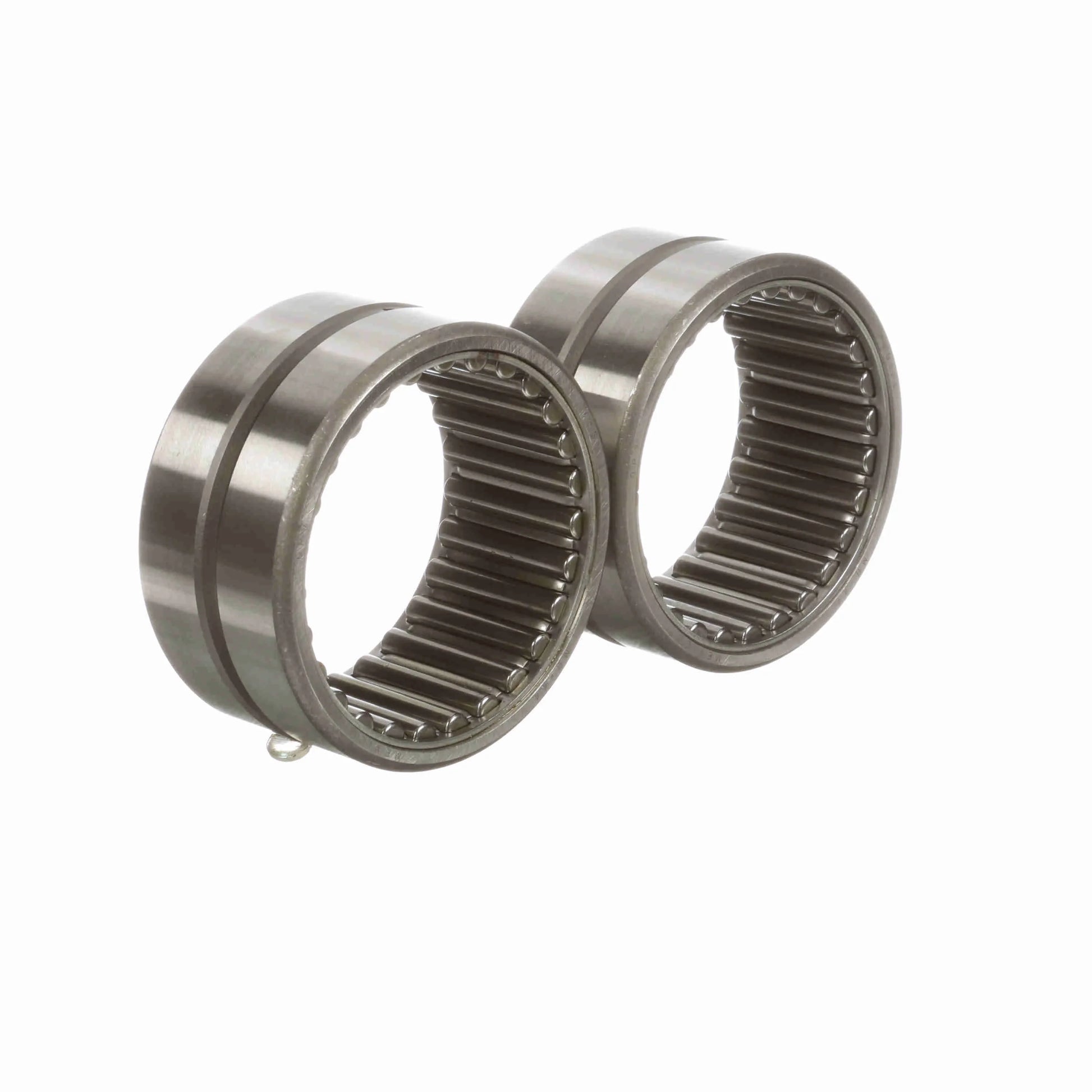

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 44 DS
General Specifications
| UPC: | 726166119850 | Weight: | 2.74 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.5 in |
| Hole Diameter: | 0.125 | Bore Size - Inch: | 2.7500 in |
| Housing & Shaft Fillet (in): | 0.8 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Seal Type: | Unsealed | Radial Clearance: | Normal |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Misalignment: | No | Bore Type: | Straight |
| Static Load Rating (lb): | 56,700 lb | Duplexing: | Yes |
| Speed (Max) Oil: | 4,370 | Dynamic Load Rating: | 46,900 |
| Speed (Max) Grease: | 2,185 | Platform: | Cagerol Bearing |
| Sealed: | None | Full Complement/Caged: | Caged |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
