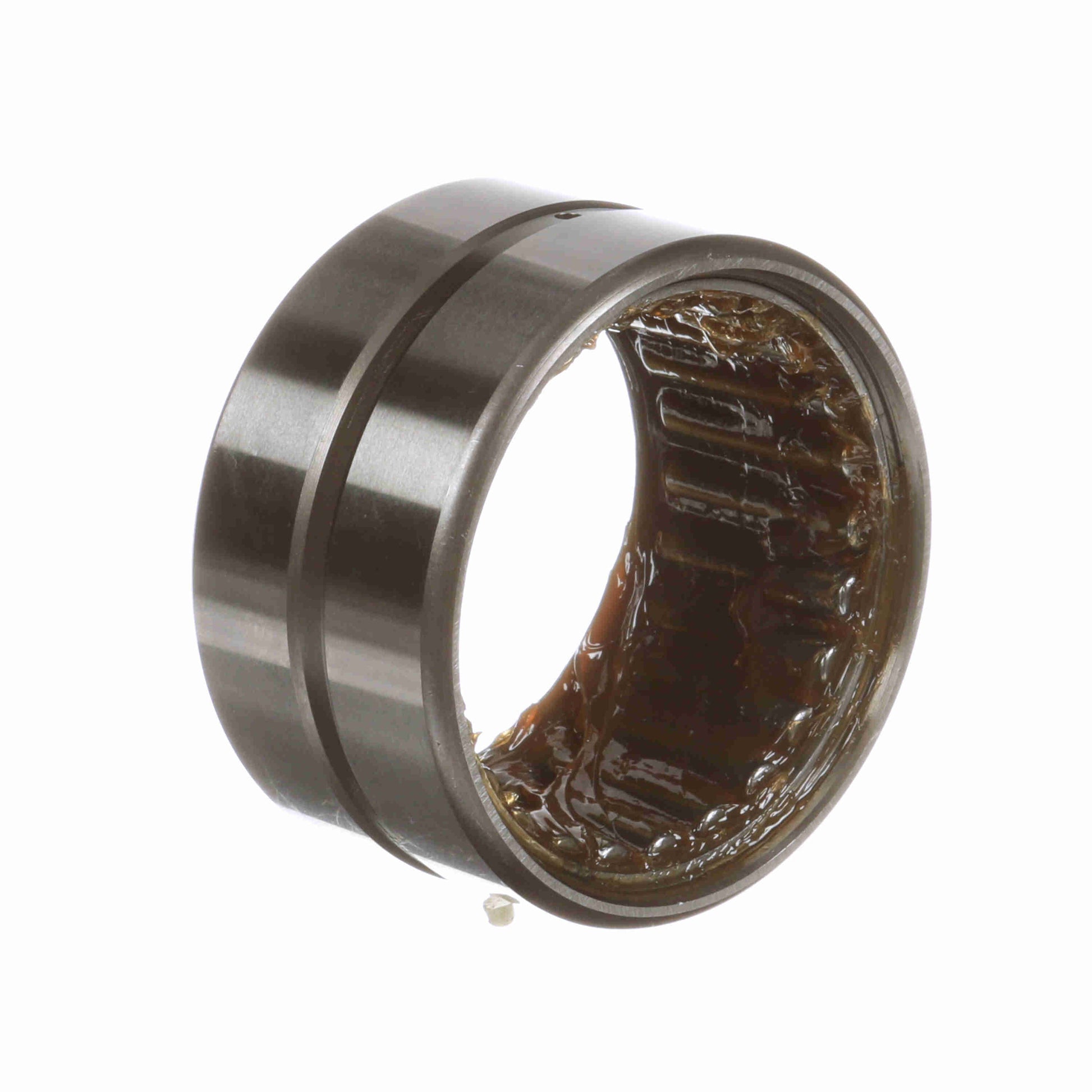

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 40 S
General Specifications
| UPC: | 726166067601 | Weight: | 1.16 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.125 | Bore Size - Inch: | 2.5000 in |
| Outside Diameter - Inch: | 3.25 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Misalignment: | No | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Speed (Max) Oil: | 1,530 | Full Complement/Caged: | Caged |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 42,900 lb |
| Duplexing: | No | Dynamic Load Rating: | 23,400 |
| Sealed: | Sealed - One Side | Speed (Max) Grease: | 750 |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 31, MI 32, MI 34 |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Separable: | Nonseparable |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Retainer: | Yes |
