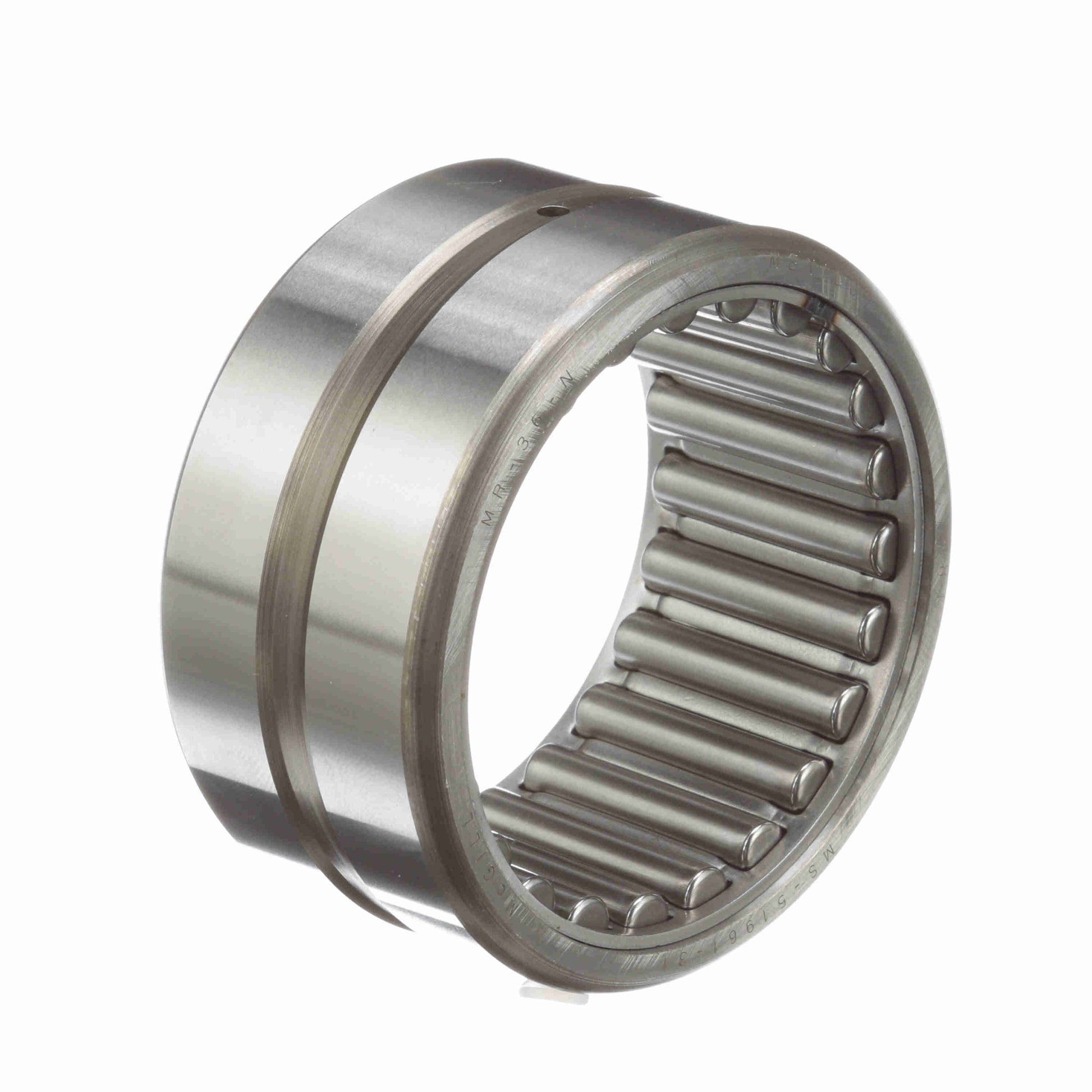

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 36 N
General Specifications
| UPC: | 726166067489 | Weight: | 0.98 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.5 | Outside Diameter - Inch: | 3 in |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 2.2500 in |
| Hole Diameter: | 0.125 |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Speed (Max) Grease: | 2,650 | Dynamic Load Rating: | 22,400 |
| Duplexing: | No | Sealed: | None |
| Full Complement/Caged: | Caged | Speed (Max) Oil: | 5,350 |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 39,100 lb |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 28 N |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO, MS 51961-31 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
