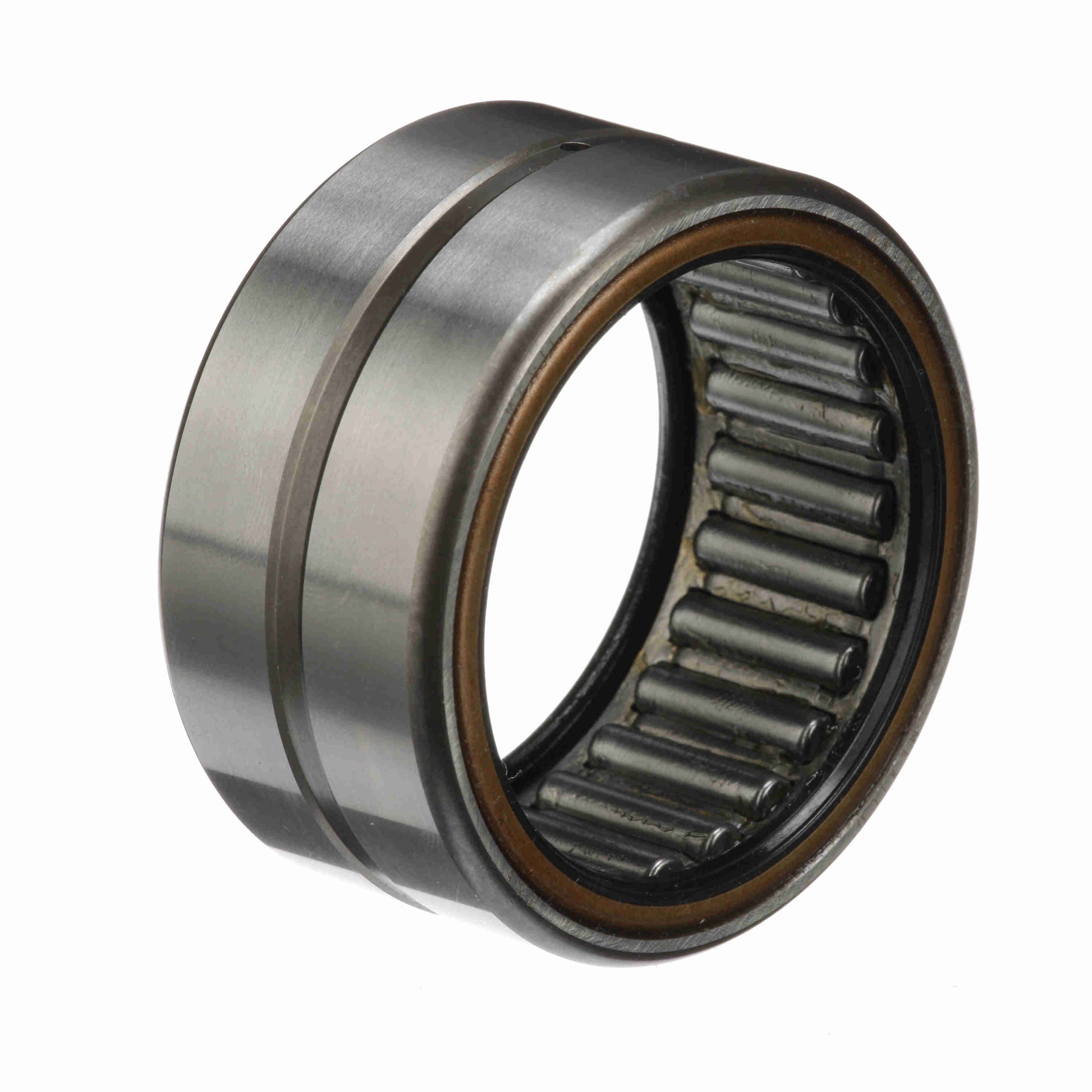

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 32 SS
General Specifications
| UPC: | 726166067229 | Weight: | 0.52 LB |
| Packaged Length: | 1.31 Inches | Packaged Width: | 2.62 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 | Outside Diameter - Inch: | 2.5625 in |
| Bore Size - Inch: | 2 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Dynamic Load Rating: | 12,000 | Static Load Rating (lb): | 20,700 lb |
| Sealed: | Sealed - Both Sides | Platform: | Cagerol Bearing |
| Duplexing: | No | Speed (Max) Grease: | 950 |
| Speed (Max) Oil: | 1,900 | Full Complement/Caged: | Caged |
| Flanges: | No flange | Related Inner Ring: | MI 25 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
