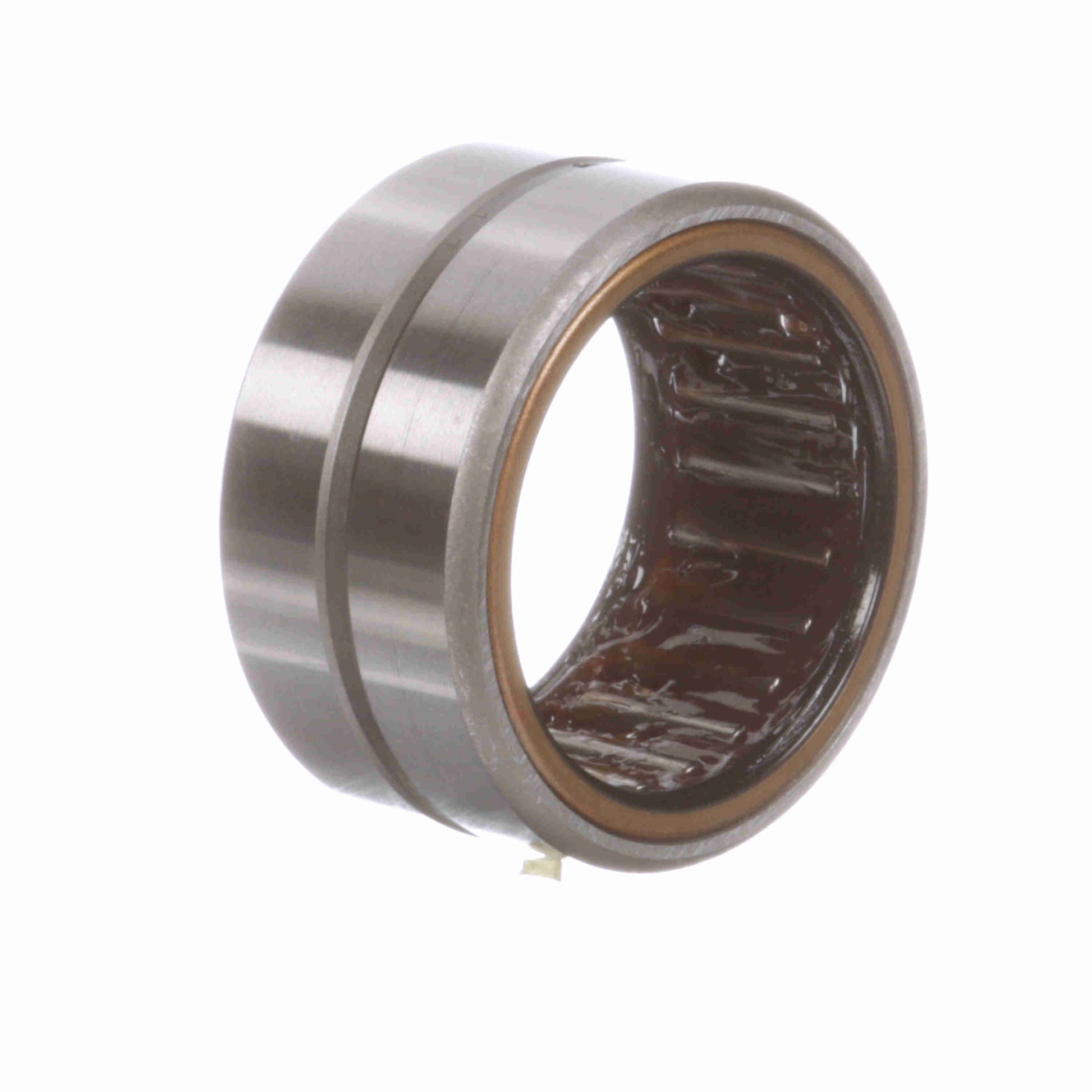

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 30 SRS
General Specifications
| UPC: | 726166067038 | Weight: | 0.52 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.4375 in |
| Housing & Shaft Fillet (in): | 0.06 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.8750 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | Steel |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Misalignment: | No | Number of Rows: | 1 |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Full Complement/Caged: | Caged | Speed (Max) Grease: | 1,000 |
| Static Load Rating (lb): | 19,000 lb | Sealed: | Sealed - Both Sides |
| Speed (Max) Oil: | 2,040 | Dynamic Load Rating: | 11,400 |
| Duplexing: | No | Platform: | Cagerol Bearing |
| Related Inner Ring: | MI 25 4 S | Lubrication Hole Type: | Lubrication groove and hole |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No flange |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | Yes |
