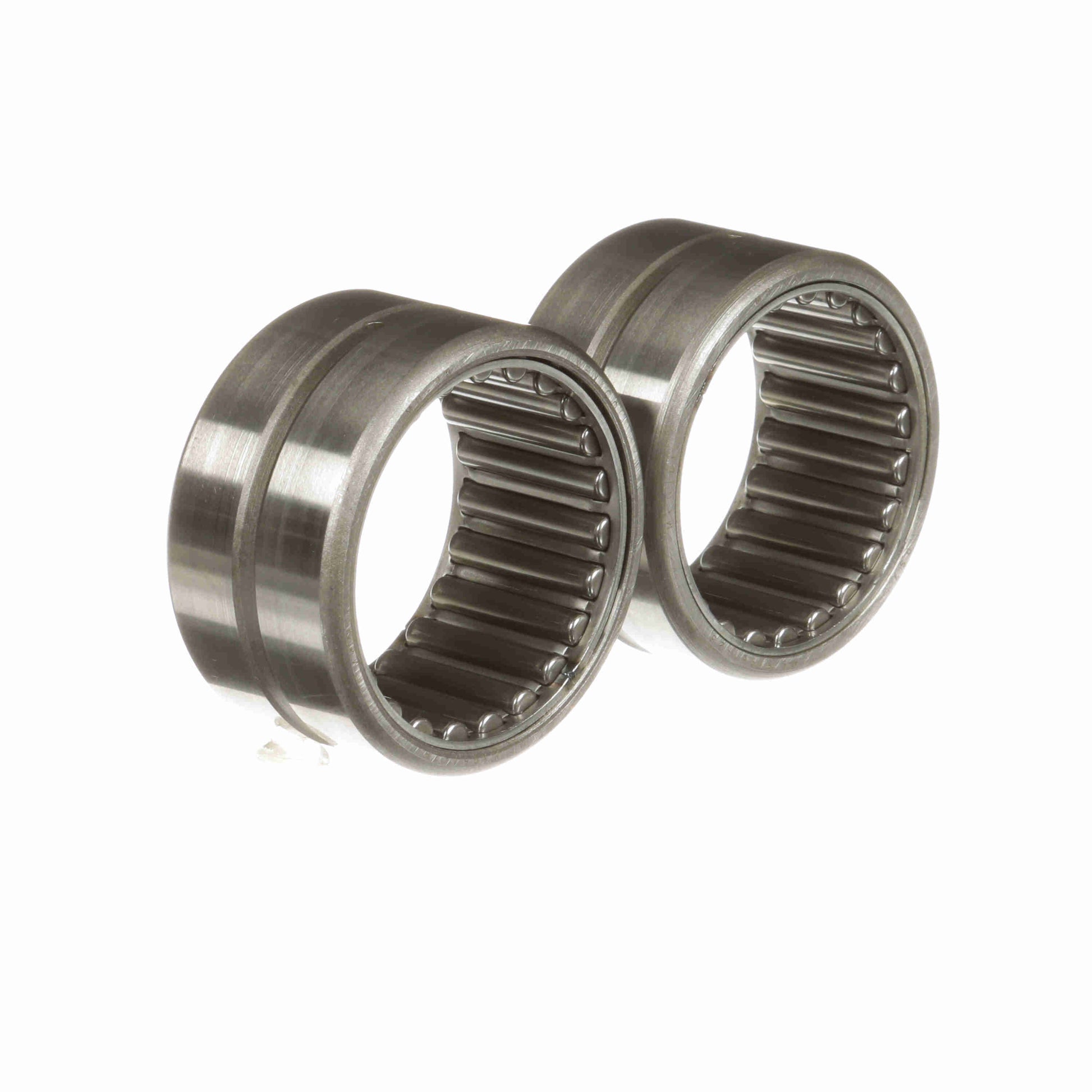

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 28 DS
General Specifications
| UPC: | 726166066758 | Weight: | 0.90 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 1.7500 in |
| Outside Diameter - Inch: | 2.3125 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 2 | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Misalignment: | No |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Speed (Max) Oil: | 6,850 | Sealed: | None |
| Speed (Max) Grease: | 3,400 | Dynamic Load Rating: | 23,300 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Duplexing: | Yes | Static Load Rating (lb): | 24,400 lb |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Flanges: | No Flanges | Related Inner Ring: | MI 23, MI 24 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
