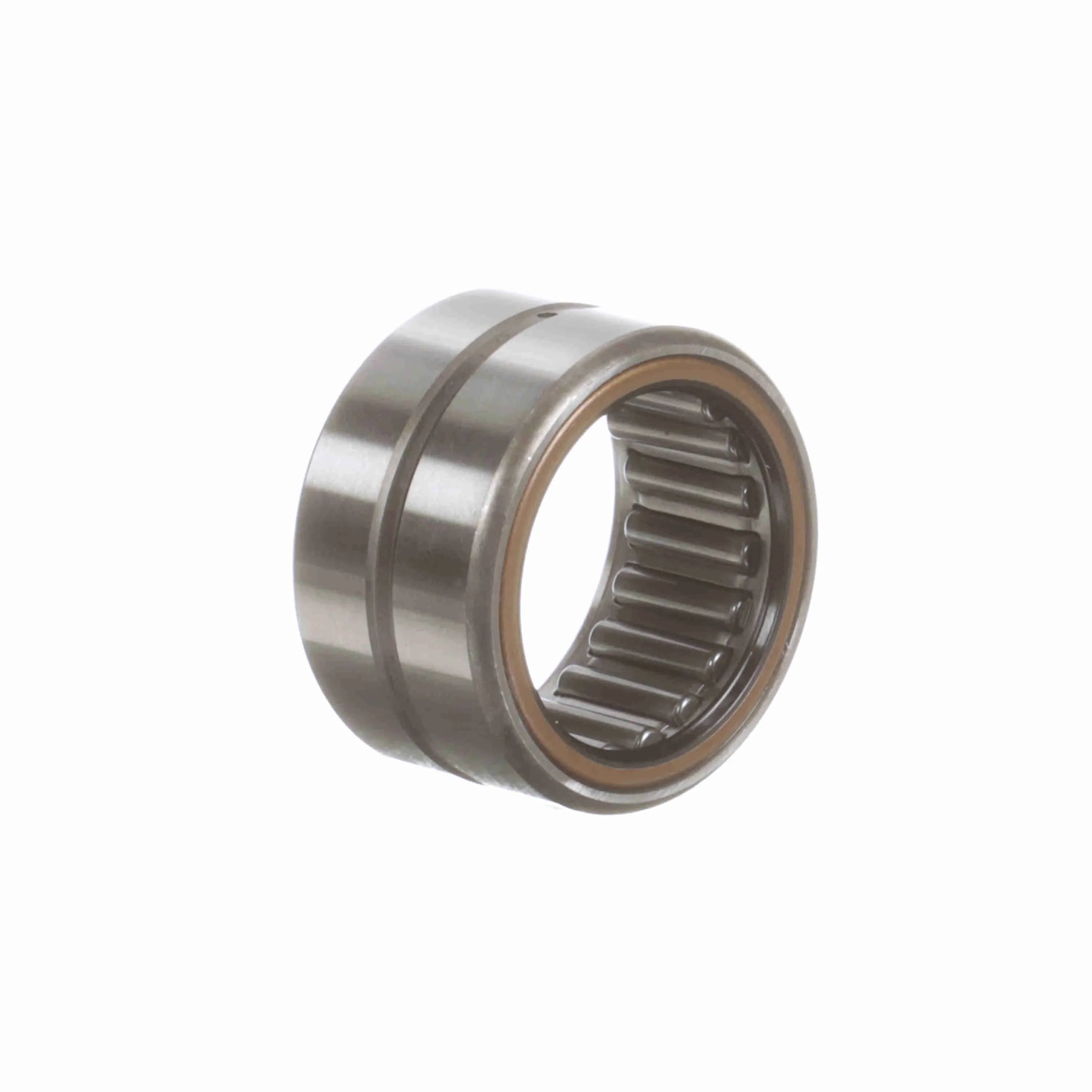

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 26 S PD
General Specifications
| UPC: | 726166097332 | Weight: | 0.40 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.6250 in |
| Outside Diameter - Inch: | 2.1875 in | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Misalignment: | No | Radial Clearance: | Normal |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Duplexing: | No | Dynamic Load Rating: | 10,600 |
| Full Complement/Caged: | Caged | Sealed: | Sealed - One Side |
| Platform: | Cagerol Bearing | Speed (Max) Grease: | 2,350 |
| Static Load Rating (lb): | 16,400 lb | Related Inner Ring: | MI 21 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed One Side |
| Retainer: | Yes |
