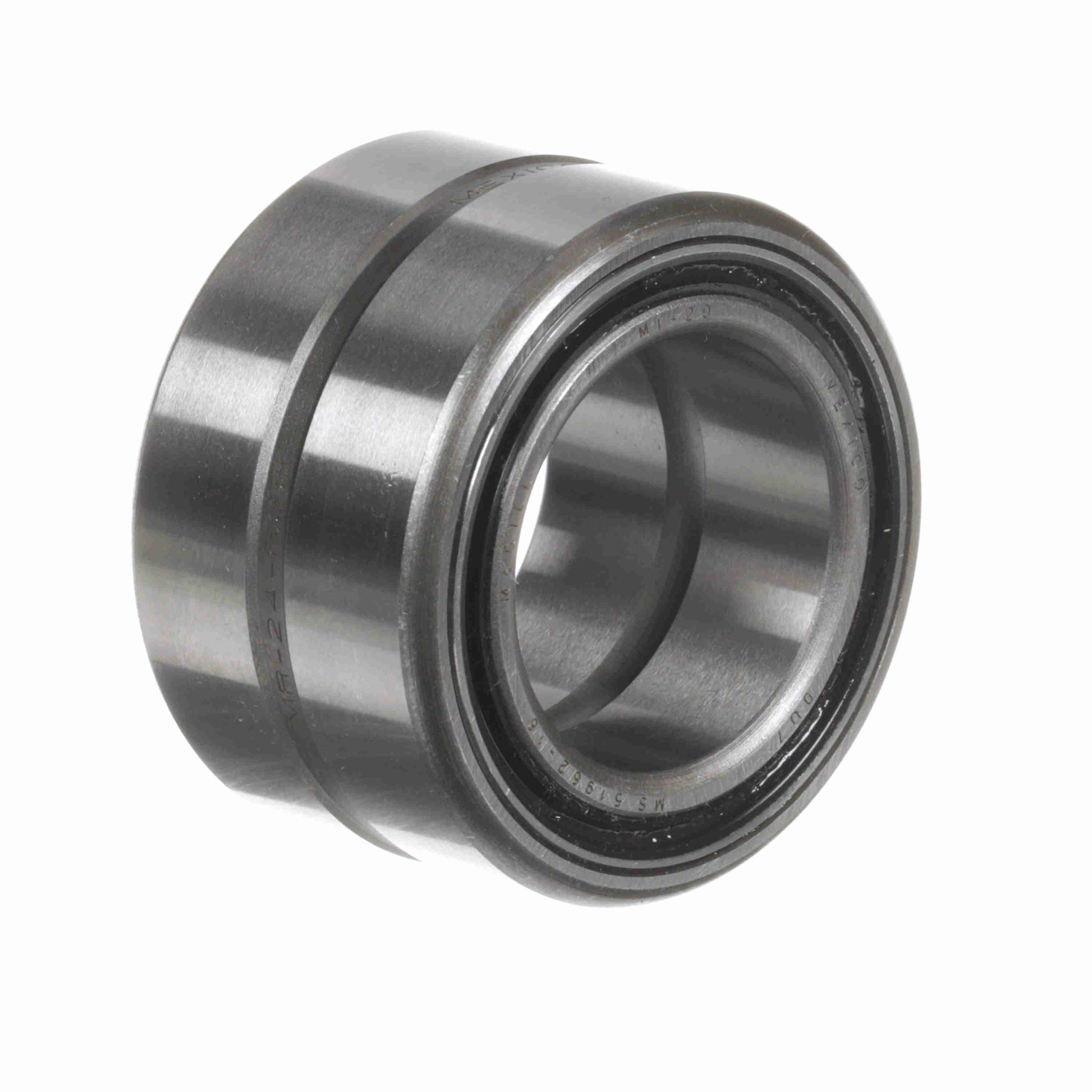

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (with inner) - Sealed - MR 24 RSS/MI 20
General Specifications
| UPC: | 726166120450 | Weight: | 0.62 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Inner Width: | 1.26 | Outer Width: | 1.25 |
| Housing & Shaft Fillet (in): | 0.06 in | Outside Diameter - Inch: | 2.0625 in |
| Hole Diameter: | 0.094 | Bore Size - Inch: | 1.2500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | Yes | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Radial Clearance: | Normal | Misalignment: | No |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Caged |
| Dynamic Load Rating: | 10,300 | Duplexing: | No |
| Static Load Rating (lb): | 15,500 lb | Speed (Max) Grease: | 2,550 |
| Platform: | Cagerol Bearing | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Inner ring - both sides |
| Retainer: | Yes |
