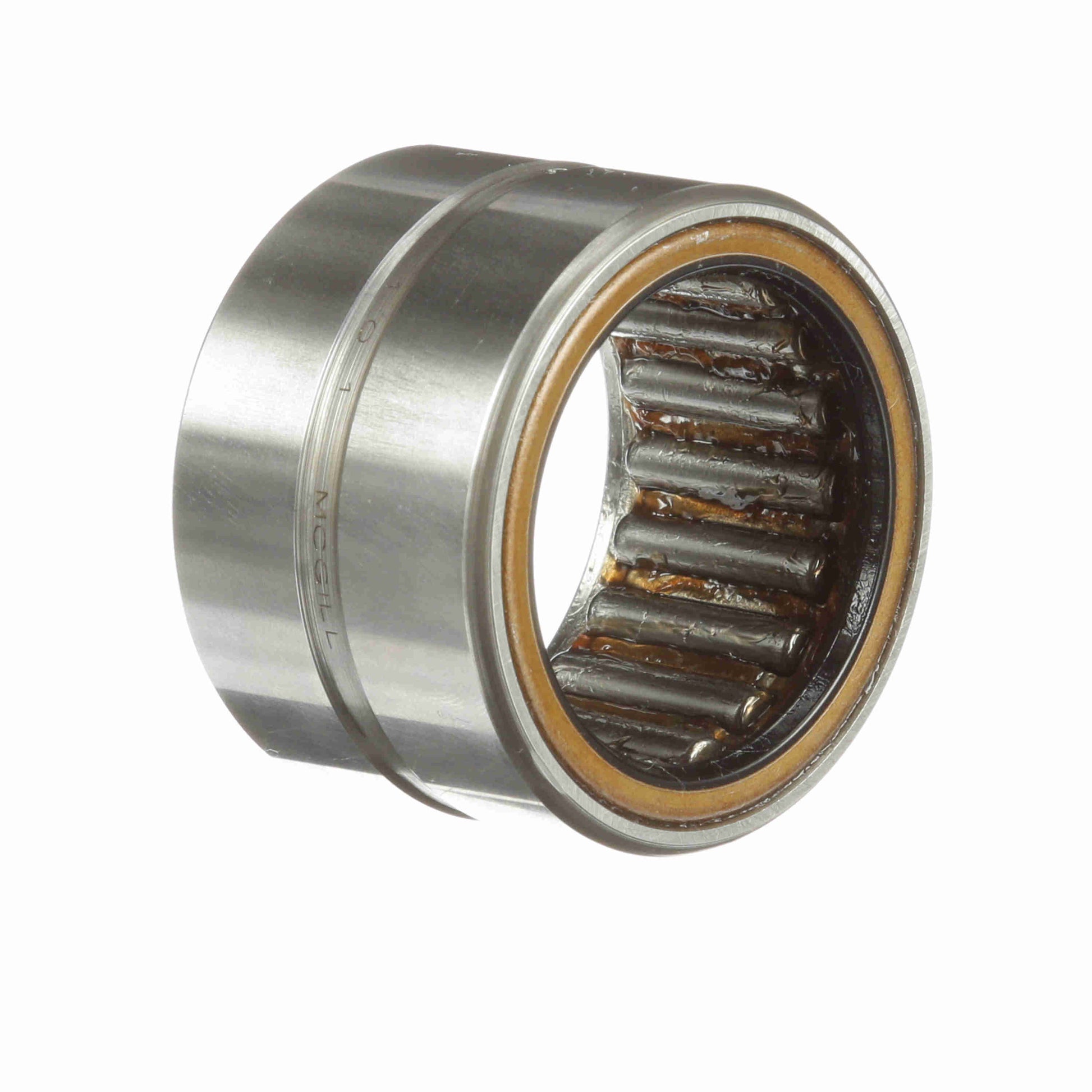

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 22 S
General Specifications
| UPC: | 726166066062 | Weight: | 0.73 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.3750 in |
| Housing & Shaft Fillet (in): | 0.04 in | Outside Diameter - Inch: | 1.875 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Number of Rows: | 1 | Bore Type: | Straight |
| Duplexing: | No | Platform: | Cagerol Bearing |
| Dynamic Load Rating: | 9,640 | Speed (Max) Grease: | 2,800 |
| Sealed: | Sealed - One Side | Static Load Rating (lb): | 14,700 lb |
| Full Complement/Caged: | Caged | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 17 |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Enclosure: | Sealed One Side |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | Yes |
