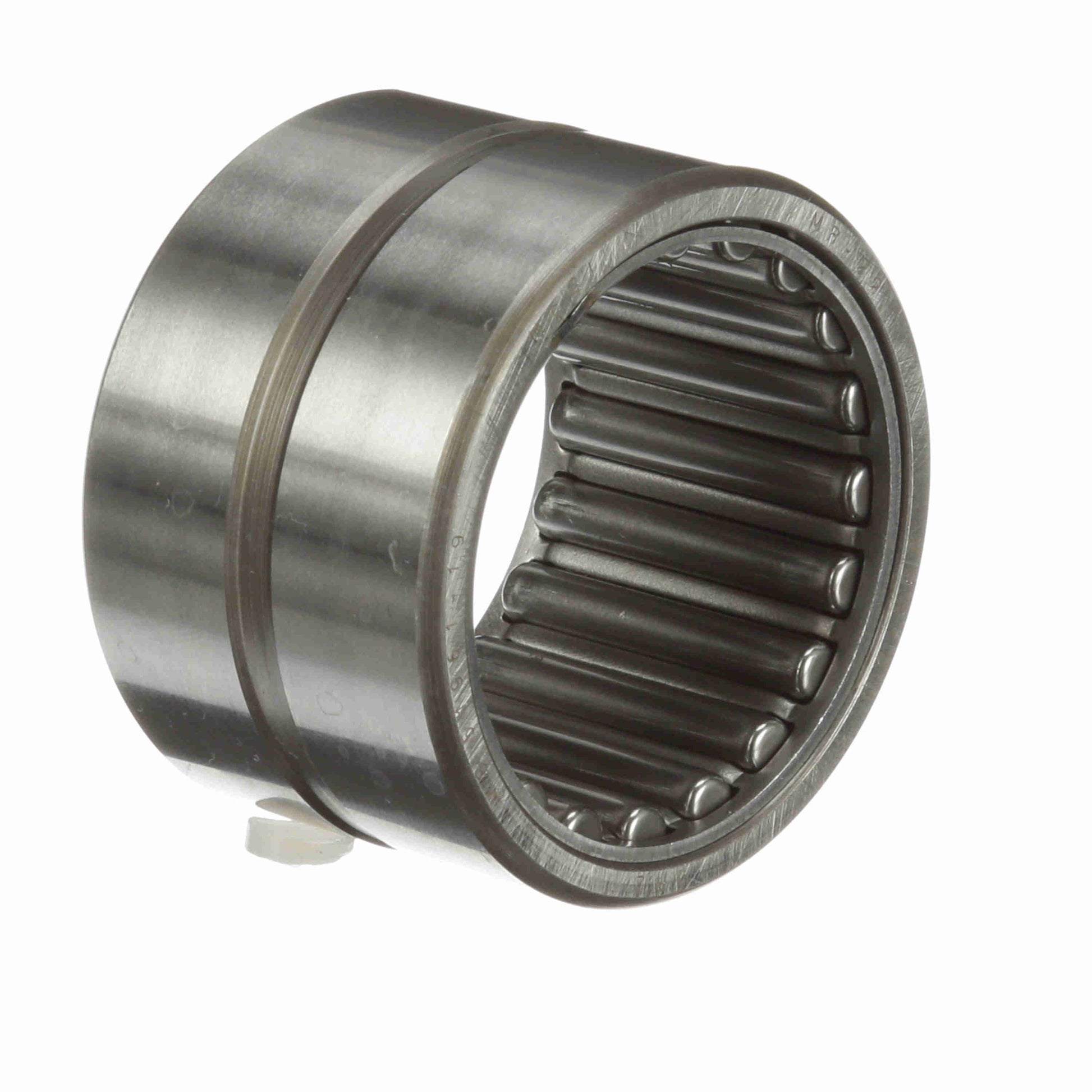

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 22
General Specifications
| UPC: | 726166066017 | Weight: | 0.34 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.094 | Bore Size - Inch: | 1.3750 in |
| Outside Diameter - Inch: | 1.875 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Misalignment: | No | Radial Clearance: | Normal |
| Sealed: | None | Dynamic Load Rating: | 12,100 |
| Speed (Max) Oil: | 8,750 | Duplexing: | No |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 19,700 lb |
| Full Complement/Caged: | Caged | Speed (Max) Grease: | 4,370 |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO, MS 51961-19 | Lubrication Hole Type: | Lubrication groove and hole |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 18 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
