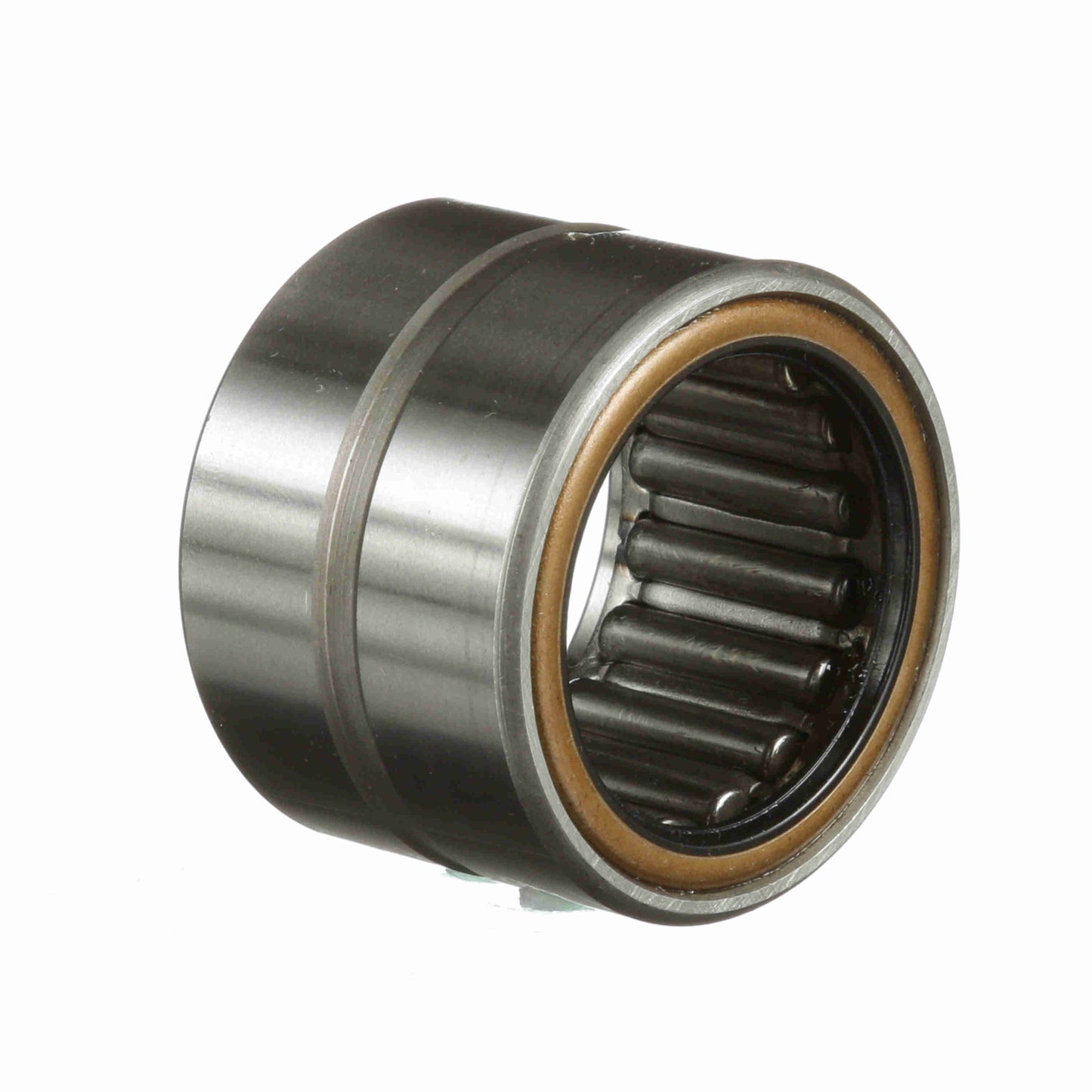

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 20 S
General Specifications
| UPC: | 726166065850 | Weight: | 0.31 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.2500 in |
| Outside Diameter - Inch: | 1.75 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Number of Rows: | 1 | Misalignment: | No |
| Dynamic Load Rating: | 9,020 | Full Complement/Caged: | Caged |
| Speed (Max) Grease: | 1,500 | Static Load Rating (lb): | 13,100 lb |
| Speed (Max) Oil: | 3,050 | Platform: | Cagerol Bearing |
| Duplexing: | No | Sealed: | Sealed - One Side |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Flanges: | No flange |
| Related Inner Ring: | MI 16 | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | Yes |
