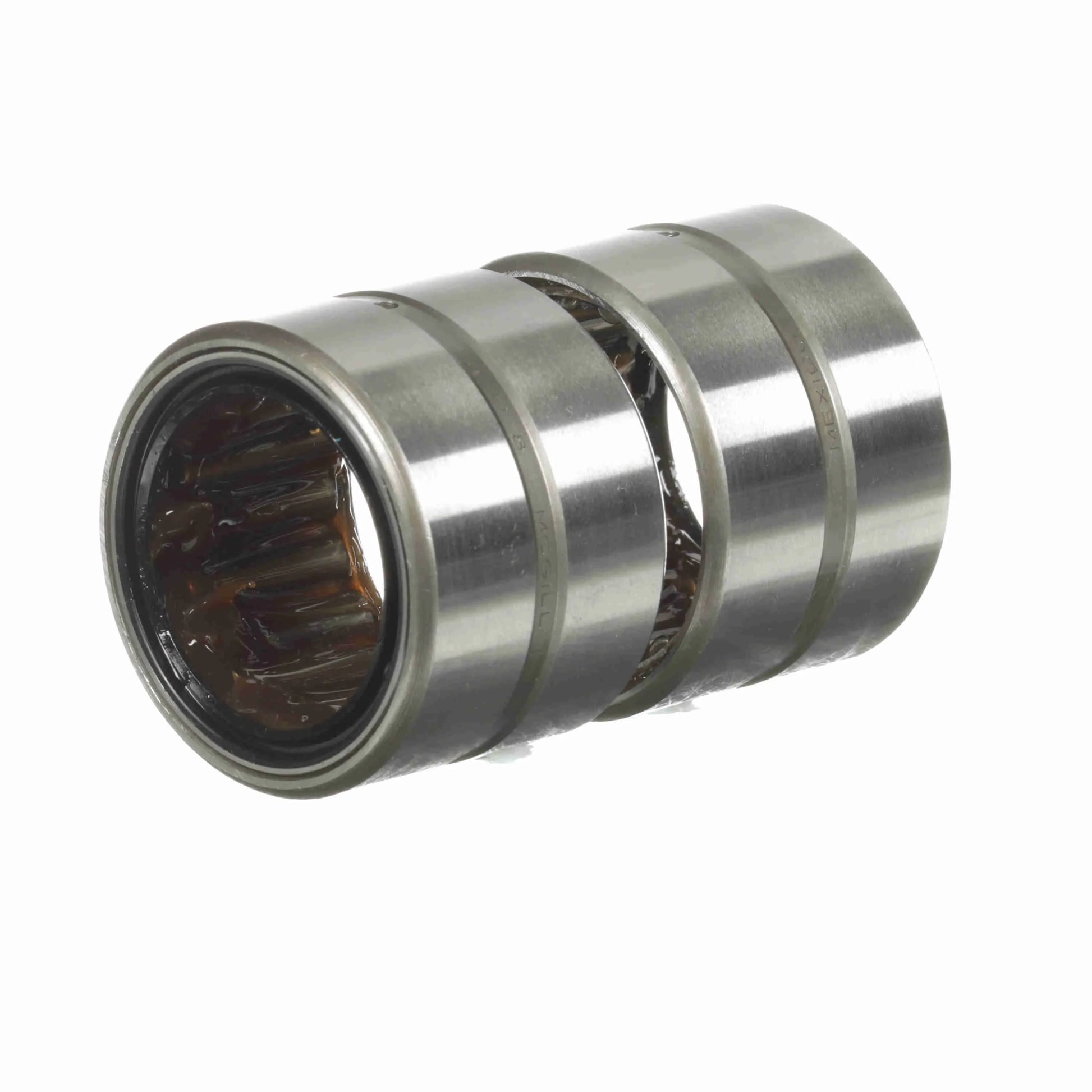

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 20 RS DS
General Specifications
| UPC: | 726166065911 | Weight: | 0.56 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.04 in | Outside Diameter - Inch: | 1.75 in |
| Bore Size - Inch: | 1.2500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Number of Rows: | 2 | Bore Type: | Straight |
| Radial Clearance: | Normal | Misalignment: | No |
| Speed (Max) Grease: | 3,050 | Dynamic Load Rating: | 14,900 |
| Duplexing: | Yes | Platform: | Cagerol Bearing |
| Full Complement/Caged: | Caged | Sealed: | None |
| Static Load Rating (lb): | 13,100 lb | Related Inner Ring: | MI 16 |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes |
