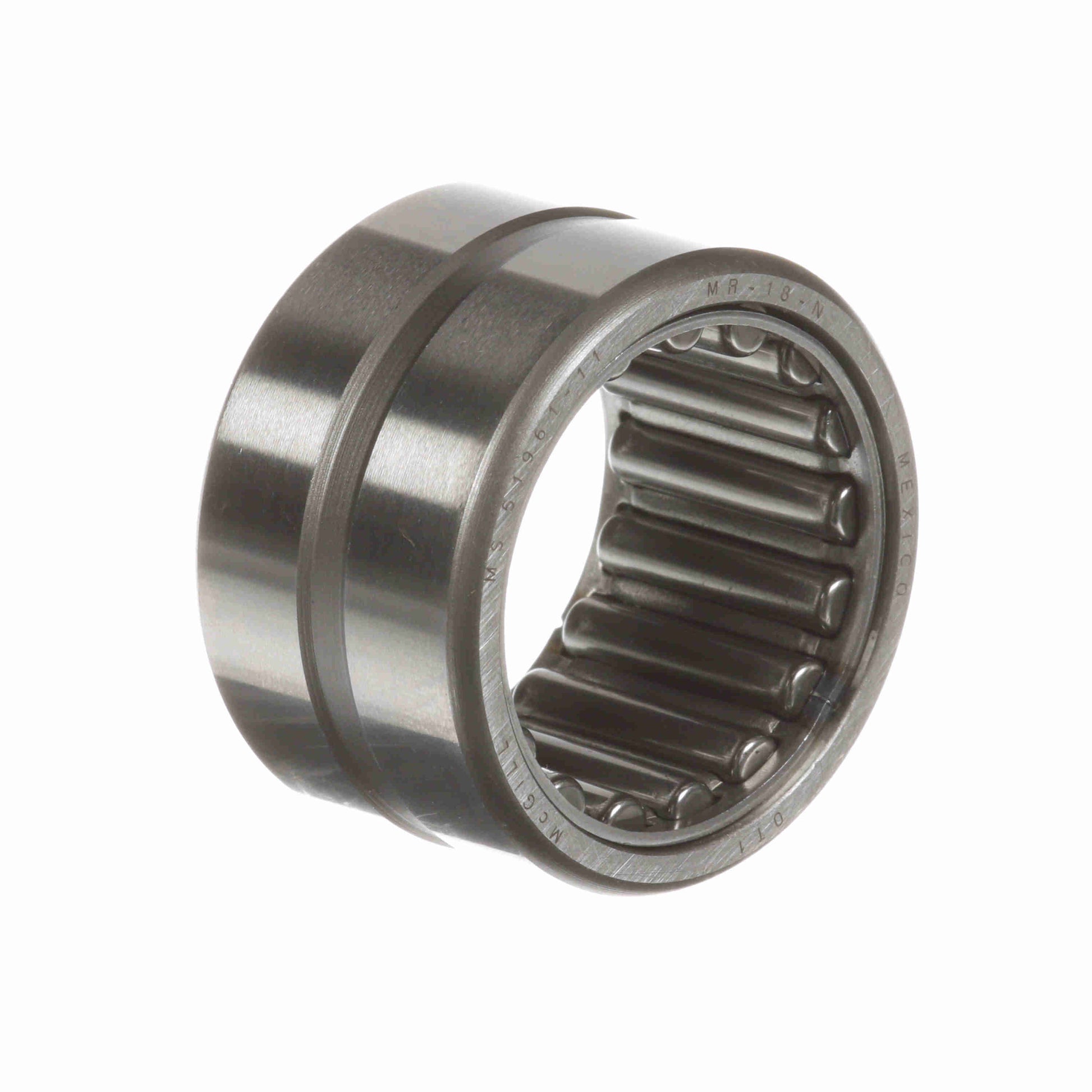

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 18 N
General Specifications
| UPC: | 726166065706 | Weight: | 0.23 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 1.1250 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 1.625 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Dynamic Load Rating: | 8,720 | Duplexing: | No |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Speed (Max) Oil: | 10,700 | Static Load Rating (lb): | 12,200 lb |
| Sealed: | None | Speed (Max) Grease: | 5,350 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 14 N, MI 15 N |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Enclosure: | Open | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | Yes |
