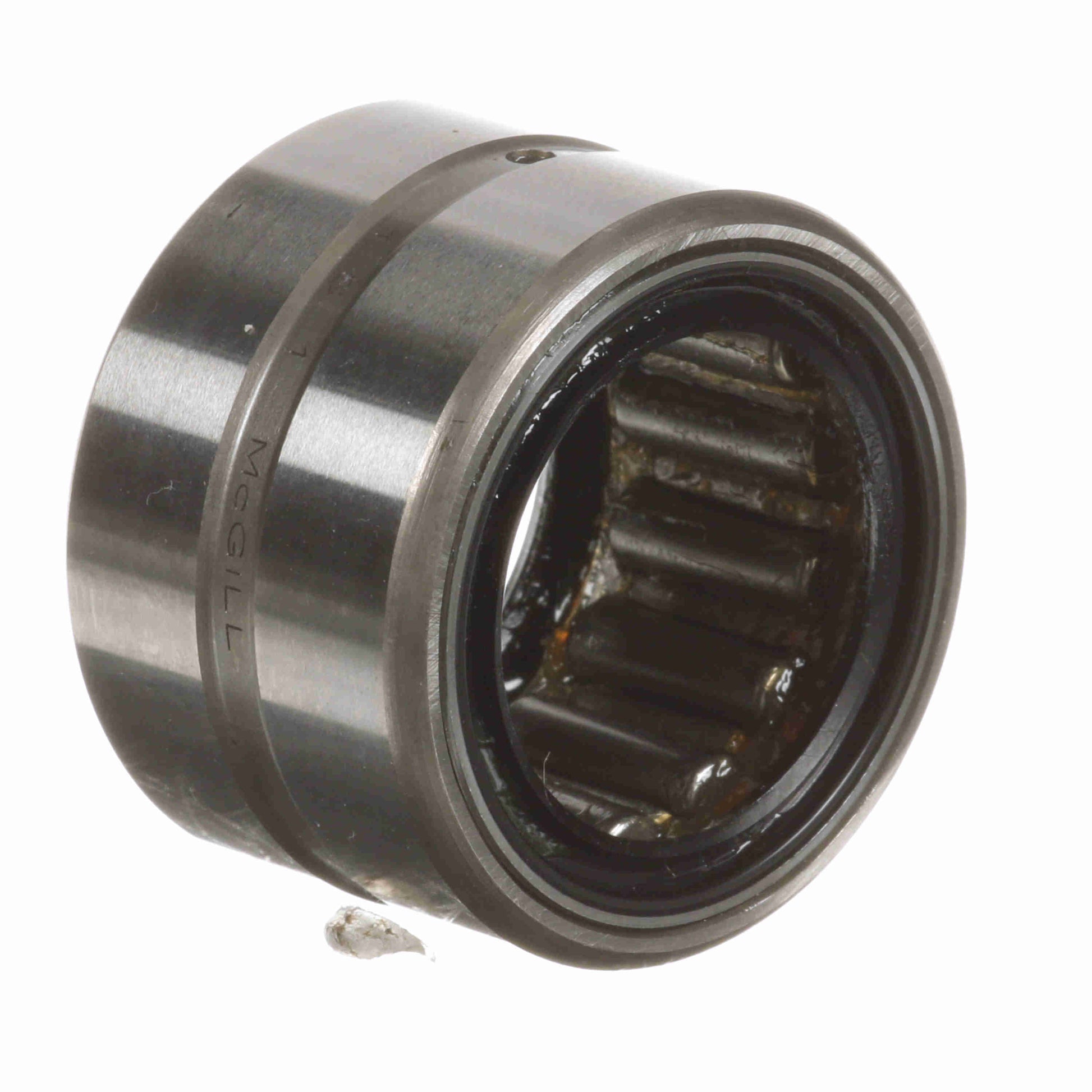

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 16 SRS
General Specifications
| UPC: | 726166065409 | Weight: | 0.21 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 1 in |
| Outside Diameter - Inch: | 1.5 in | Hole Diameter: | 0.079 |
| Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Misalignment: | No |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Duplexing: | No | Speed (Max) Grease: | 3,800 |
| Static Load Rating (lb): | 7,100 lb | Dynamic Load Rating: | 5,840 |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Caged |
| Platform: | Cagerol Bearing | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Standard Met: | ABMA, ISO |
| Related Inner Ring: | MI 12 | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Retainer: | Yes |
