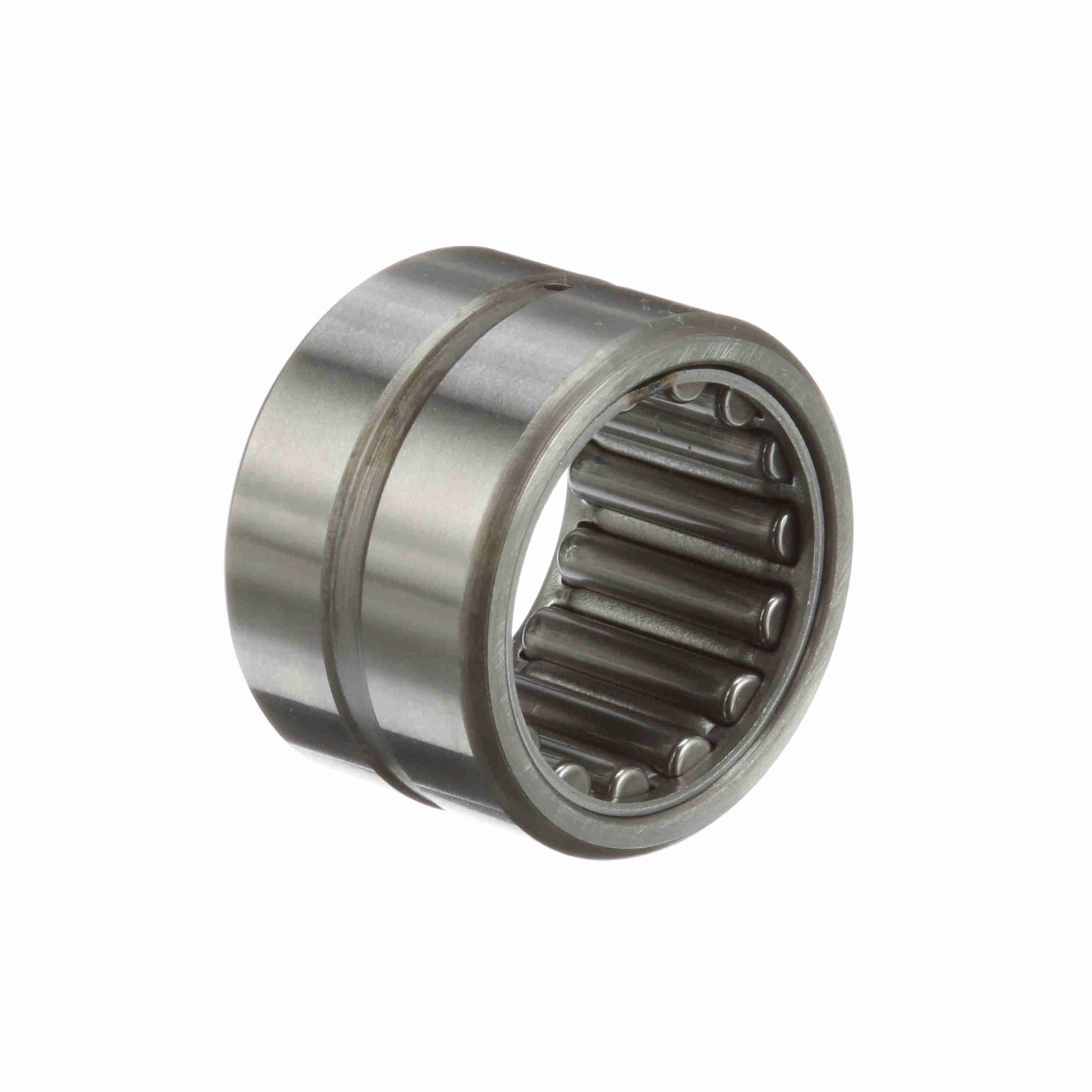

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 16
General Specifications
| UPC: | 726166065324 | Weight: | 0.22 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 1 in |
| Outside Diameter - Inch: | 1.5 in | Hole Diameter: | 0.079 |
| Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Misalignment: | No | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Platform: | Cagerol Bearing | Speed (Max) Oil: | 12,000 |
| Static Load Rating (lb): | 10,600 lb | Dynamic Load Rating: | 8,000 |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Sealed: | None | Speed (Max) Grease: | 6,000 |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO, MS 51961-9 |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 13 |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
