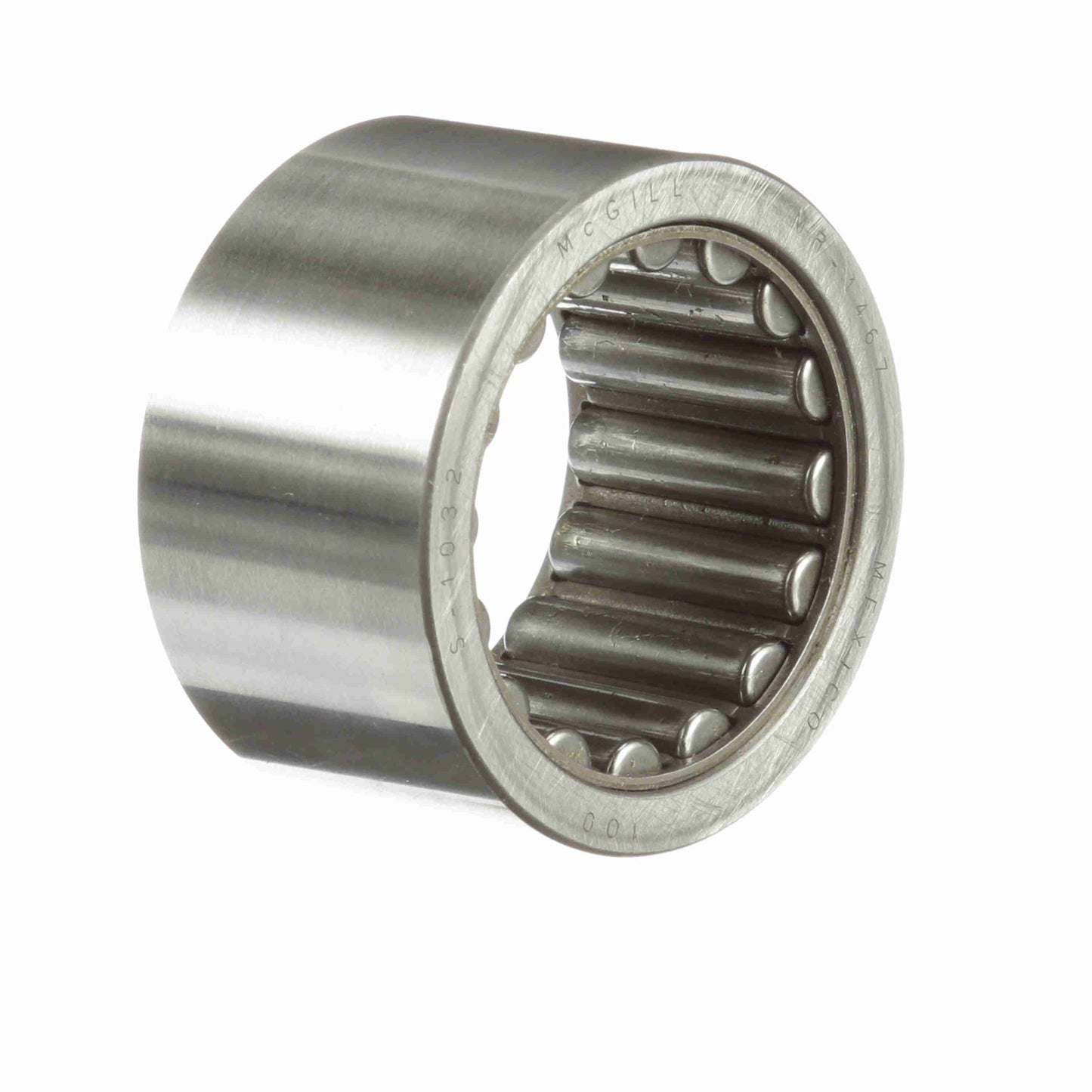

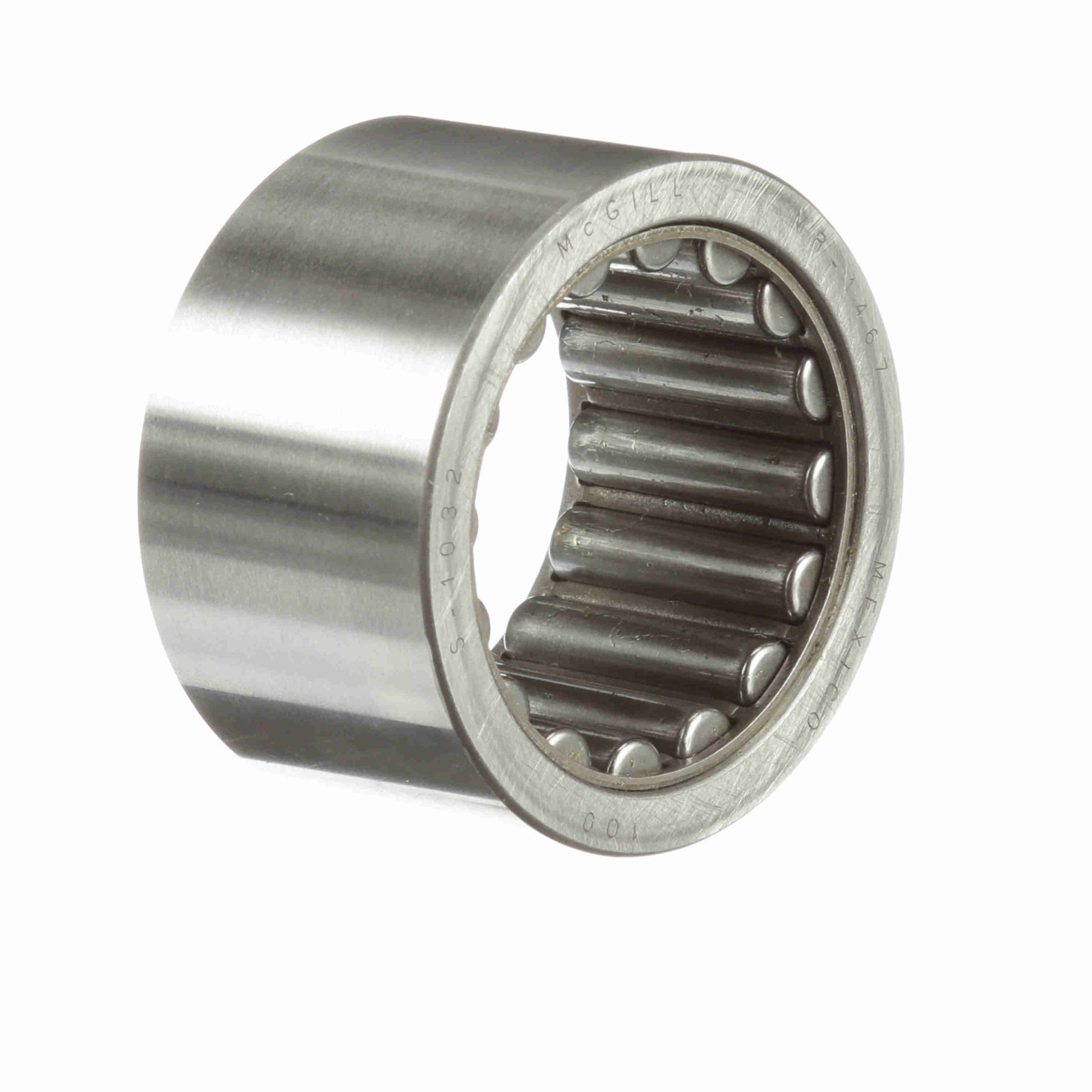

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 1467 YH
General Specifications
| UPC: | 726166068257 | Weight: | 0.40 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.123 | Housing & Shaft Fillet (in): | 0.025 in |
| Bore Size - Inch: | 1.2915 in | Outside Diameter - Inch: | 1.9373 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Misalignment: | No | Bore Type: | Straight |
| Seal Type: | Unsealed | Rolling Element: | Needle Roller |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 18,000 lb |
| Dynamic Load Rating: | 12,460 | Speed (Max) Grease: | 4,500 |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Speed (Max) Oil: | 9,000 | Sealed: | None |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
