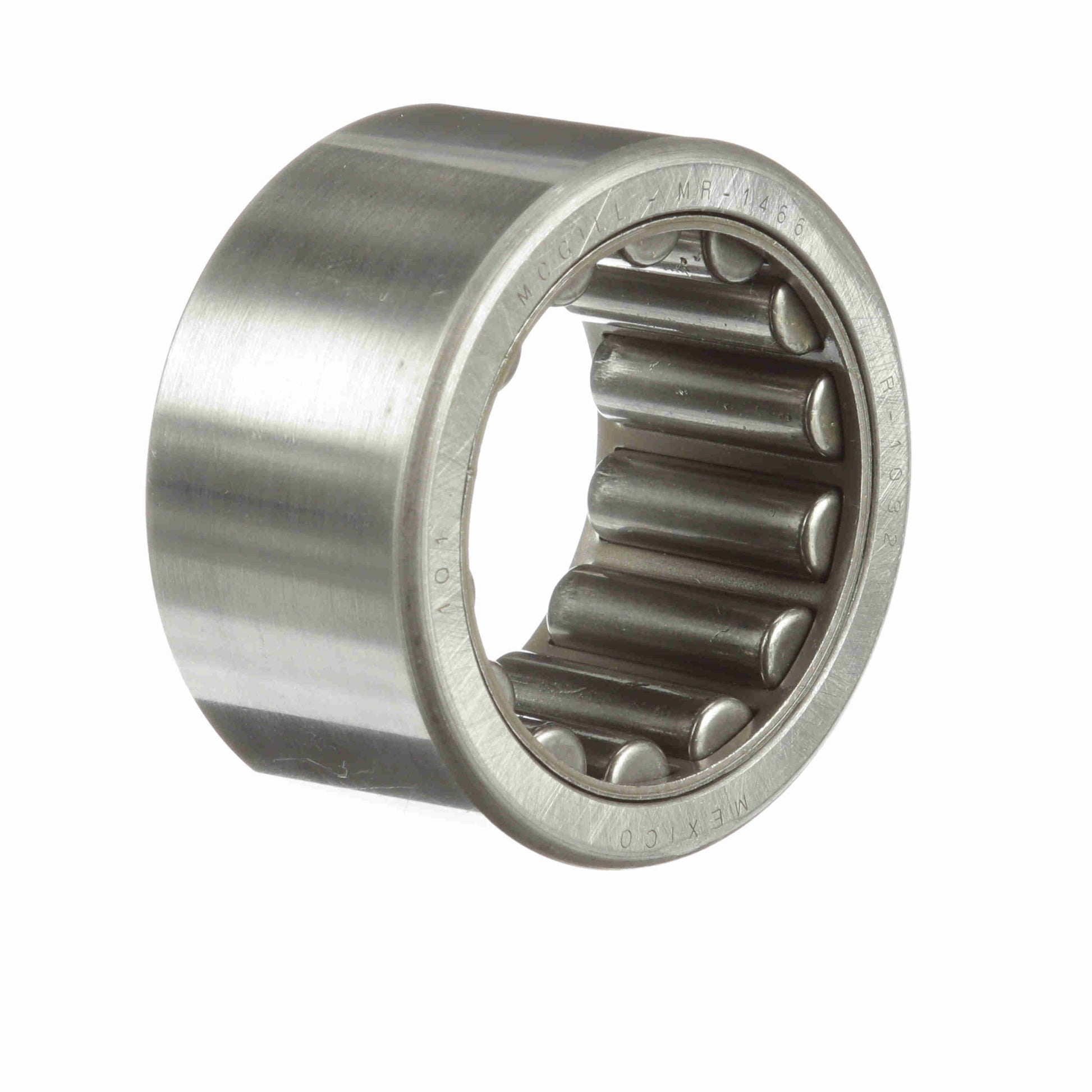

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 1466
General Specifications
| UPC: | 726166068202 | Weight: | 0.61 LB |
| Packaged Length: | 2.32 Inches | Packaged Width: | 2.32 Inches |
| Packaged Height: | 1.25 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.248 | Housing & Shaft Fillet (in): | 0.07 in |
| Outside Diameter - Inch: | 2.3218 in | Bore Size - Inch: | 1.5015 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Speed (Max) Oil: | 8,000 | Full Complement/Caged: | Caged |
| Speed (Max) Grease: | 4,000 | Dynamic Load Rating: | 18,200 |
| Duplexing: | No | Sealed: | None |
| Static Load Rating (lb): | 23,000 lb | Platform: | Cagerol Bearing |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
