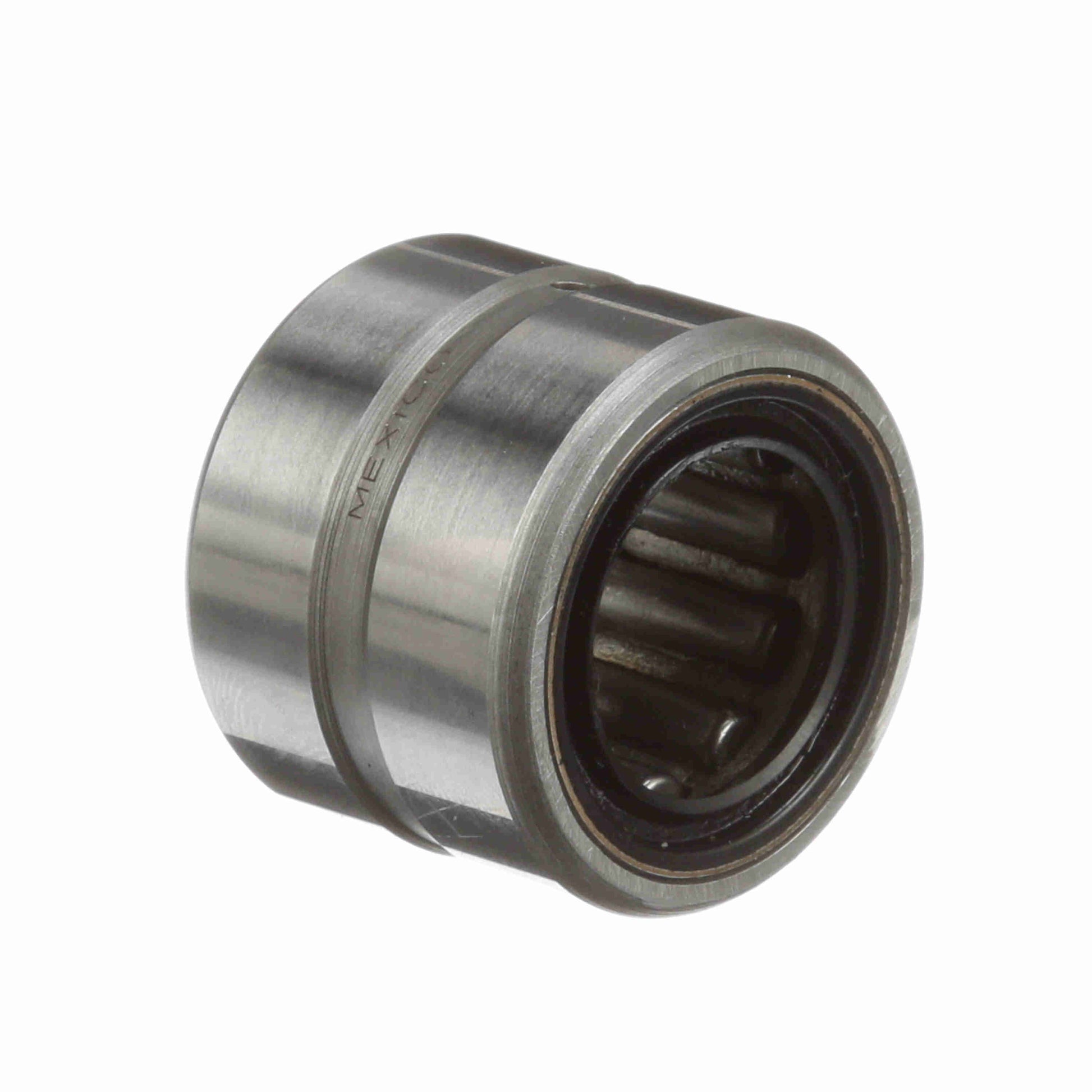

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 12 RSS
General Specifications
| UPC: | 726166065058 | Weight: | 0.17 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.079 | Outside Diameter - Inch: | 1.25 in |
| Bore Size - Inch: | 0.7500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Number of Rows: | 1 | Bore Type: | Straight |
| Speed (Max) Grease: | 2,550 | Duplexing: | No |
| Full Complement/Caged: | Caged | Dynamic Load Rating: | 4,990 |
| Static Load Rating (lb): | 5,400 lb | Platform: | Cagerol Bearing |
| Sealed: | Sealed - Both Sides | Speed (Max) Oil: | 5,100 |
| Related Inner Ring: | MI 8 | Flanges: | No flange |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | Yes |
