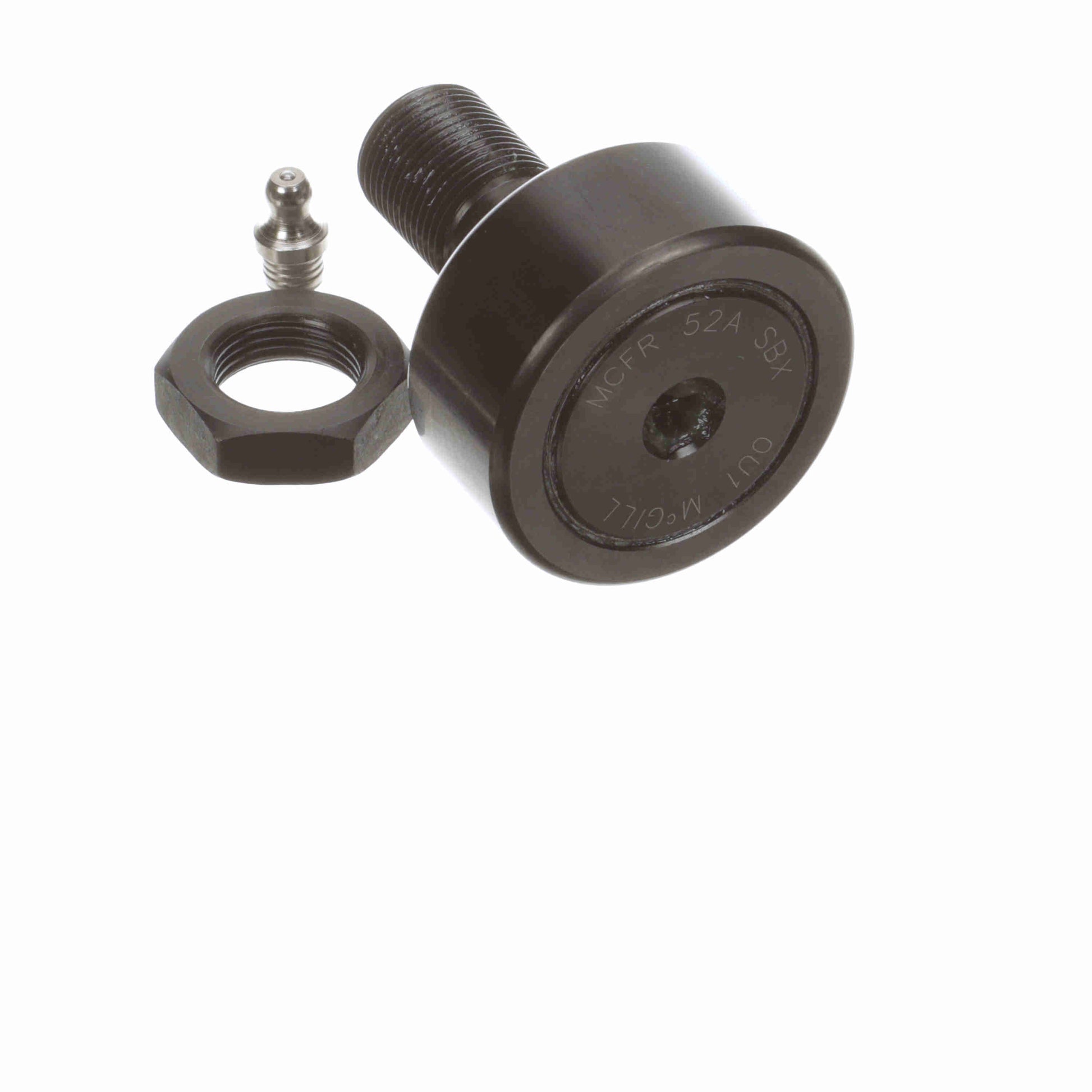

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Hex Hole - Sealed - MCFR 52A SBX
General Specifications
| UPC: | 726166024406 | Weight: | 1.13 LB |
| Packaged Length: | 2.76 Inches | Packaged Width: | 2.21 Inches |
| Packaged Height: | 2.21 Inches | Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Stud Diameter - mm: | 20 mm |
| Hex Socket - mm: | 10 mm | Overall Length - mm: | 66 mm |
| Roller Width - mm: | 24 mm | Minimum Thread Length: | 22 |
| Lubrication Fitting Size - Metric: | 8 | Roller Diameter - mm: | 52 mm |
| Reamed Hole - mm: | 8 mm | Oil Hole Center - mm: | 12 mm |
| Oil Hole Diameter - mm: | 4 mm | Stud Length - mm: | 40.5 mm |
Technical Specifications
| Rolling Element: | Needle Roller - Caged | Dynamic Track Roller Load Rating (N): | 17,750 N |
| Limiting Speed: | 3,900 | Adjustment: | None |
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
| Hex/Slot: | Hex Hole | Dynamic Radial Rating: | 3,991 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Clamping Torque - Nm: | 118 | Dynamic Load Rating - lb: | 3,900 |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud |
| Industry Standard: | JIS | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Static Load Rating: | 29,800 |
| Dynamic Load Rating - N: | 21,280 | Static Track Roller Load Rating: | 29,800 |
| Lubrication Hole Location: | Stud side |
