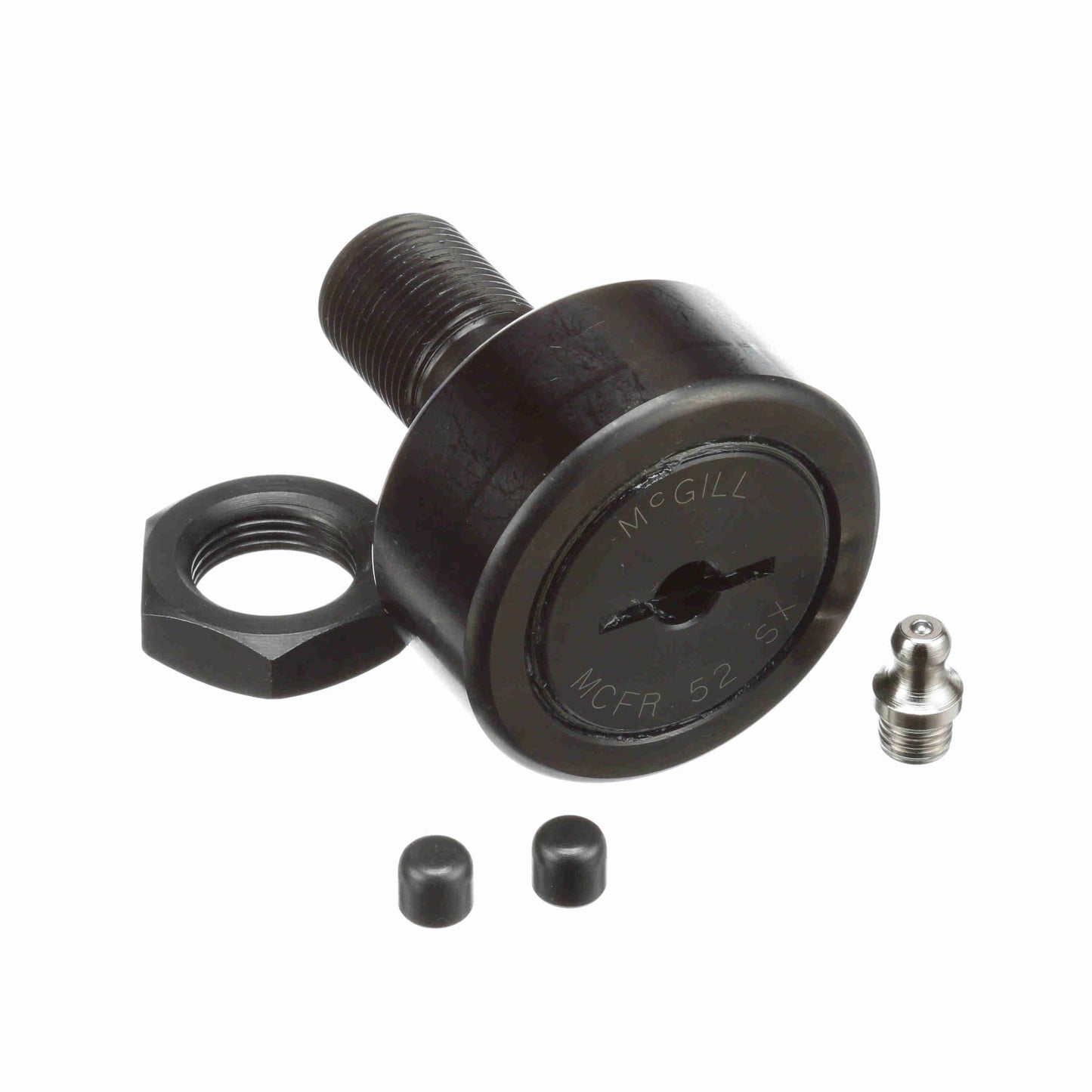

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 52 SX
General Specifications
| UPC: | 726166024048 | Weight: | 1.58 LB |
| Packaged Length: | 2.3 Inches | Packaged Width: | 2.7 Inches |
| Packaged Height: | 2.2 Inches | Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Stud Length - mm: | 40.5 mm |
| Overall Length - mm: | 66 mm | Reamed Hole - mm: | 8 mm |
| Oil Hole Diameter - mm: | 4 mm | Stud Diameter - mm: | 20 mm |
| Oil Hole Center - mm: | 9 mm | Roller Diameter - mm: | 52 mm |
| Roller Width - mm: | 24 mm | Lubrication Fitting Size - Metric: | 8 |
| Minimum Thread Length: | 21 |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | O.D. Configuration: | Cylindrical |
| Adjustment: | None | Dynamic Track Roller Load Rating (N): | 17,750 N |
| Sealing: | Sealed | Dynamic Radial Rating: | 3,991 |
| Rolling Element: | Needle Roller - Caged | Limiting Speed: | 3,900 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 29,800 | Stud Type: | Standard Stud |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - lb: | 3,900 |
| Platform: | CAMROL® | Clamping Torque - Nm: | 118 |
| Static Track Roller Load Rating: | 29,800 | Industry Standard: | DIN |
| Roller Shape: | Cylindrical | Dynamic Load Rating - N: | 21,280 |
| Lubrication Hole Location: | Stud side |
