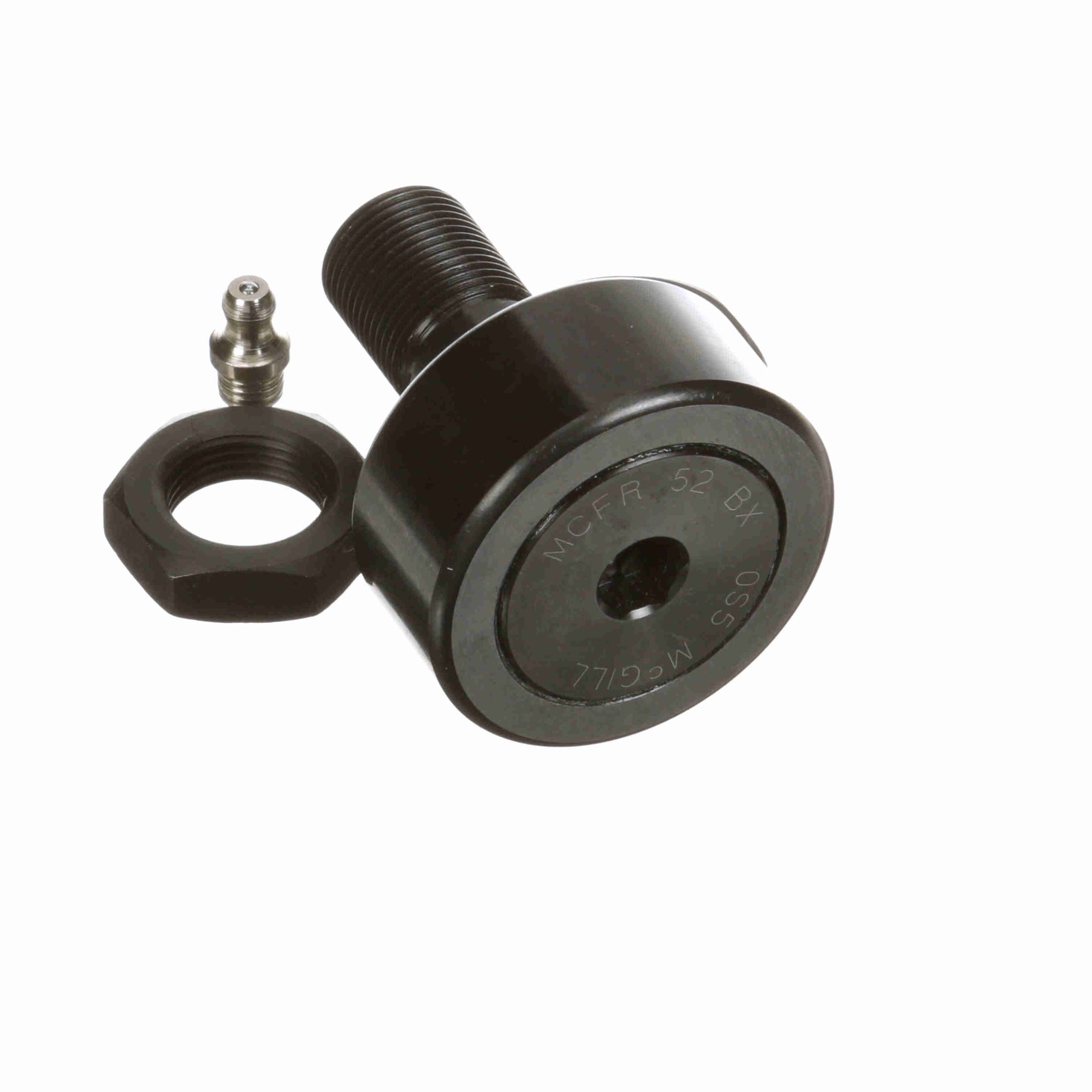

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Hex Hole - MCFR 52 BX
General Specifications
| UPC: | 726166024475 | Weight: | 1.17 LB |
| Packaged Length: | 2.76 Inches | Packaged Width: | 2.21 Inches |
| Packaged Height: | 2.21 Inches | Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Hex Socket - mm: | 10 mm |
| Oil Hole Center - mm: | 9 mm | Roller Width - mm: | 24 mm |
| Minimum Thread Length: | 21 | Lubrication Fitting Size - Metric: | 8 |
| Stud Diameter - mm: | 20 mm | Oil Hole Diameter - mm: | 4 mm |
| Overall Length - mm: | 66 mm | Roller Diameter - mm: | 52 mm |
| Reamed Hole - mm: | 8 mm | Stud Length - mm: | 40.5 mm |
Technical Specifications
| Limiting Speed: | 3,900 | Sealing: | Unsealed |
| Dynamic Radial Rating: | 3,991 | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Dynamic Track Roller Load Rating (N): | 17,750 N |
| Rolling Element: | Needle Roller - Caged | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Industry Standard: | DIN |
| Clamping Torque - Nm: | 118 | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - N: | 21,280 |
| Static Load Rating: | 29,800 | Roller Shape: | Cylindrical |
| Static Track Roller Load Rating: | 29,800 |
