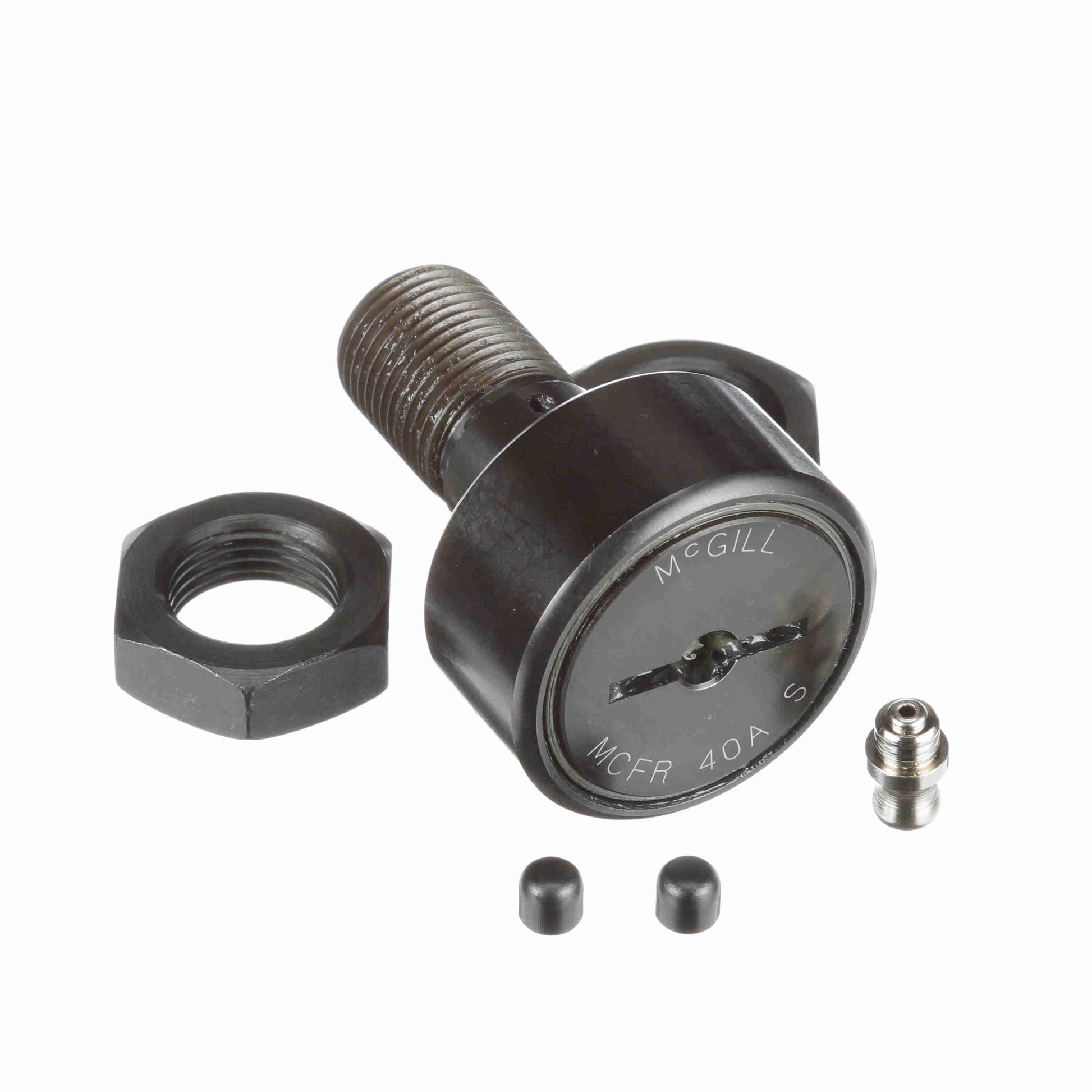

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 40A S
General Specifications
| UPC: | 726166021641 | Weight: | 0.66 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 2.4 Inches | Country of Origin: | China |
Dimensions
| Threads: | M18x1.5 | Stud Length - mm: | 36.5 mm |
| Lubrication Fitting Size - Metric: | 6 | Stud Diameter - mm: | 18 mm |
| Oil Hole Diameter - mm: | 3 mm | Overall Length - mm: | 58 mm |
| Reamed Hole - mm: | 6 mm | Minimum Thread Length: | 20 |
| Oil Hole Center - mm: | 10 mm | Roller Diameter - mm: | 40 mm |
| Roller Width - mm: | 20 mm |
Technical Specifications
| O.D. Configuration: | Crowned | Limiting Speed: | 5,000 |
| Sealing: | Sealed | Rolling Element: | Needle Roller - Caged |
| Dynamic Radial Rating: | 2,999 | Adjustment: | None |
| Dynamic Track Roller Load Rating (N): | 13,340 N | Hex/Slot: | Screwdriver Slot |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 19,800 | Stud Type: | Standard Stud |
| Dynamic Load Rating - N: | 15,990 | Industry Standard: | JIS |
| Clamping Torque - Nm: | 85 | Platform: | CAMROL® |
| Static Load Rating: | 19,800 | Roller Shape: | Crowned |
| Tolerance Class: | P0 Equivalent |
